Eagle
>>
1993
>>
Vision ESi
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Alternator & Regulator
>>
Wiring Diagram
Alternator & Regulator: Wiring Diagram

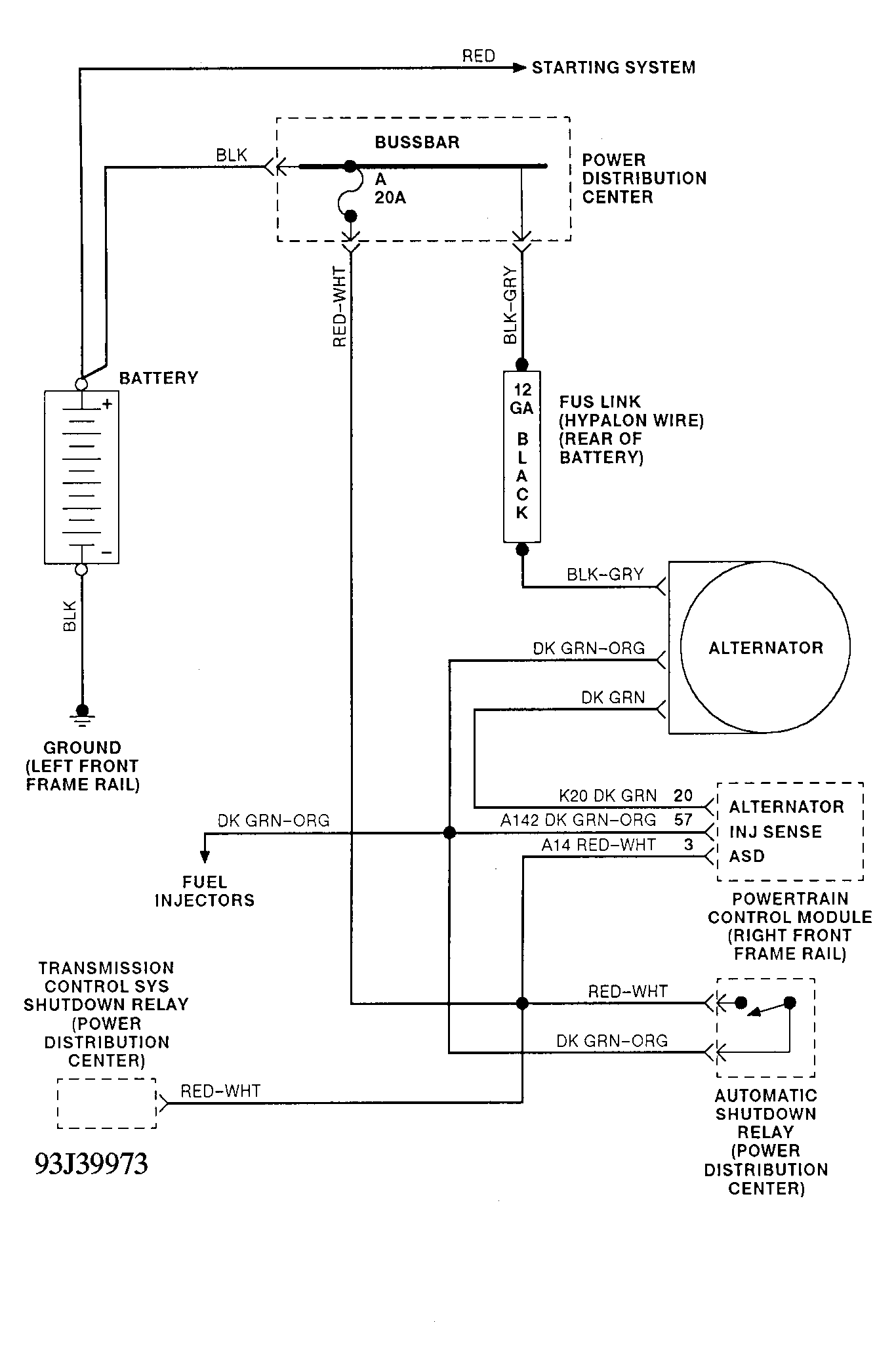

Fig 1: Alternator & Regulator System Wiring Diagram
