Connector Identification: Radio

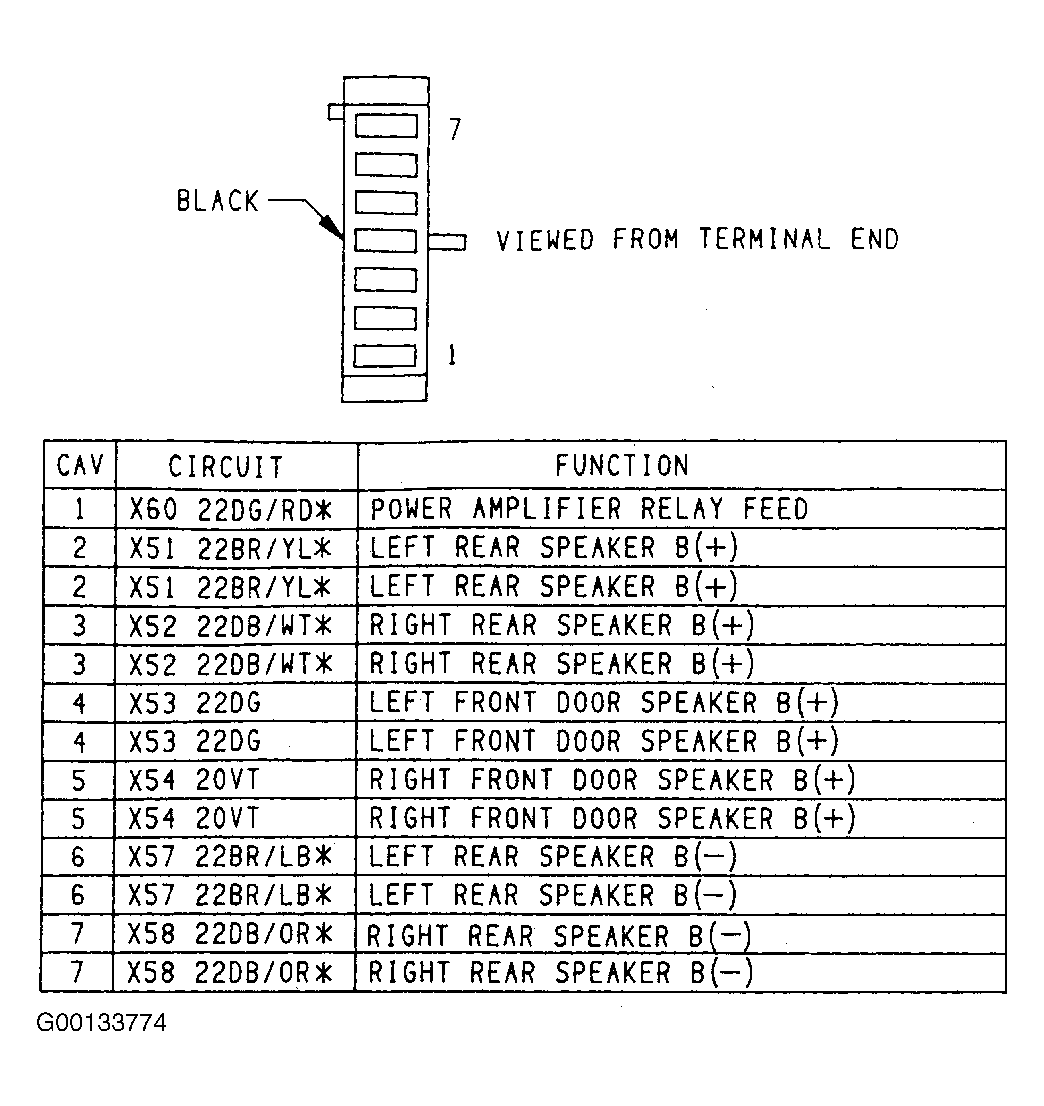

Fig 1: Identifying Radio Connector No. 1

G00133774

Courtesy of CHRYSLER CORP.

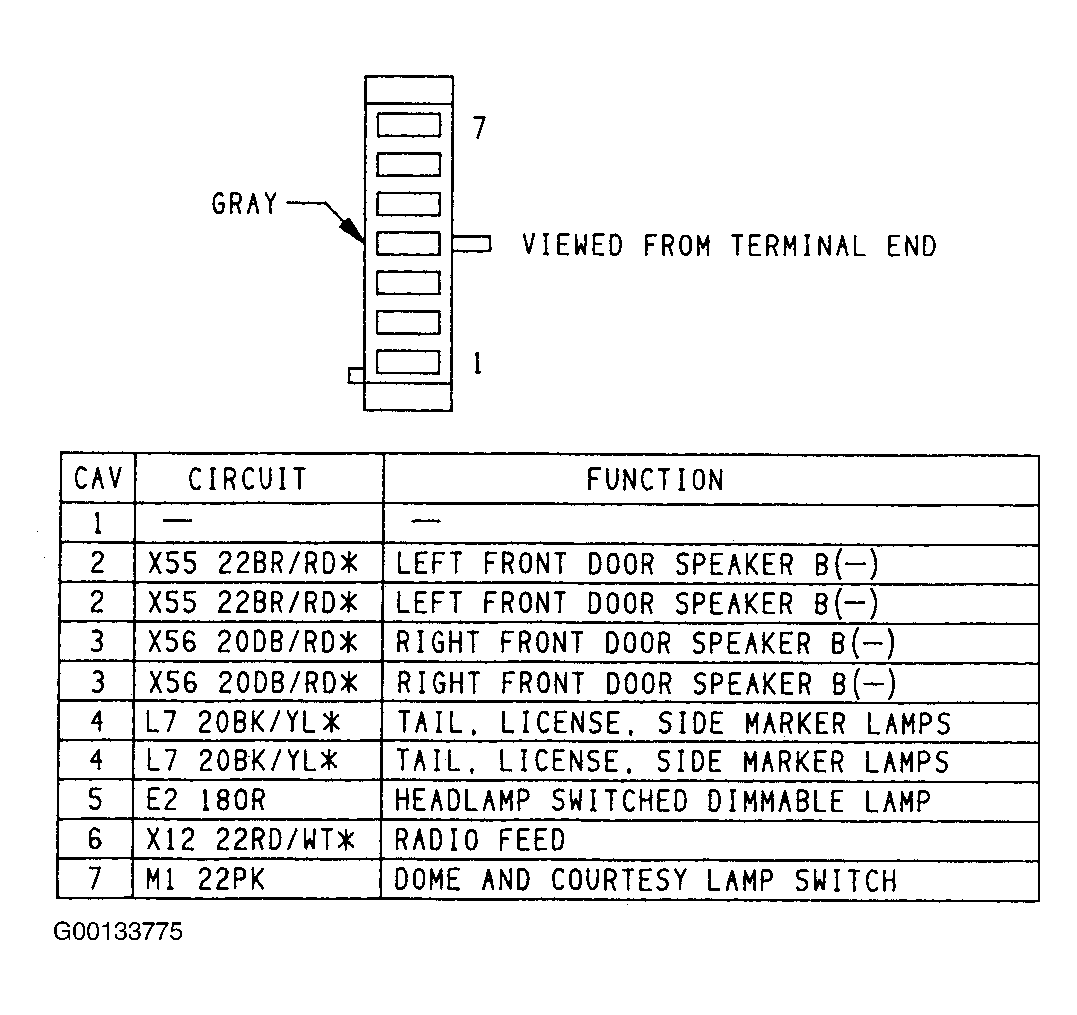

Fig 2: Identifying Radio Connector No. 2

G00133775

Courtesy of CHRYSLER CORP.
