Connector Identification: Amplifier

Fig 1: Identifying Infinity Remote Amplifier Connector Terminals
G00133773Courtesy of CHRYSLER CORP.
Fig 2: Identifying RS Amplifier Connector No. 1
G00133776Courtesy of CHRYSLER CORP.

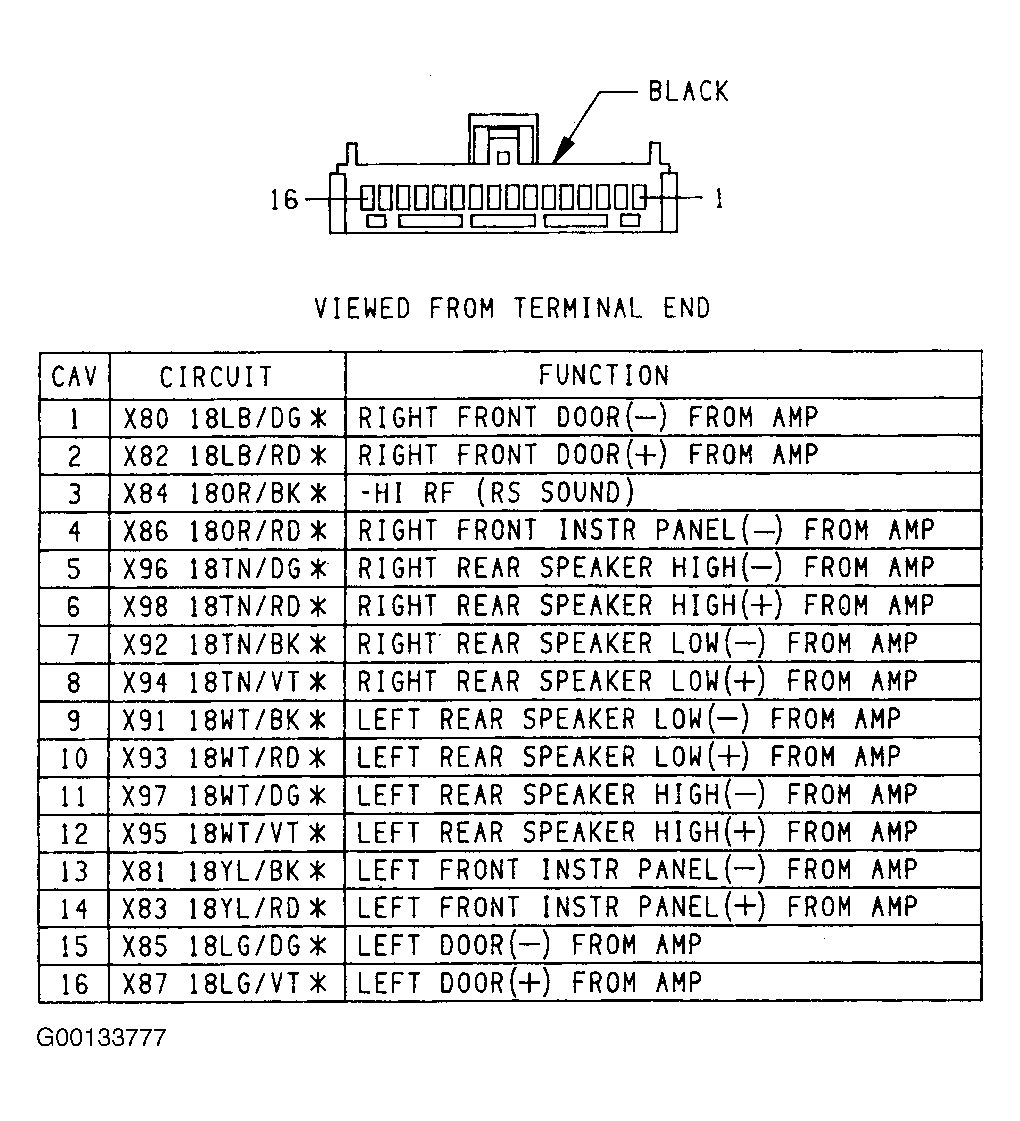

Fig 3: Identifying RS Amplifier Connector No. 2
G00133777Courtesy of CHRYSLER CORP.

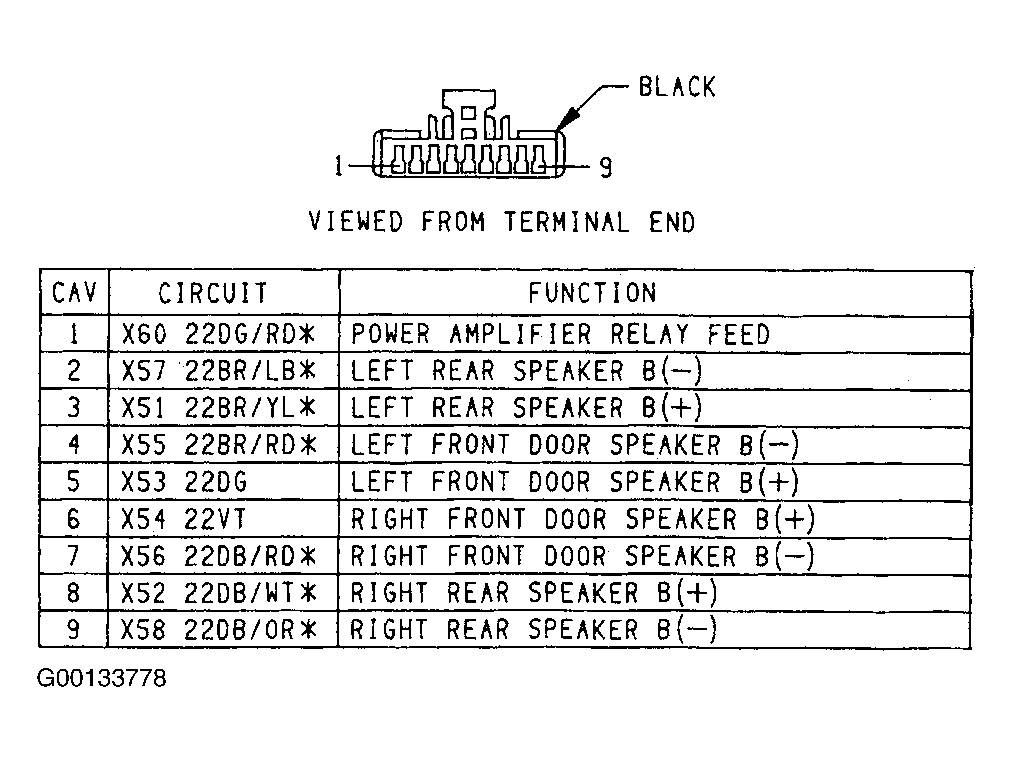

Fig 4: Identifying RS Amplifier Connector No. 3
G00133778Courtesy of CHRYSLER CORP.
