Optical Distributor

Used only on 3.0L V6 engines, optical distributor provides engine speed and crankshaft position signals to PCM. See Fig 1 . PCM uses this information to control fuel injection, ignition timing and idle speed.

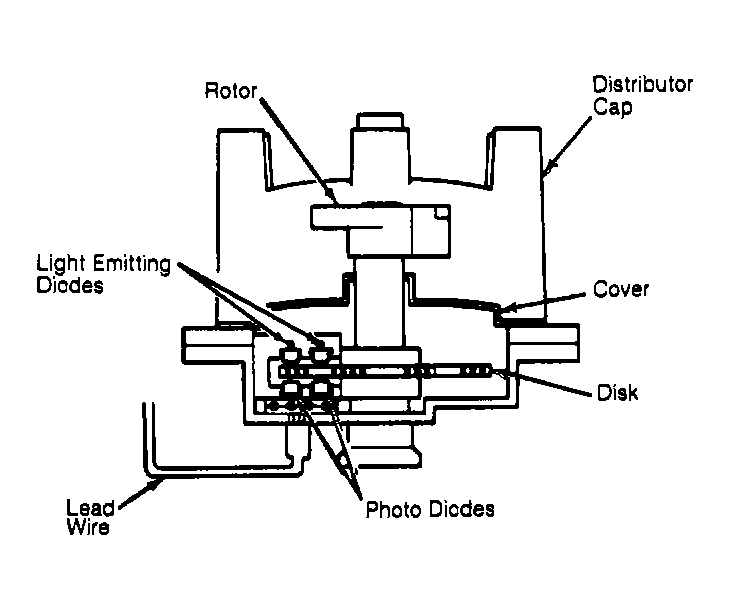

Fig 1: Cross-Sectional View Of Optical Distributor (3.0L)

Courtesy of CHRYSLER CORP.
