Concorde, Intrepid & Vision

  1. Check batteries in transmitters. Operate power door lock switches to ensure relays and motors are functioning. Check that module has battery voltage at connector cavity No. 8 to fuse block fuse No. 13. Repair wiring as necessary.
  2. Check that module has ignition voltage at cavity No. 3 of the Blue connector from fuse No. 14. Repair wiring as necessary. Check that cavity No. 4 on Black connector is grounded to front center floor panel, driver side, of passive restraint bracket.
  3. Check that programming wire is properly grounded. This is cavity No. 5 of Black connector and cavity No. 4 of the Black traction control connector. If circuits are okay, replace remote keyless entry module.

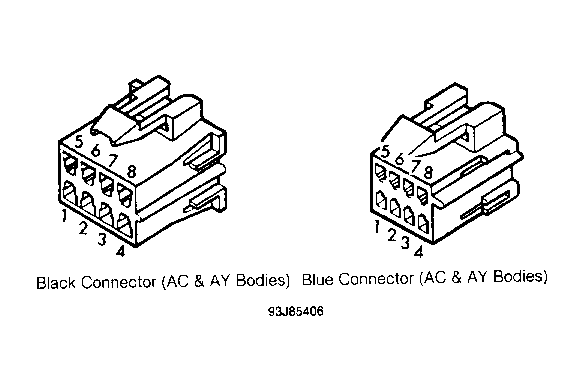

Fig 1: Keyless Entry System Connectors (AC & AY Bodies)
G93J85406Courtesy of CHRYSLER CORP.

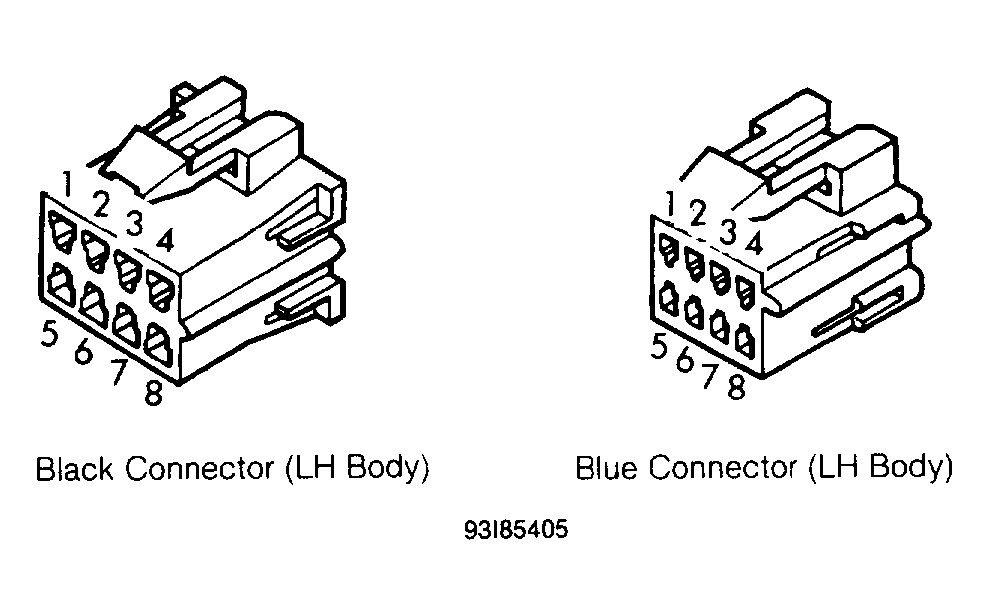

Fig 2: Keyless Entry System Connectors (LH Bodies)
G93I85405Courtesy of CHRYSLER CORP.
