Wiring Diagrams

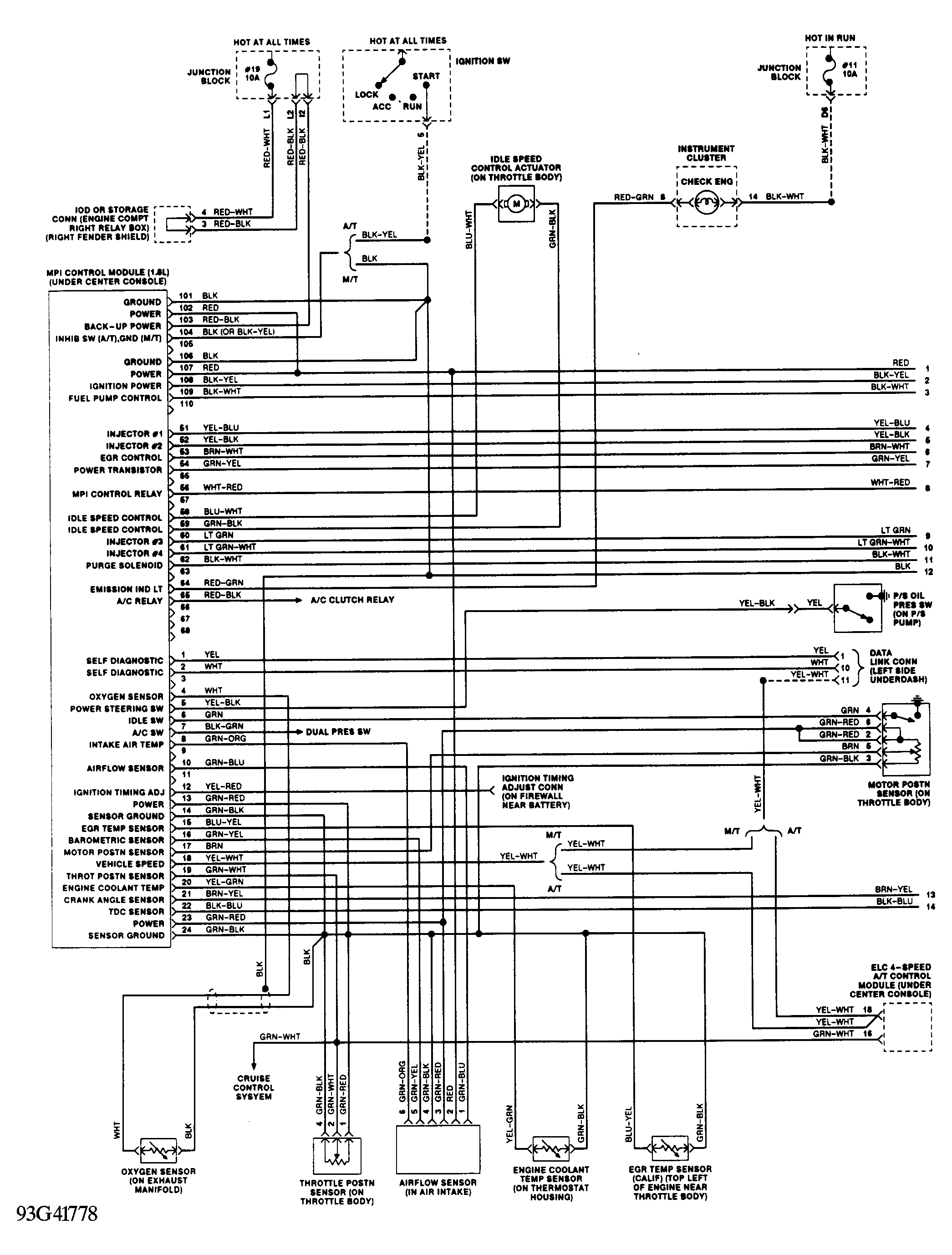

Fig 1: ECU Wiring Diagram (1 Of 2)

G93G41778

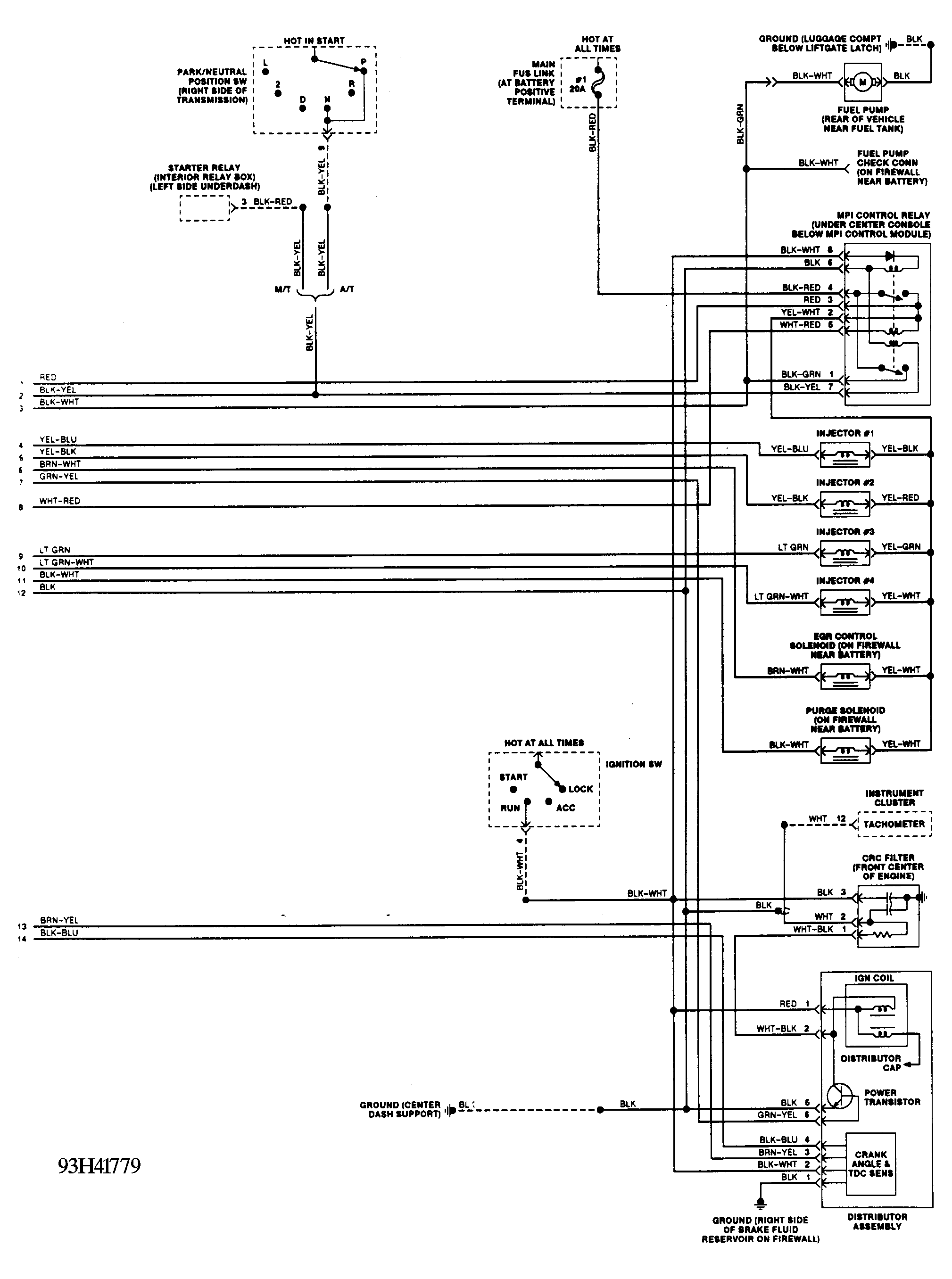

Fig 2: ECU Wiring Diagram (2 Of 2)

G93H41779
