Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | ||

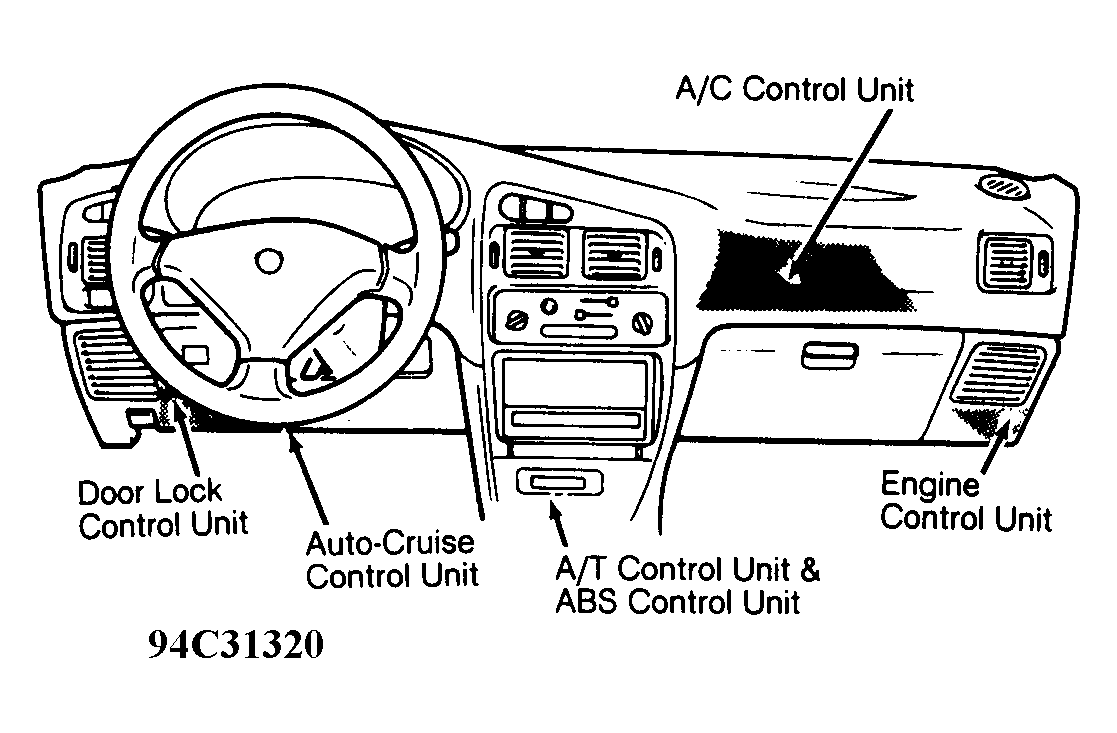

| View of Dash | Behind center console. See Figure . | |

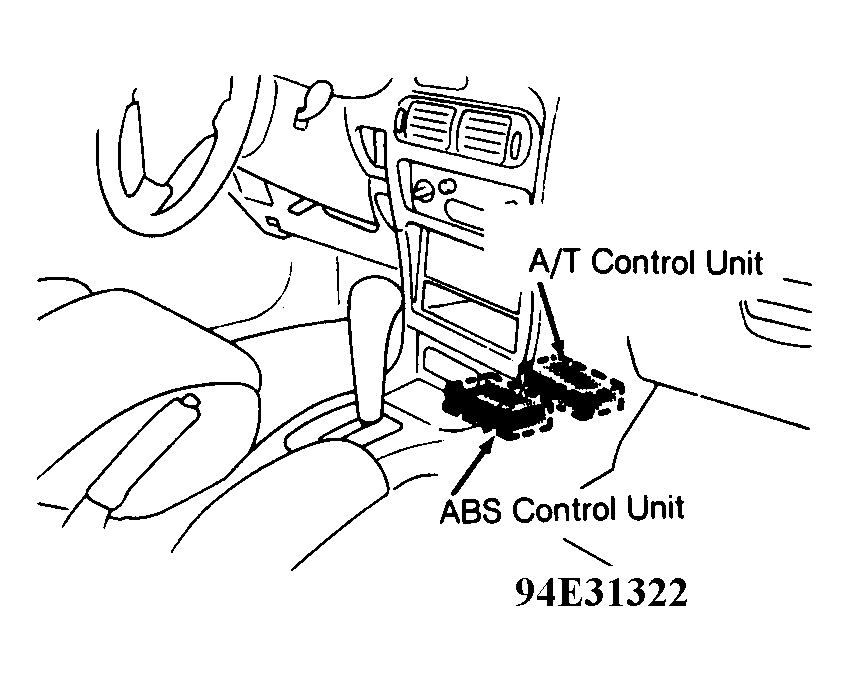

| View of Passenger Compartment | Behind center console. See Figure . | |
| Air Bag Control Unit (SRS) | Between front seats, behind parking brake lever. | |
| A/C Control Unit | Behind glove box. See Figure . | |
| A/T Control Unit (1.8L) | ||
| View of Dash | Behind center console. See Figure . | |
| View of Passenger Compartment | Behind center console. See Figure . | |
| Auto-Cruise Control Unit | ||
| View of Dash | Under left side of dash, next to fuse/relay block. See Figure . | |
| View of Relay | Under left side of dash, next to fuse/relay block. See Figure . | |
| Automatic Seat Belt Control Unit | Between front seats, behind parking brake lever. | |
| Daytime Running Light Control Unit | On bracket, near power steering fluid reservoir. | |
| Door Lock Control Unit | Behind left side of dash. See Figure . | |
| Engine Control Unit | Under right side of dash, above kickpanel. See Figure . | |
| Keyless Entry Control Unit | Behind left quarter panel. | |
