Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block
Engine Compartment On right front inner fender panel, behind battery & on left front inner fender panel, near power steering fluid reservoir.

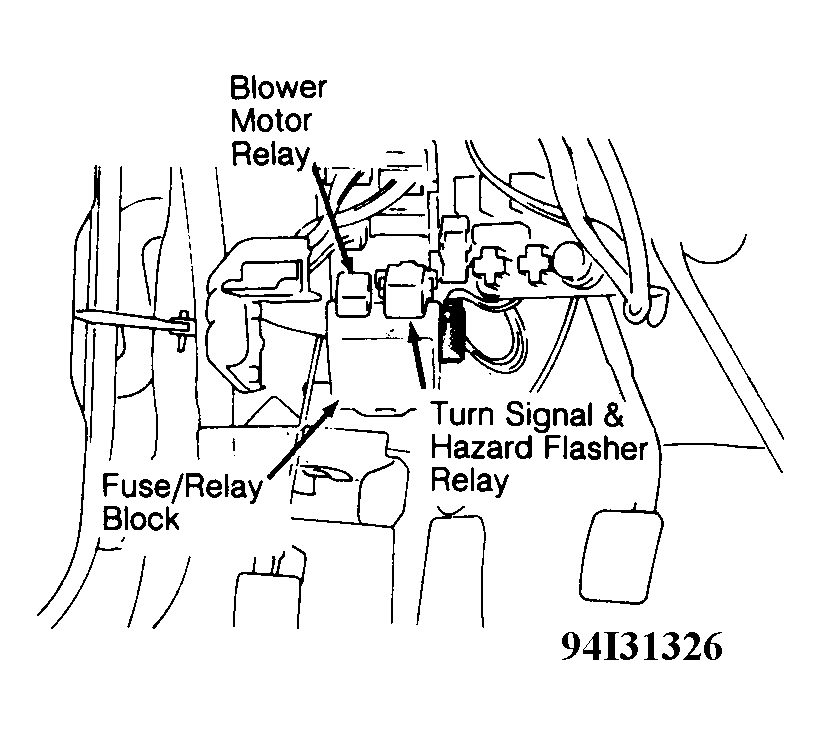

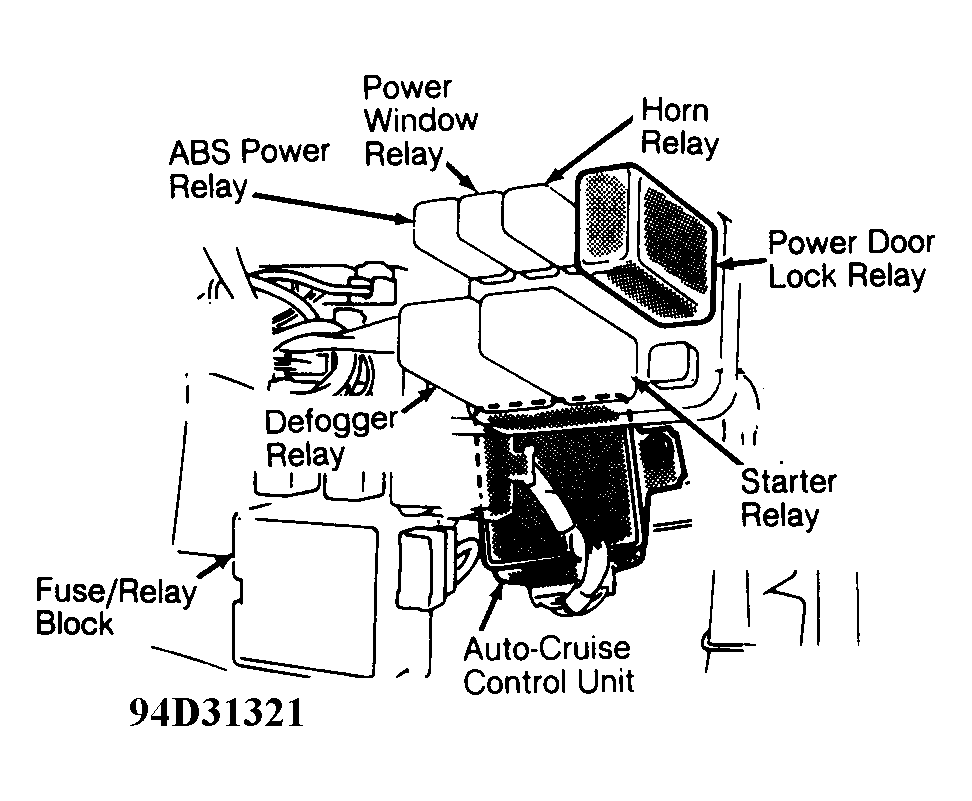

Passenger Compartment Under left side of dash. See Figure & Figure .
Fusible Links On battery positive terminal and in engine bay fuse/relay block.
Relay Block Behind left side of dash. See Figure .
