Wiring Diagrams

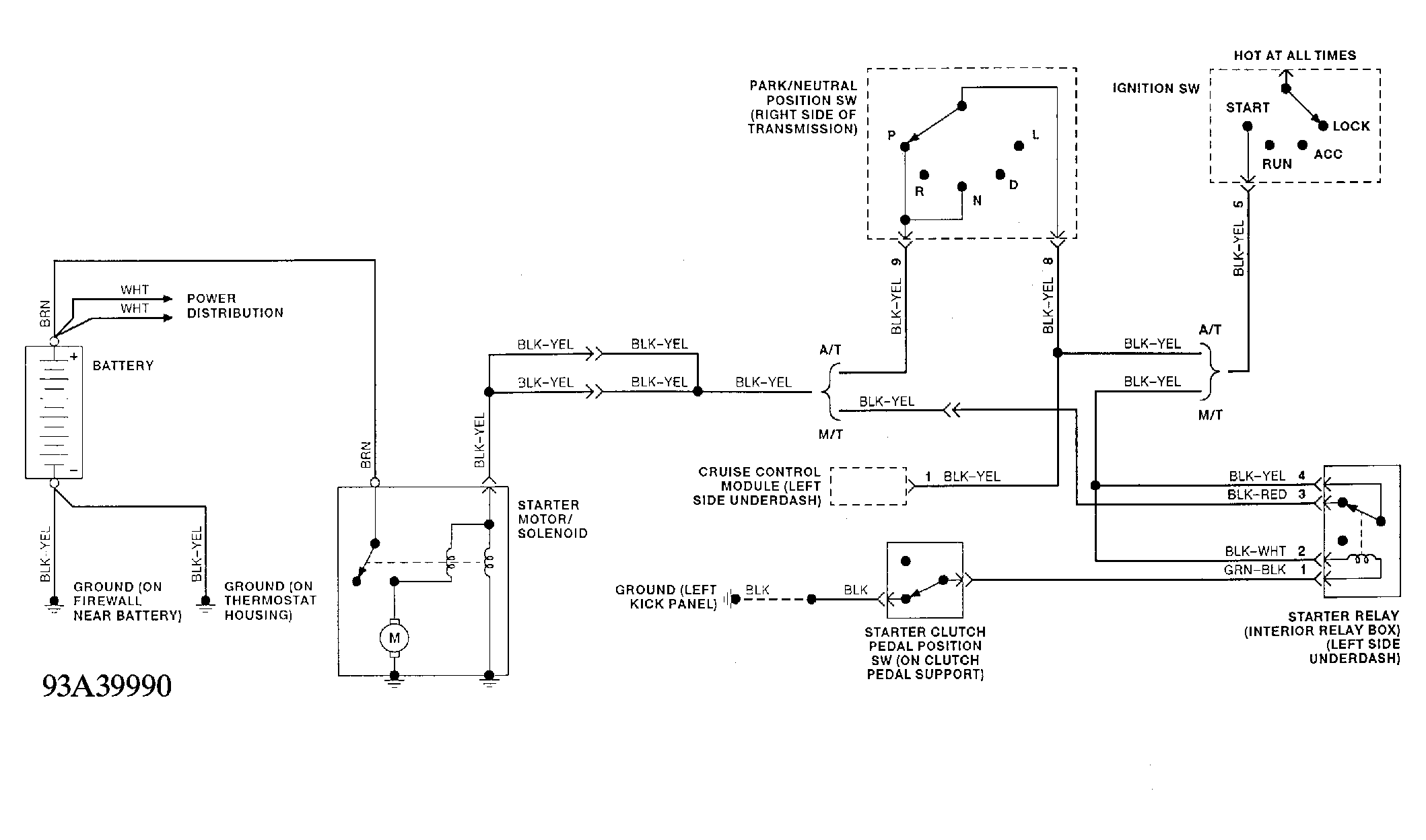

Fig 1: Starter System Wiring Diagram (Laser & Talon)

G93A39990

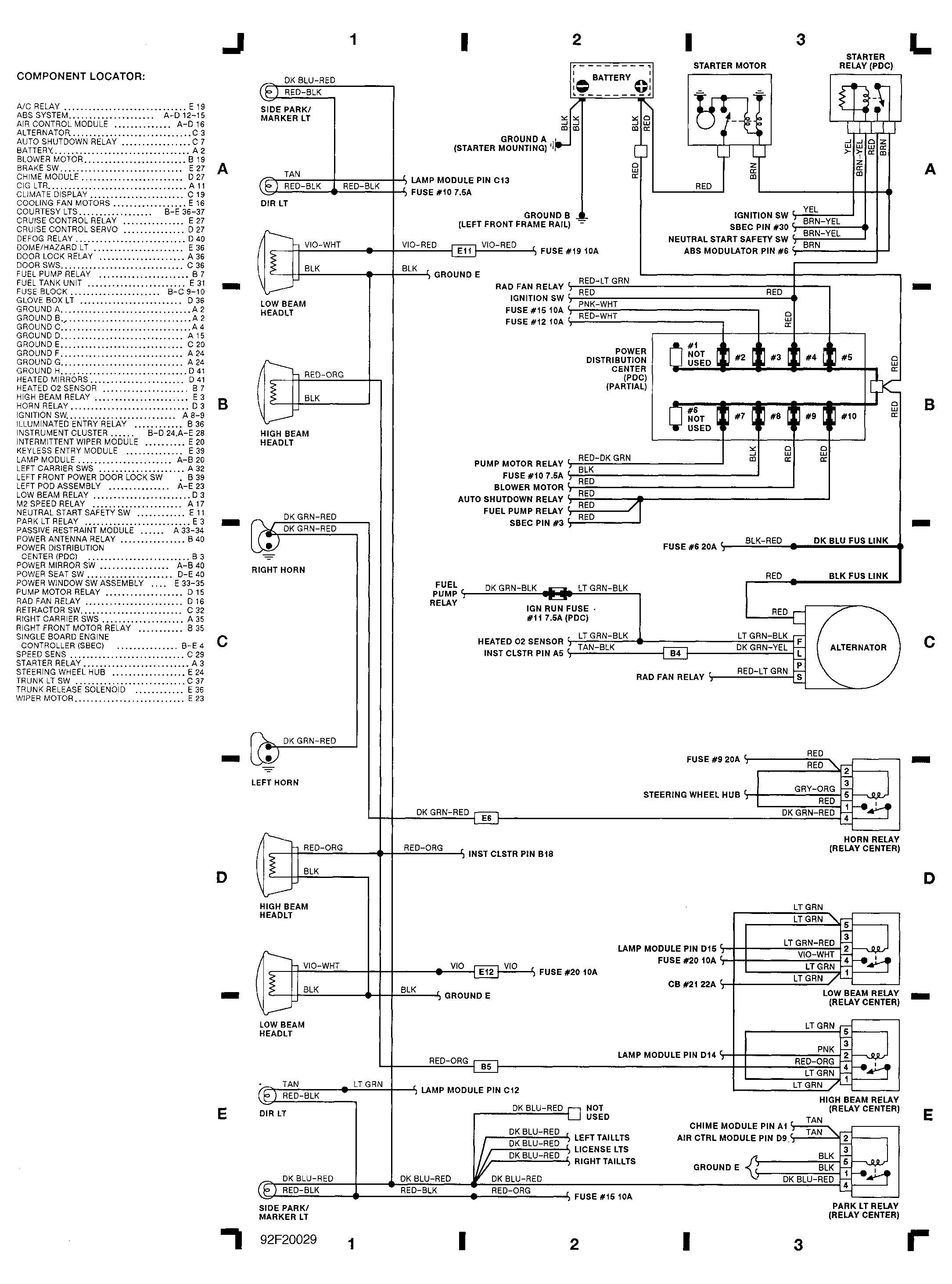

Fig 2: Engine Compartment Wiring Diagram (Monaco & Premier)

G92F20029
