Wiring Diagrams

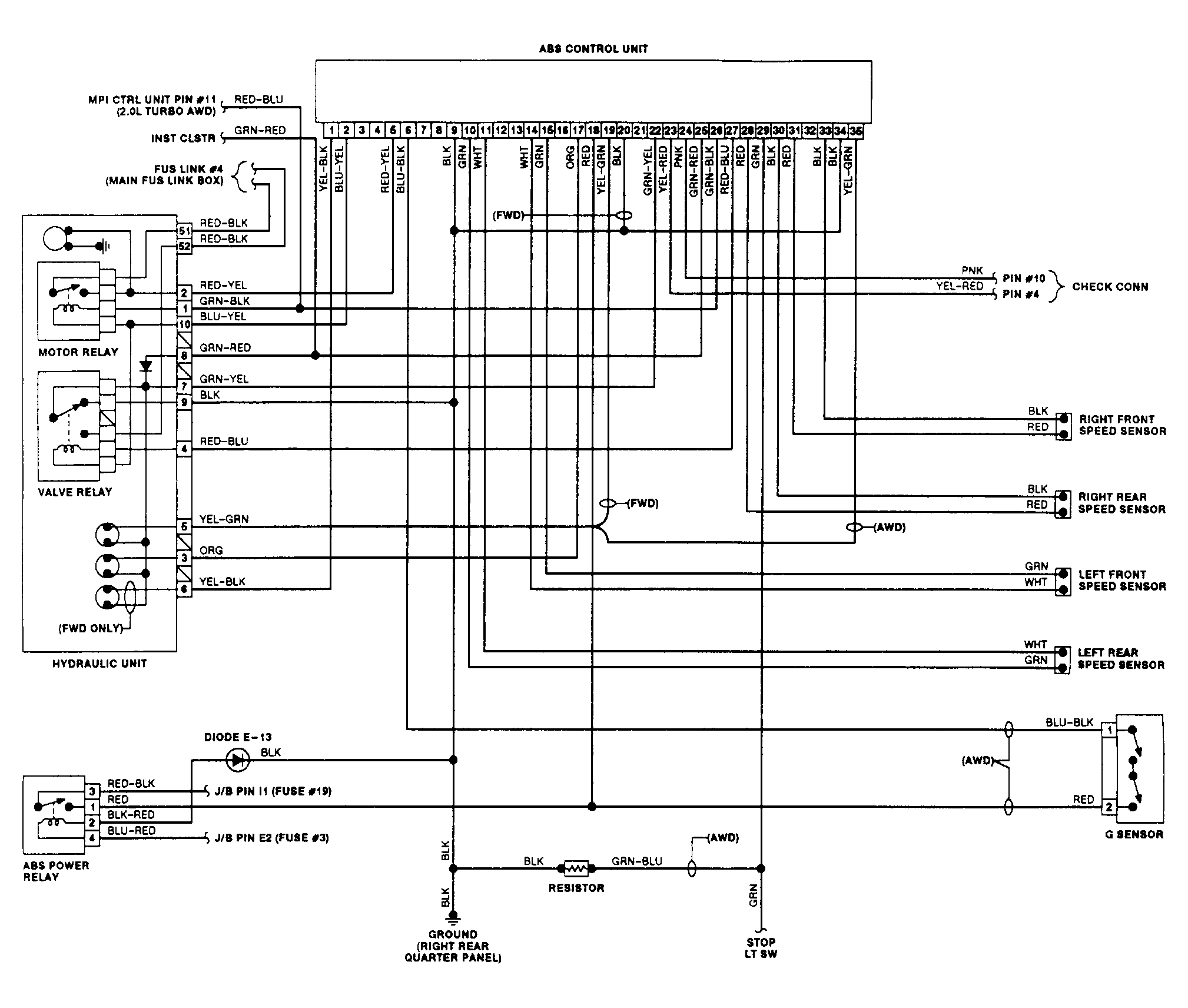

Fig 1: Anti-Lock Brake System Wiring Diagram (Laser & Talon)

G92H04600

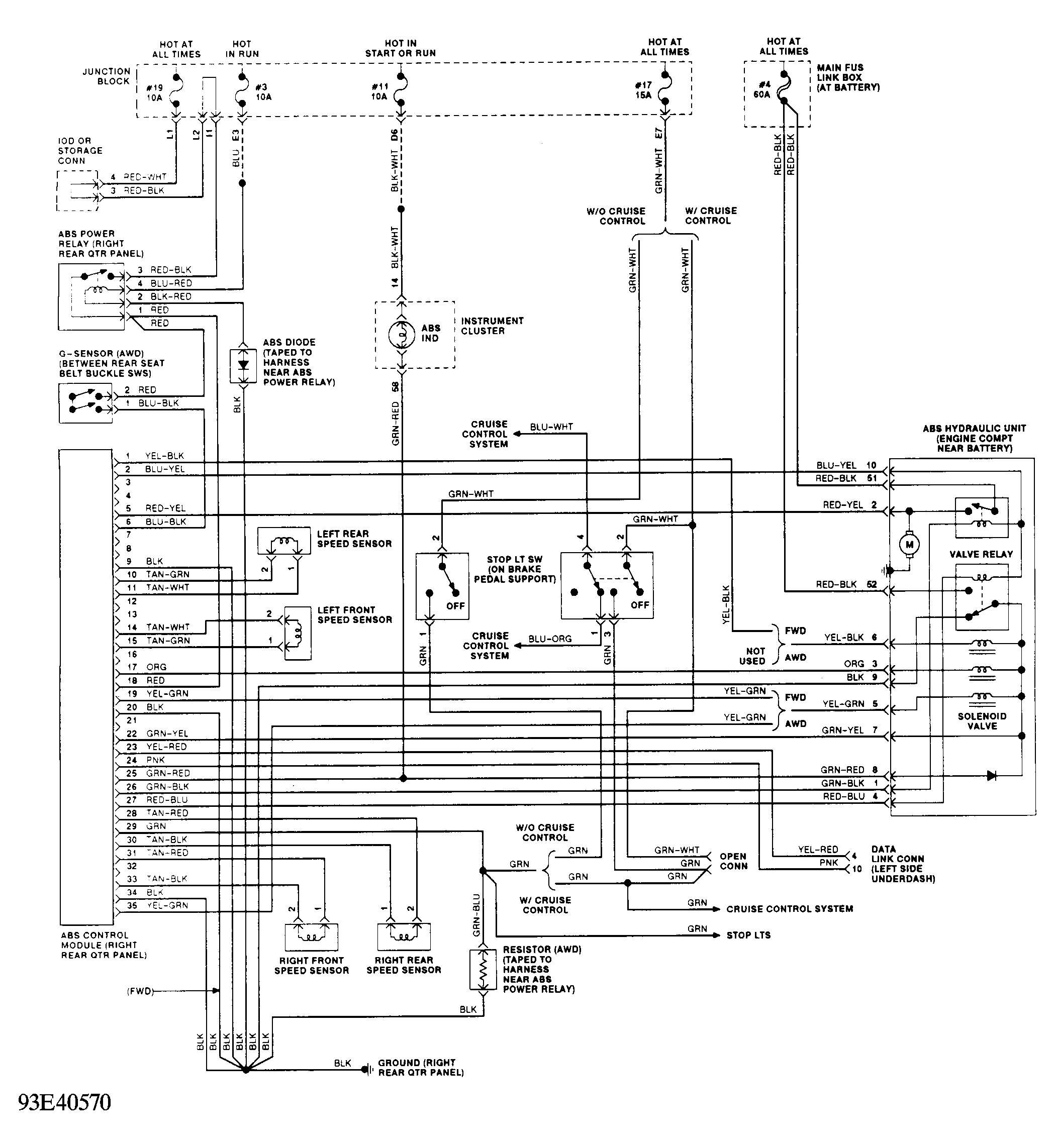

Fig 2: Anti-Lock Brake System Wiring Diagram (1993 Laser & Talon)

G93E40570
