Frame Contact Hoist

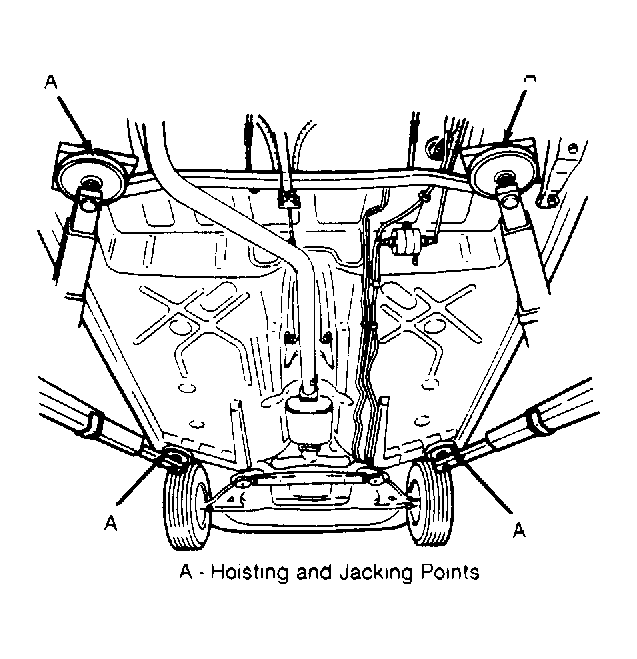

Frame contact hoist must be equipped with proper adapters to support vehicle in correct locations. On Monaco and Premier, raise vehicle using swiveling arm or drive-on hoist. If using swiveling arm hoist, position lifting pads evenly on subframe rails. Hoist must be equipped with proper adapters so vehicle will be supported at marked points. See Figure.
