1992
>>
Talon Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 2.0L
>>
Wiring Diagrams
Wiring Diagrams

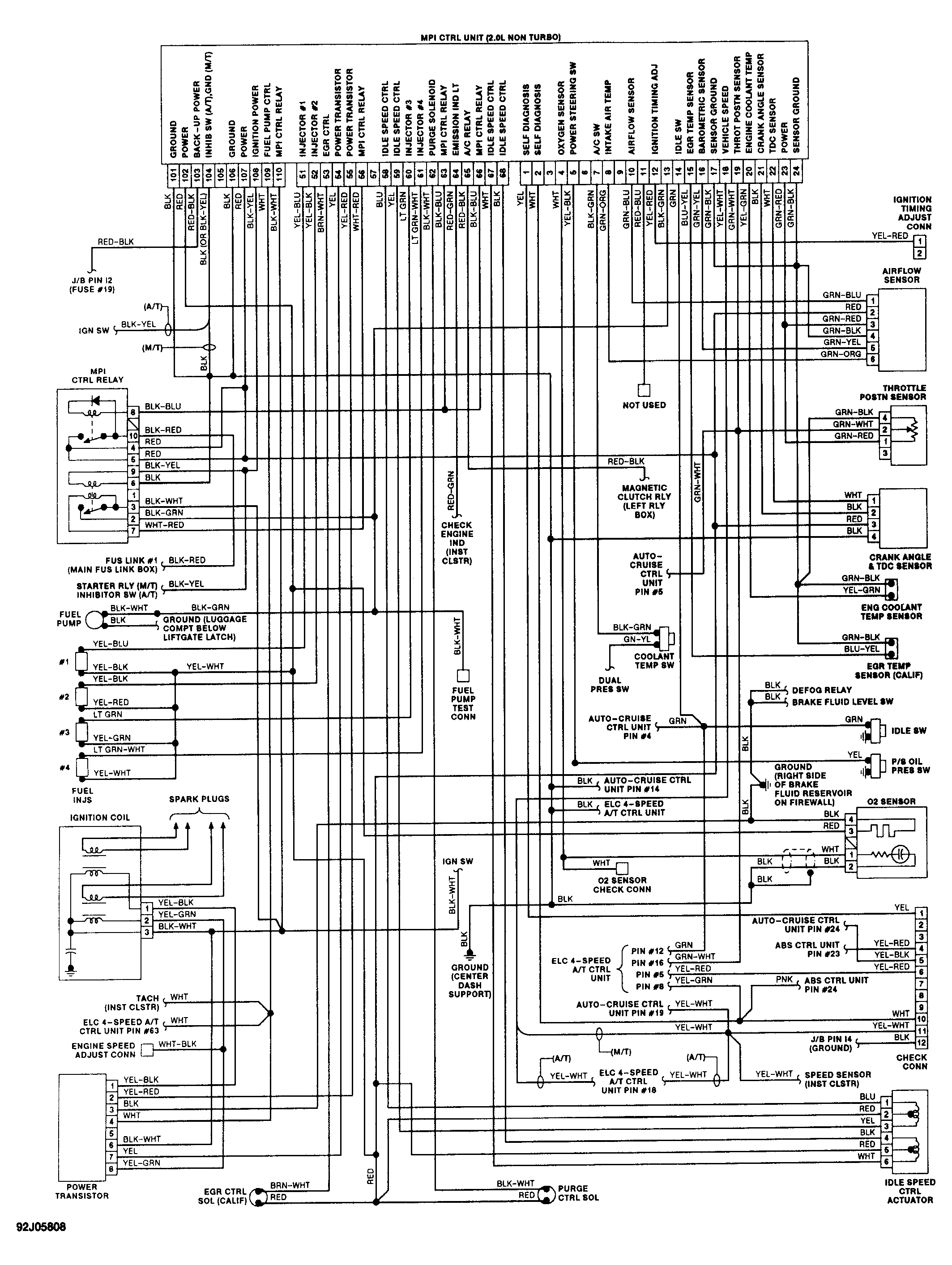

Fig 1: Wiring Diagram (Laser & Talon - 2.0L PFI)

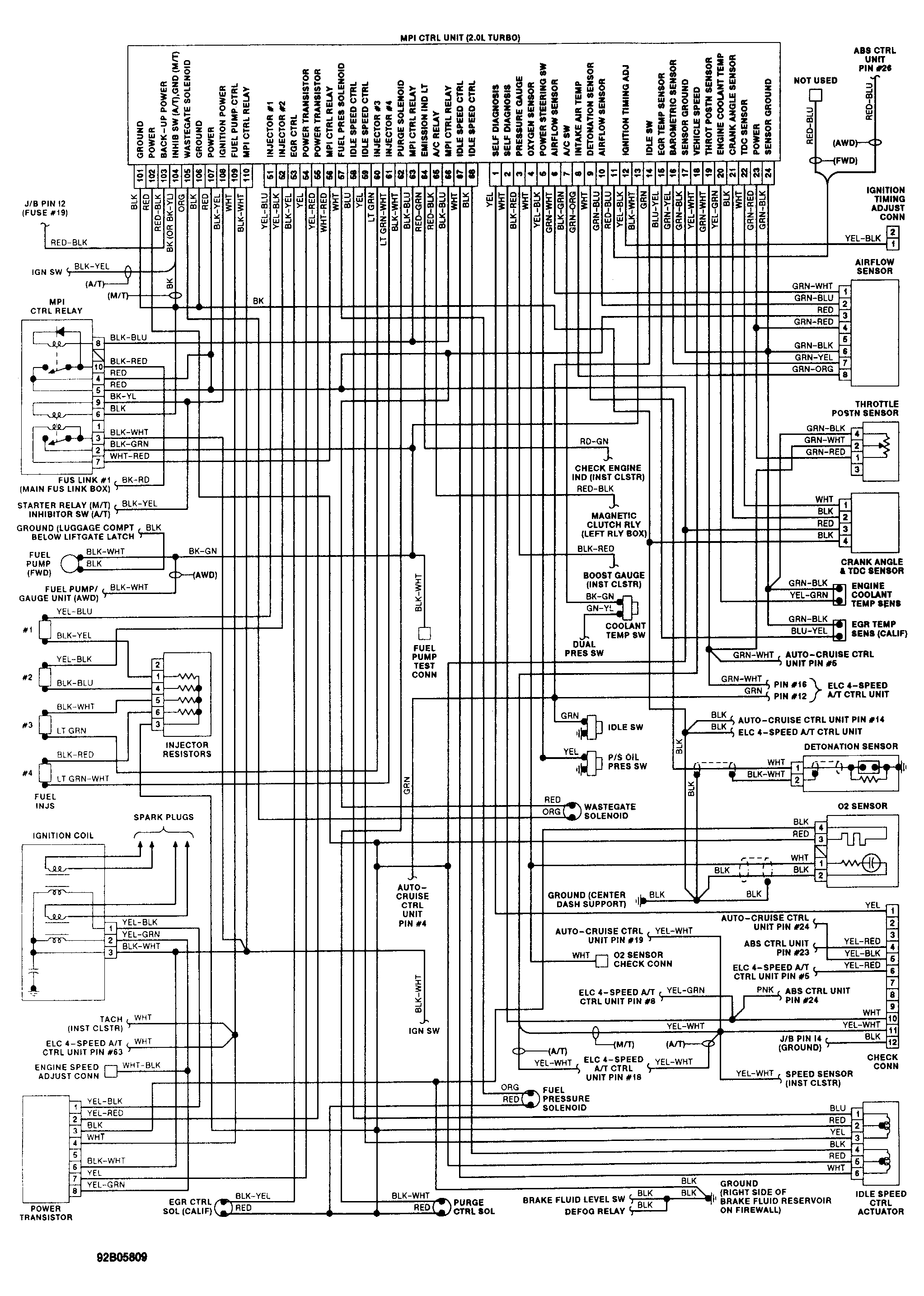

Fig 2: Wiring Diagram (Laser & Talon - 2.0L Turbo)
