Component Tests: Notes

NOTE: For test procedure(s) refer to illustration. See Figure -Figure .
AUTOMATIC SEAT BELT COMPONENT TESTS

Test (1) Figure

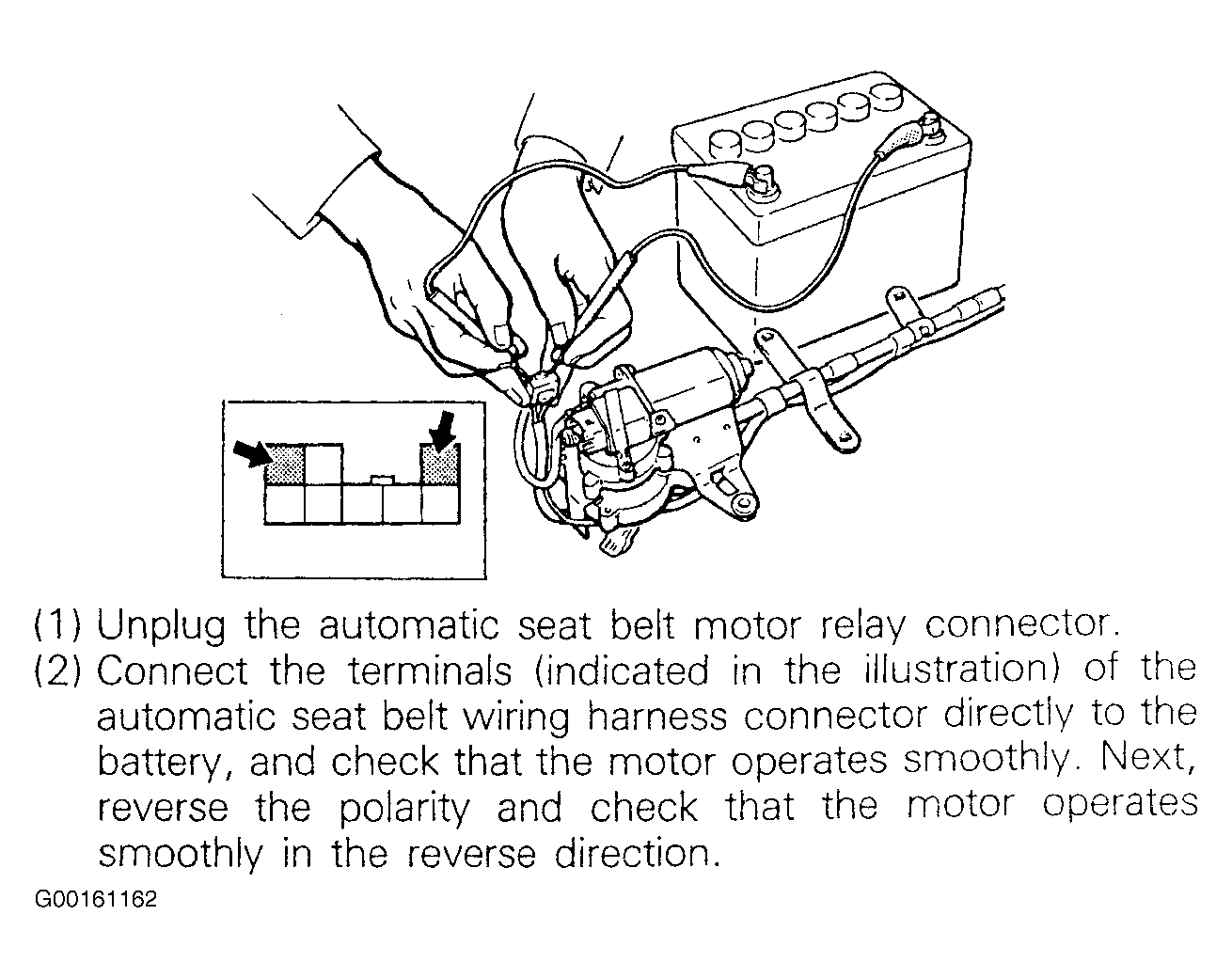

Automatic Seat Belt Motor Relay Figure
Buckle Switch Figure
Buzzer Figure
Door Latch Switch Figure
Fasten Switch Figure

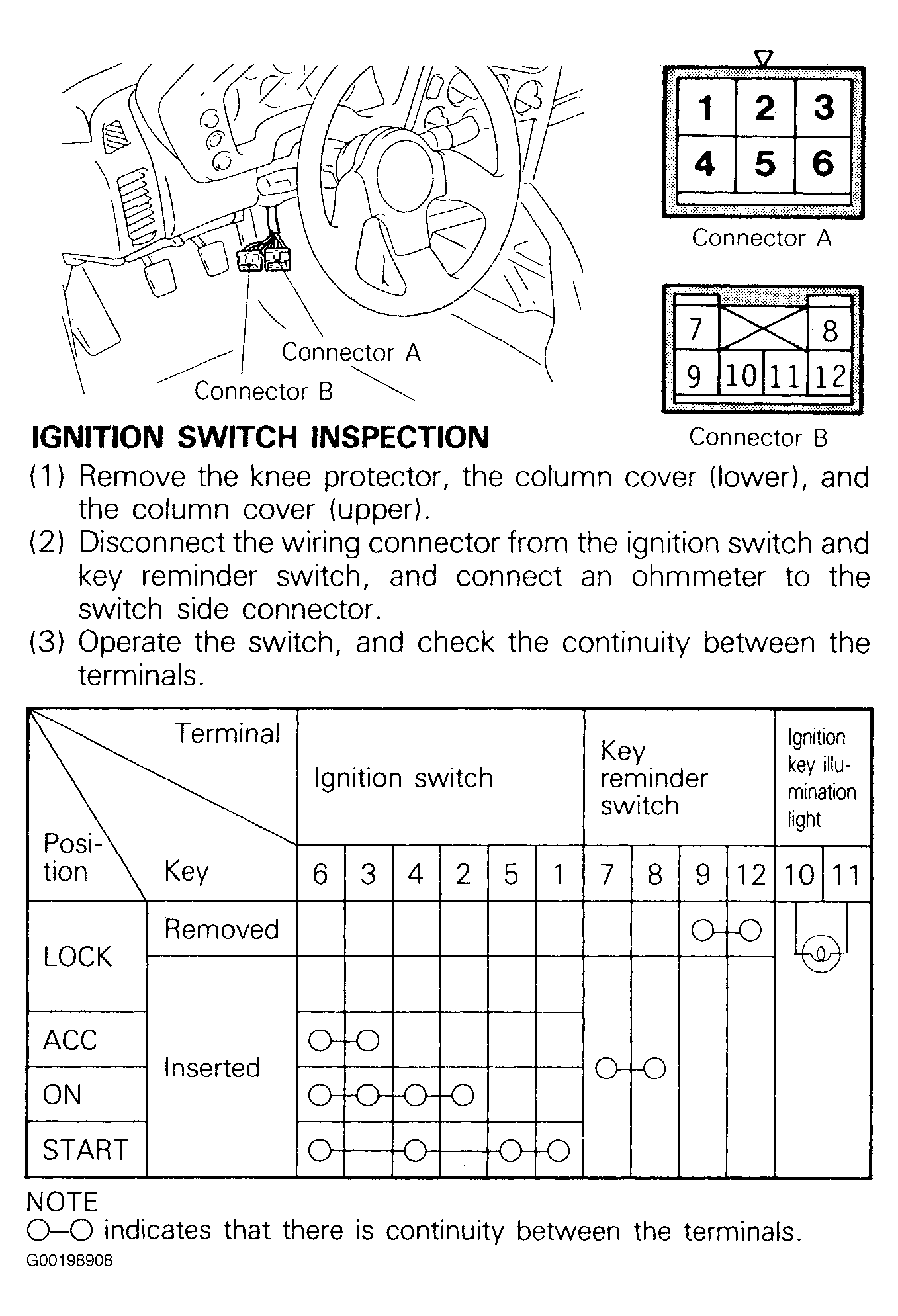

Key Reminder Switch Figure

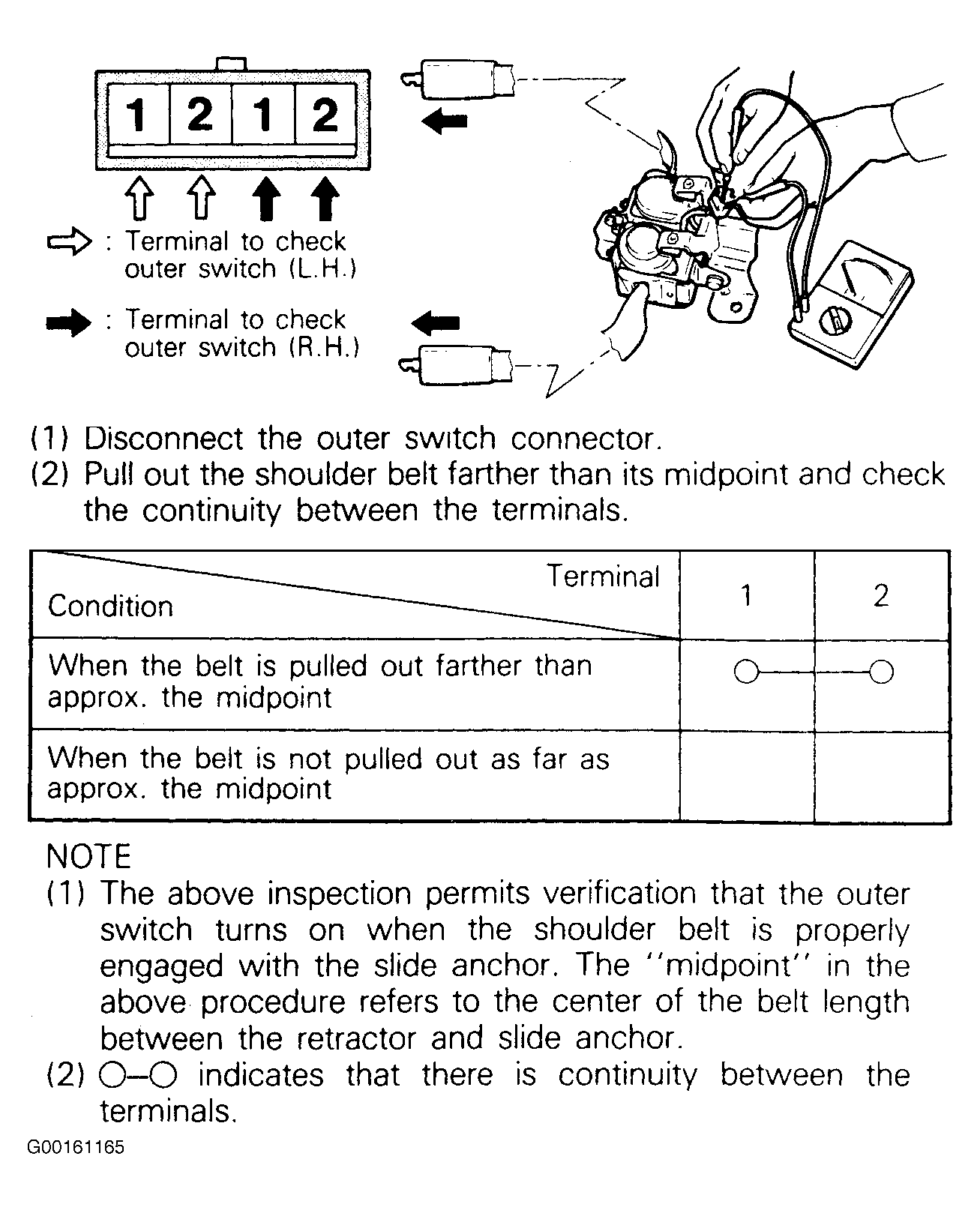

Outer Switch Circuit Figure

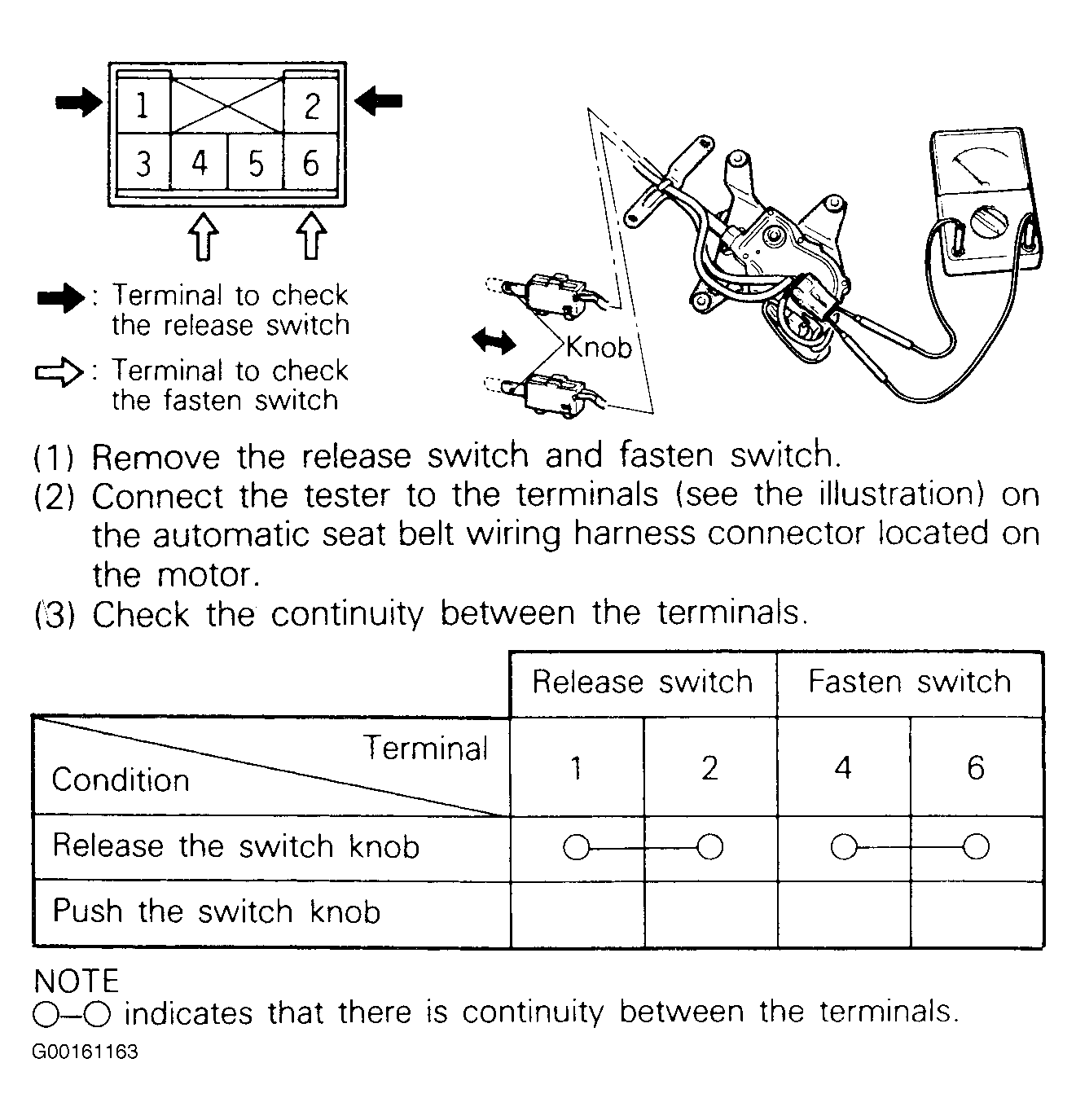

Release Switch Figure
Shoulder Belt Motor Figure
(1) Each figure contains the diagnostic procedure for each component indicated.
