Home >> Eagle >> 1992 >> Talon Base, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Power Door Locks >> Component Tests >> Notes

Component Tests: Notes

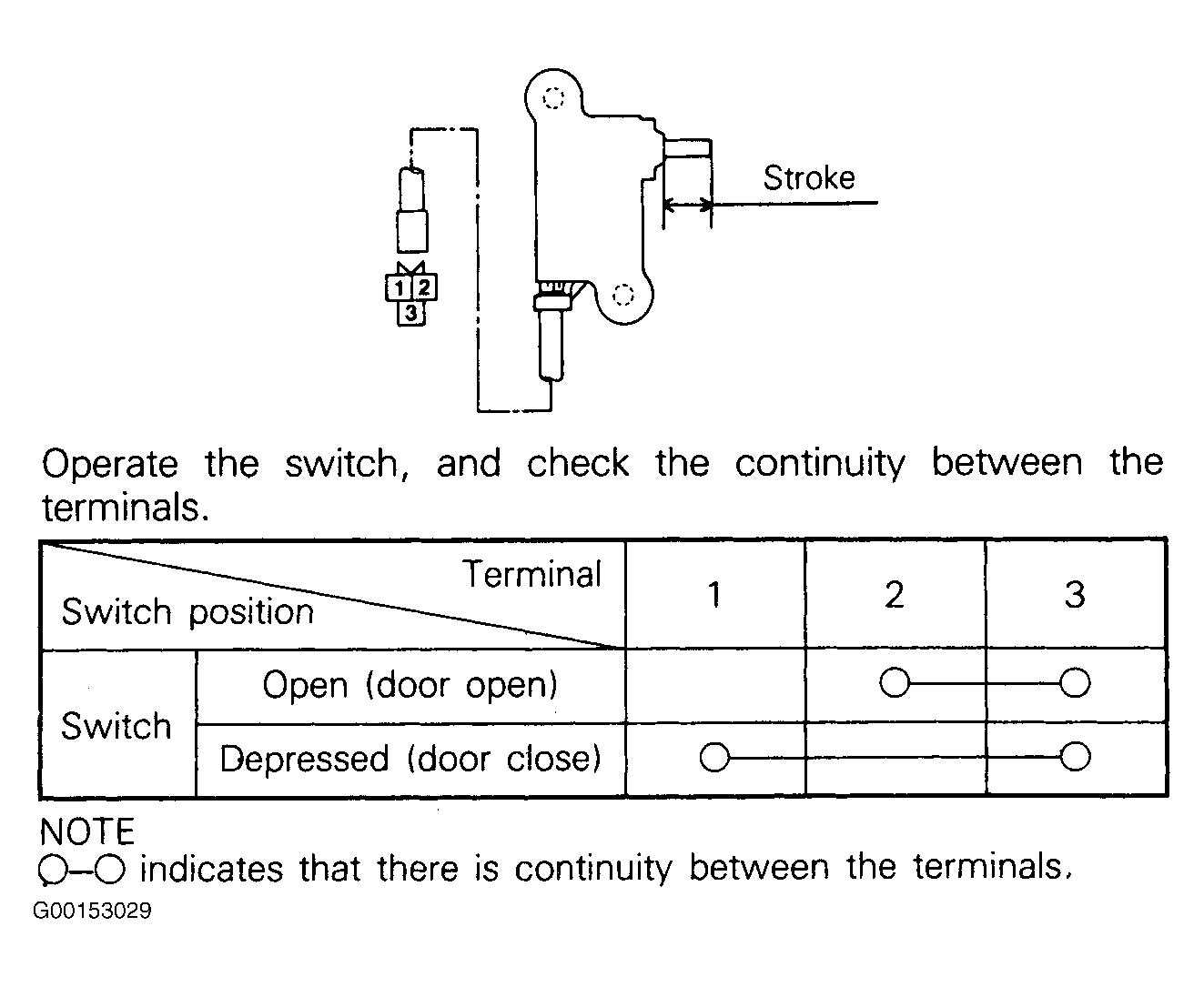

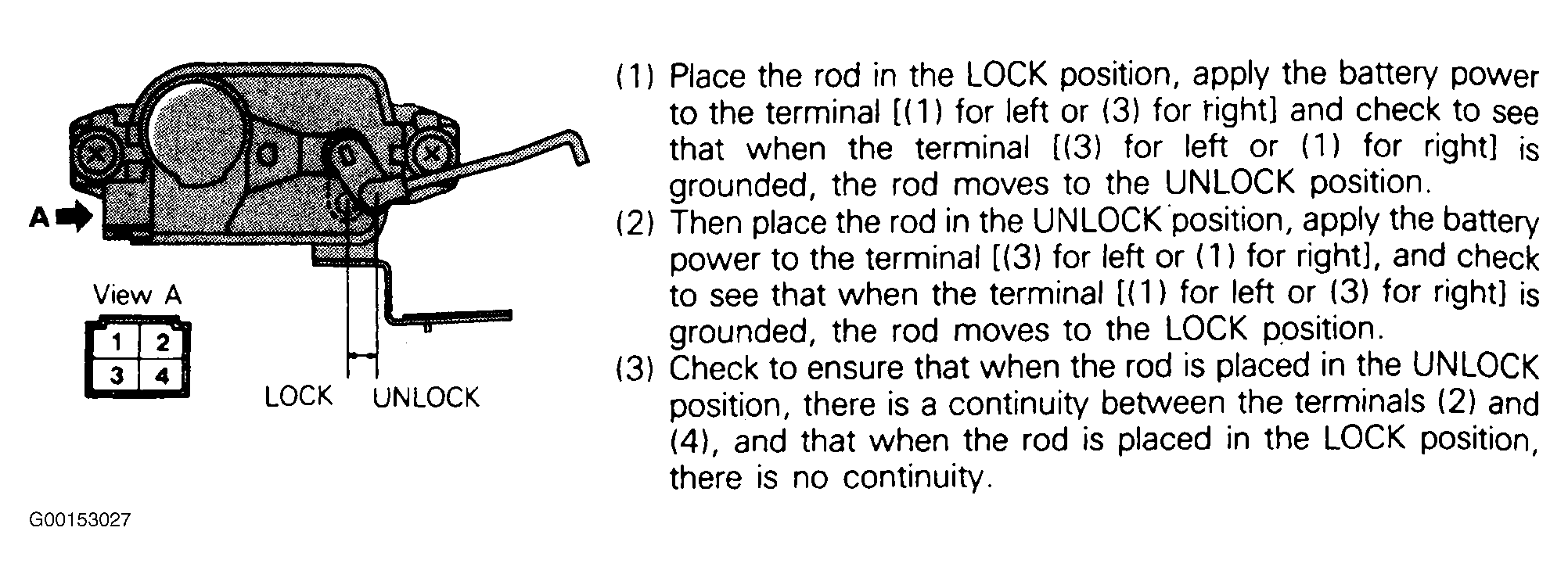

NOTE: For test procedure(s) refer to illustration. See Figure -Figure .
