Power Window Relay Test

Remove power window relay from fuse/relay block. Use illustrations and chart to assist in testing relay. See Figure and Fig 1 .

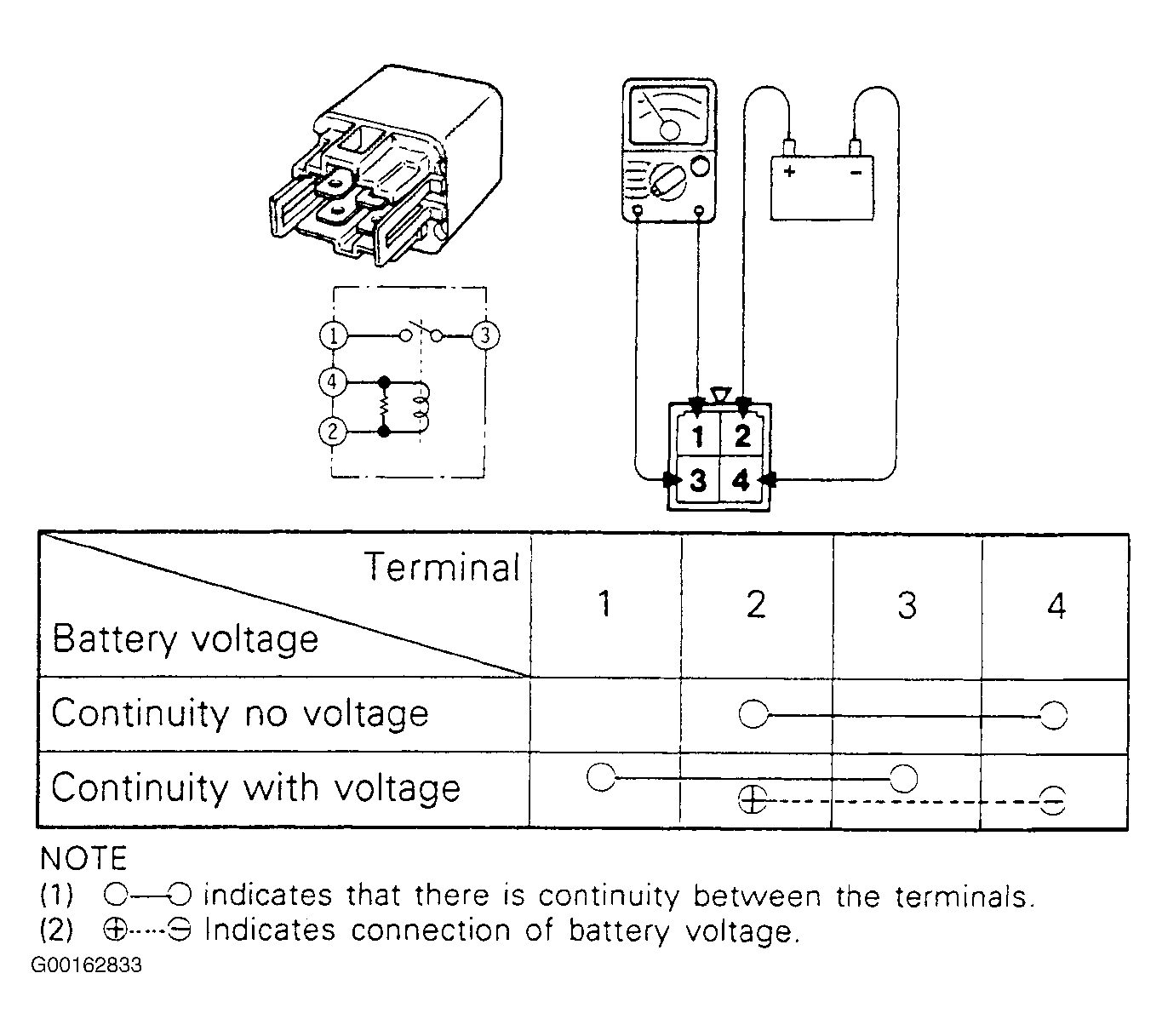

Fig 1: Identifying Power Window Relay Terminals & Continuity Chart

Courtesy of CHRYSLER CORP.
