Wiring Diagrams: Eclipse

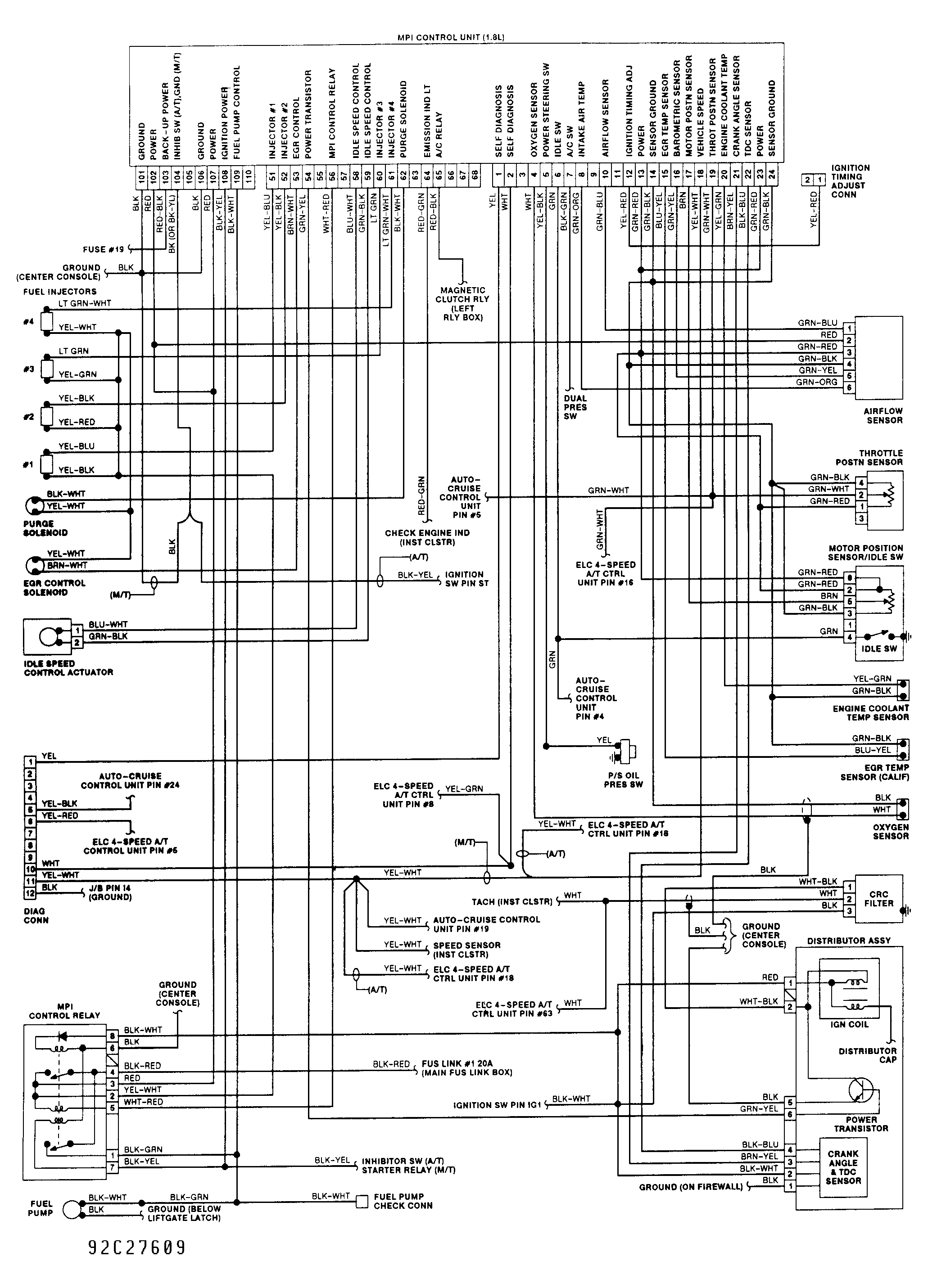

Fig 1: Wiring Diagram (Eclipse 1.8L)

G92C27609

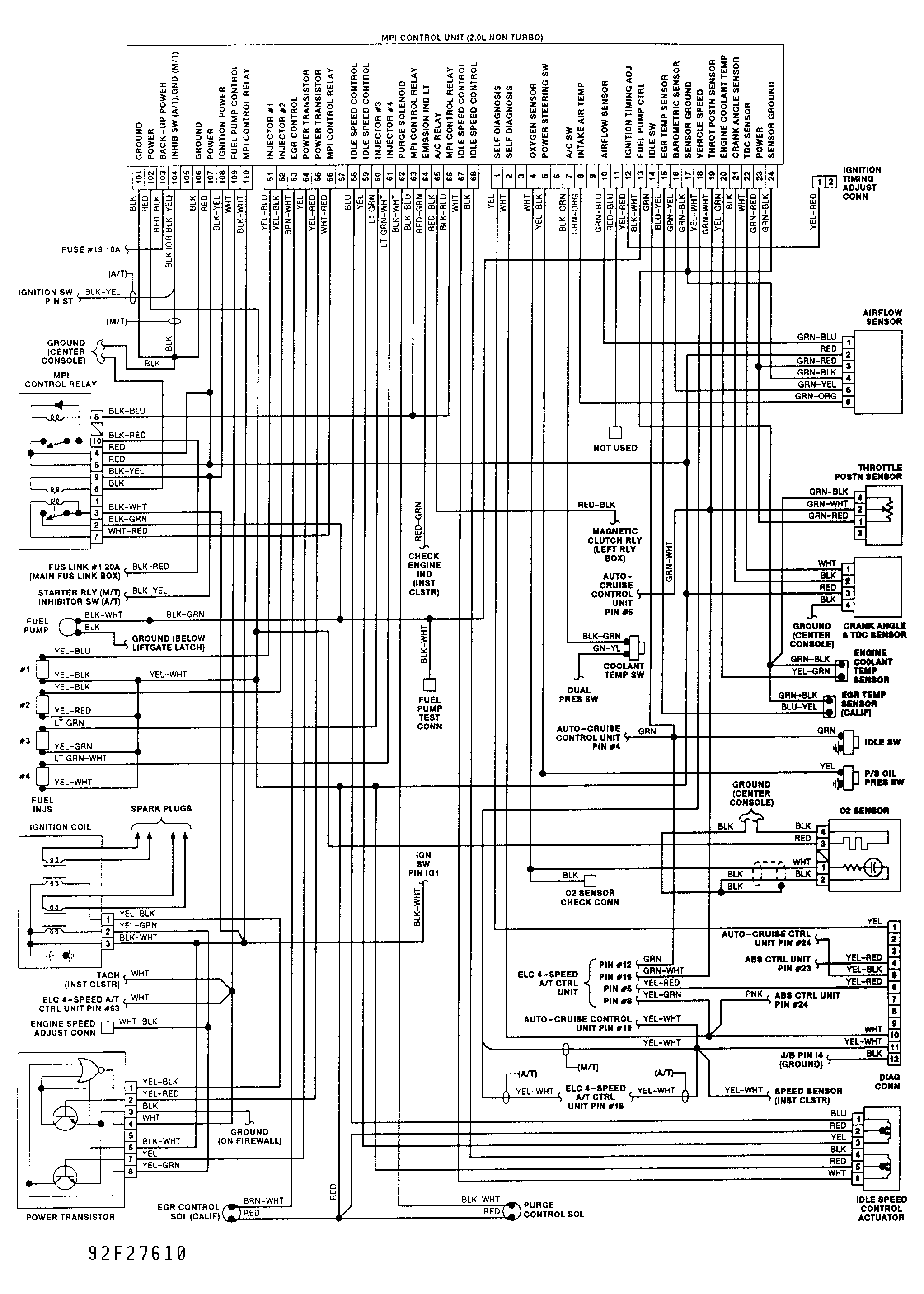

Fig 2: Wiring Diagram (Eclipse 2.0L)

G92F27610

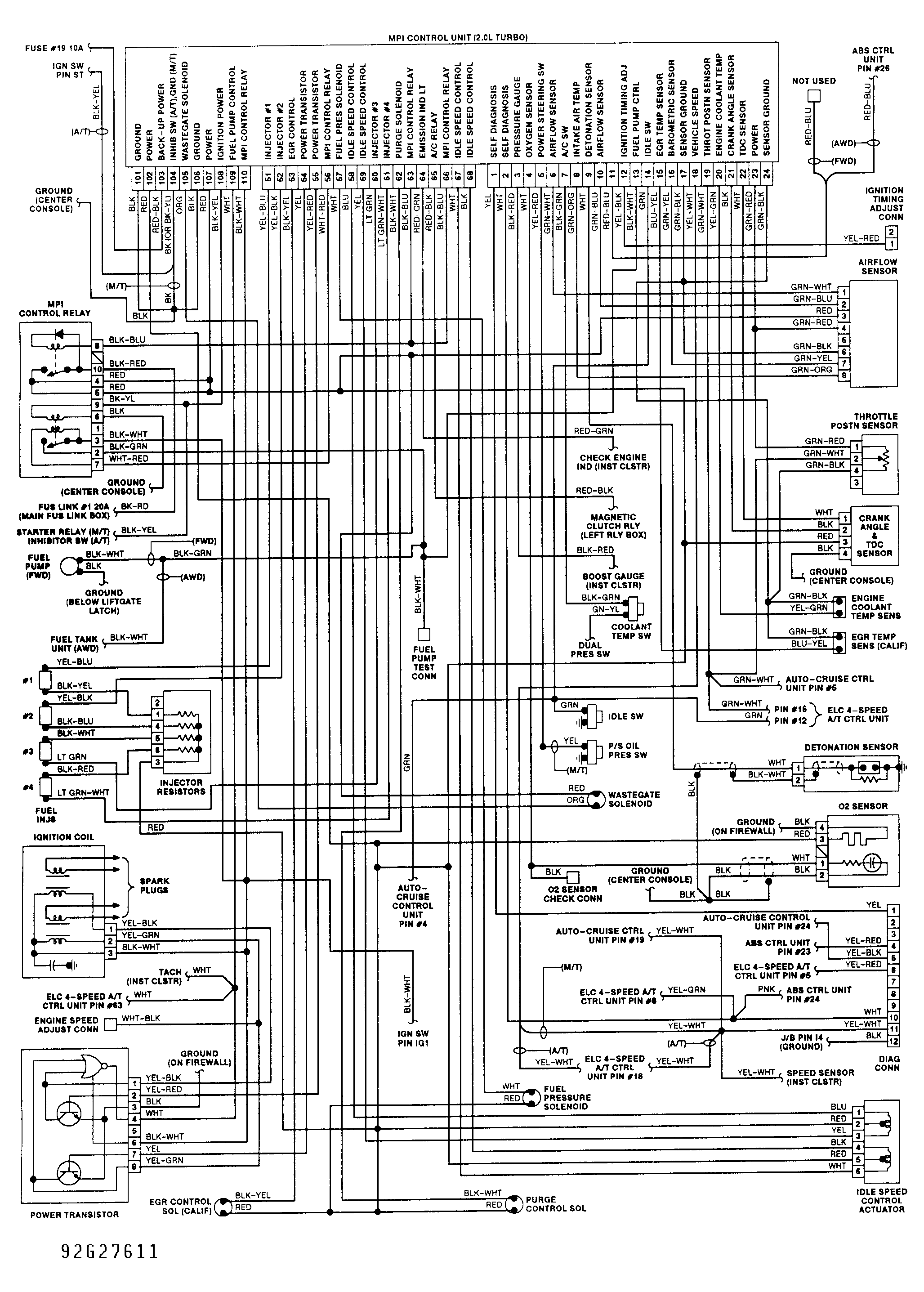

Fig 3: Wiring Diagram (Eclipse 2.0L Turbo)

G92G27611
