Operational Check (Montero)

  1. Relay is on left side of steering column, behind dash. Disconnect relay from wiring harness. Connect positive voltmeter lead to terminal No. 2. Connect negative voltmeter lead to terminal No. 5. Connect battery voltage to terminal No. 4 and ground terminal No. 5. See Fig 1 .
  2. Jumper terminals No. 1 and 4 for 2 seconds. Remove jumper. Jumper terminals No. 1 and 5 for about 8 seconds. Voltmeter should show zero volts. After terminals No. 1 and 5 have been connected for at least 8 seconds, battery voltage should be present on terminal No. 2. Replace relay if voltage is not as specified.

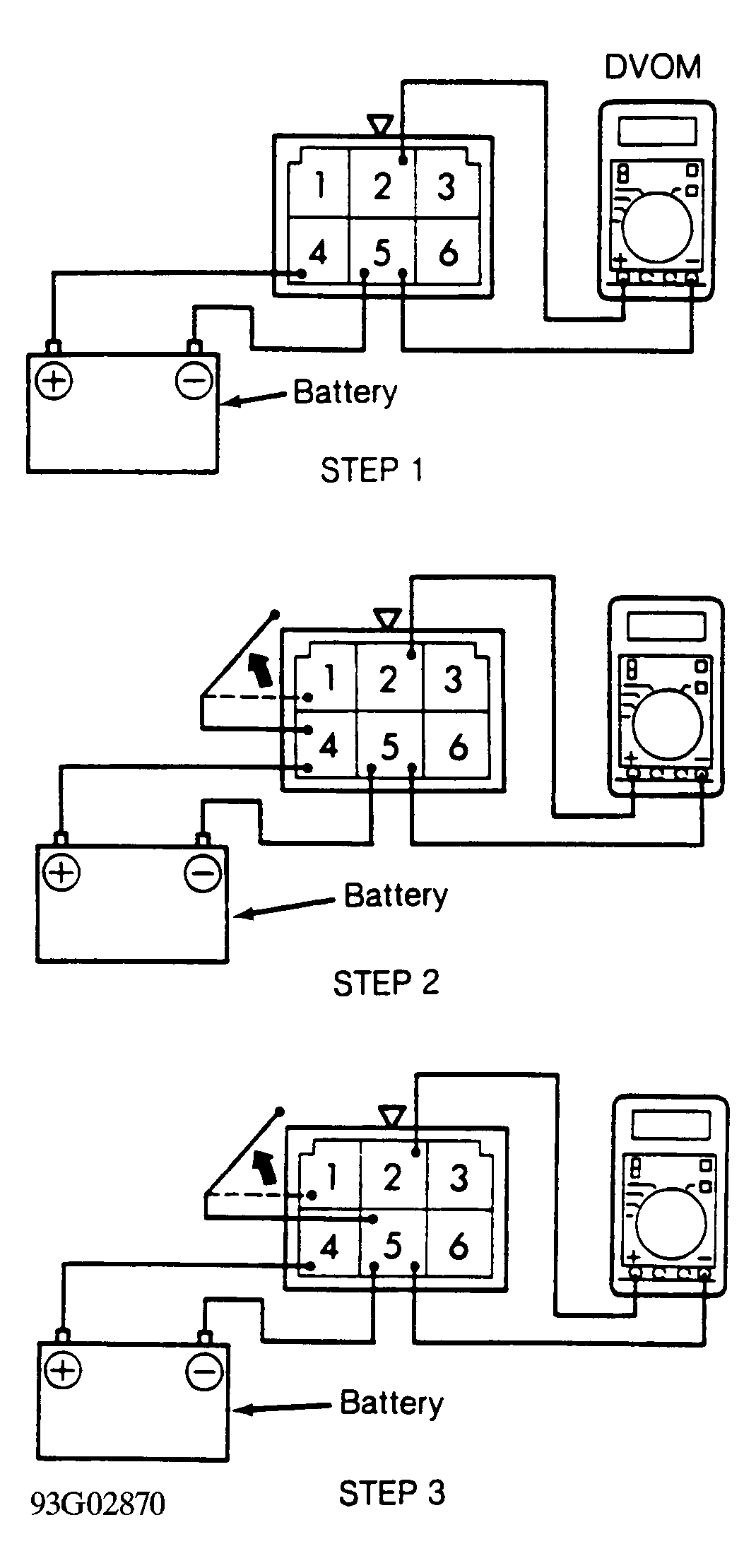

Fig 1: Rear Wiper Relay Terminals
G93G02870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
