Hydraulic Unit: Installation

To install, reverse removal procedure(s). Install hydraulic unit brakelines. Make sure brakelines are installed in correct location. See Fig 1. Bleed the brake hydraulic system. Refer to BLEEDING BRAKE SYSTEM .

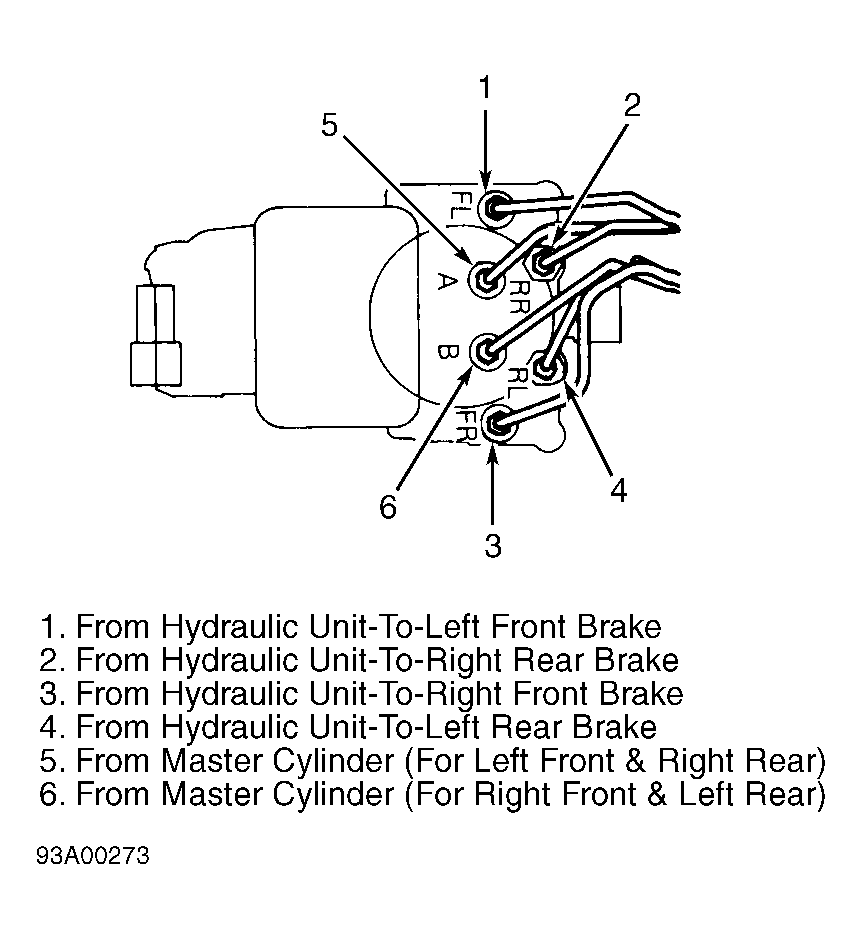

Fig 1: Brakeline Connections To Hydraulic Unit ID (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

To install, reverse removal procedure(s). Install hydraulic unit brakelines. Make sure brakelines are installed in correct location. See Fig 1. Bleed the brake hydraulic system. Refer to BLEEDING BRAKE SYSTEM .

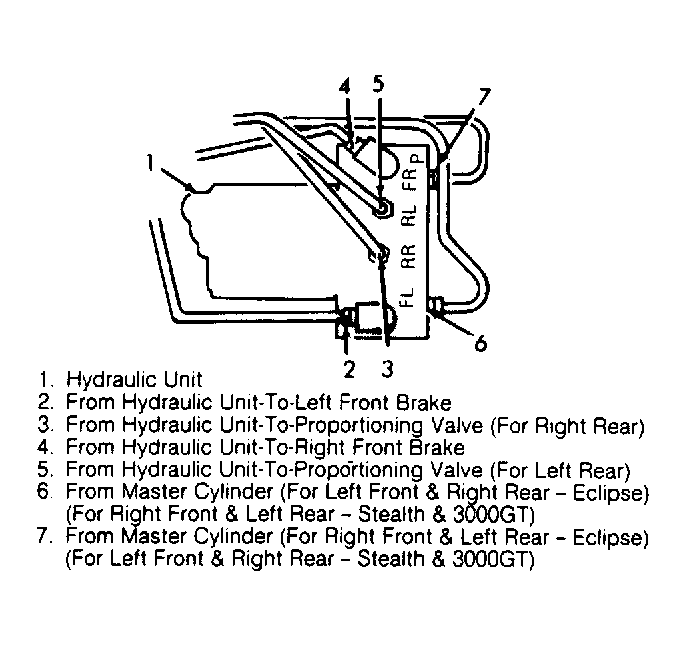

Fig 1: Brakeline Connections To Hydraulic Unit ID (Eclipse, Stealth & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

To install, reverse removal procedure(s). Install hydraulic unit brakelines. Make sure brakelines are installed in correct location. See Fig 1. Bleed the brake hydraulic system. Refer to BLEEDING BRAKE SYSTEM .

Fig 1: Identifying Brakeline Connections To Hydraulic Unit (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

To install, reverse removal procedure(s). Install hydraulic unit brakelines. Make sure brakelines are installed in correct location. See Figure. Bleed the brake hydraulic system. Refer to BLEEDING BRAKE SYSTEM .
