Section 9 (Disc): Overhaul

WARNING: This page is about a different car, the 1993 Plymouth Laser, 1993 Eagle Talon, 1992 Plymouth Laser, and 1992 Eagle Talon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See Fig 1 -Fig 4 for exploded views of brake components.

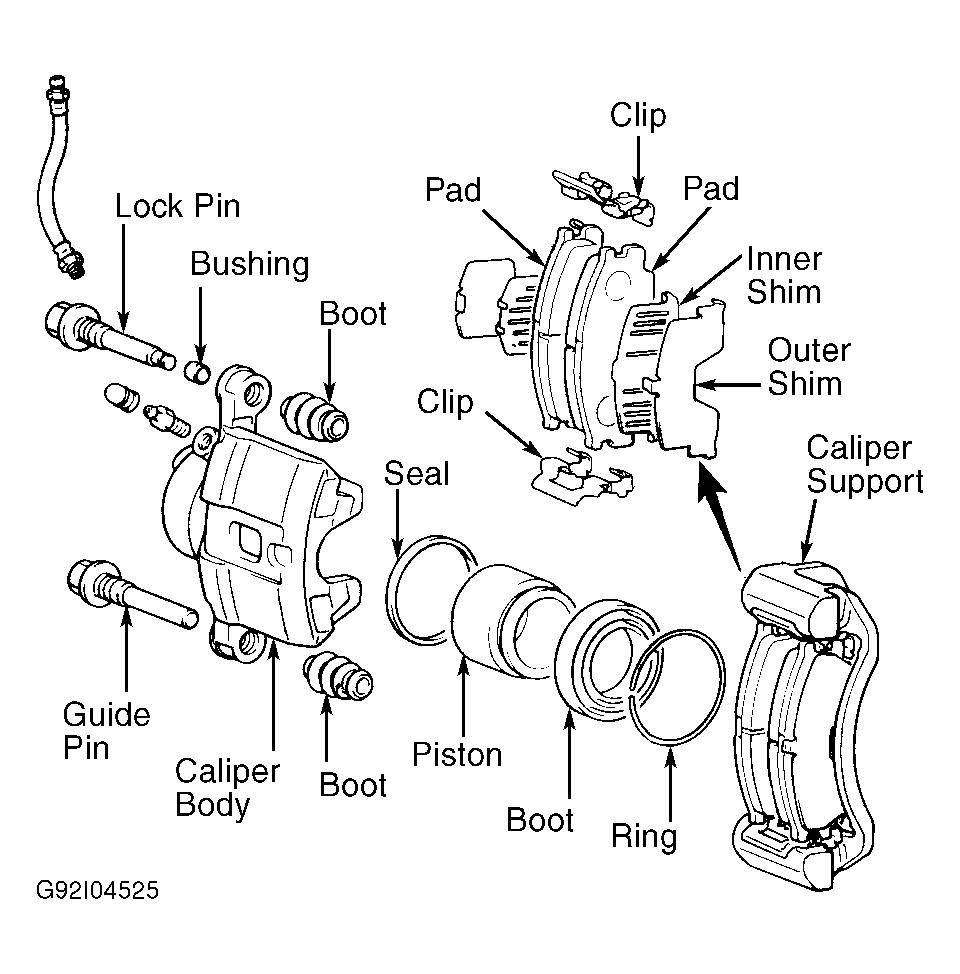

Fig 1: Exploded View of Front Brake Caliper

Courtesy of CHRYSLER MOTORS

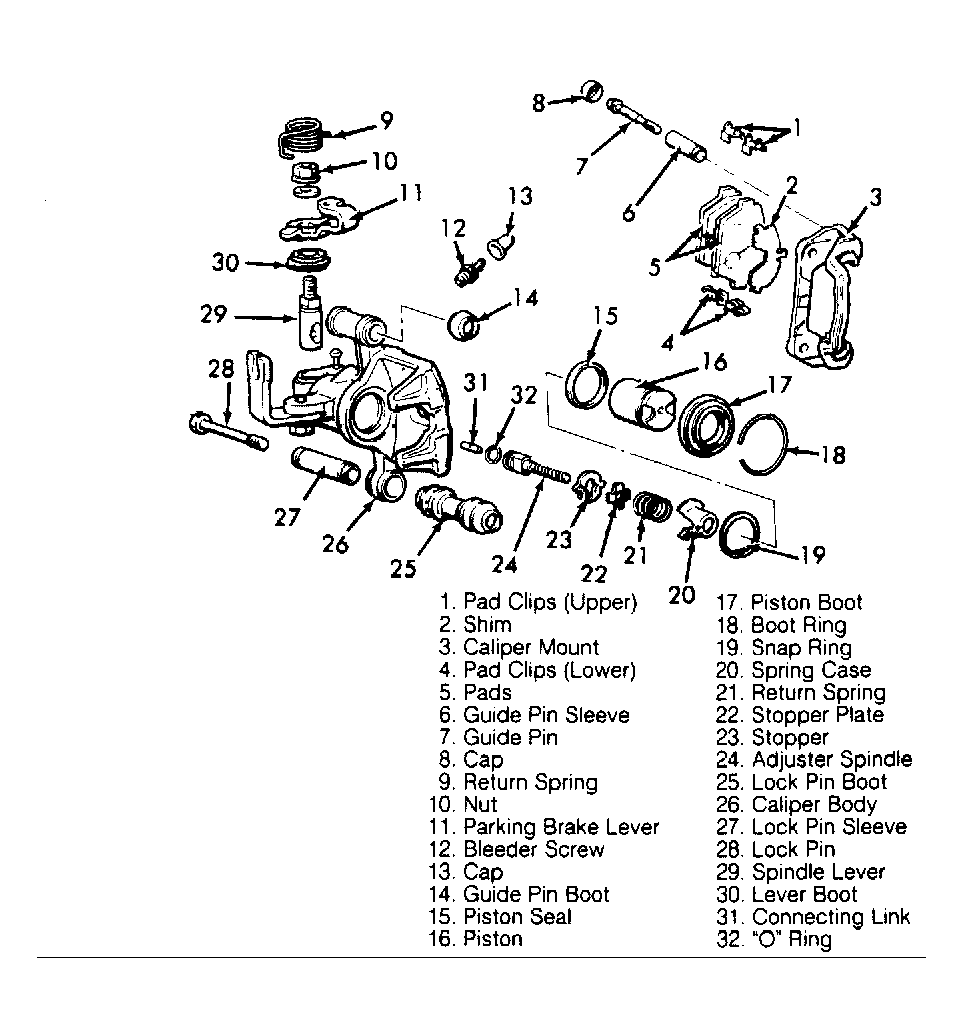

Fig 2: Exploded View of Rear Brake Caliper

Courtesy of CHRYSLER MOTORS

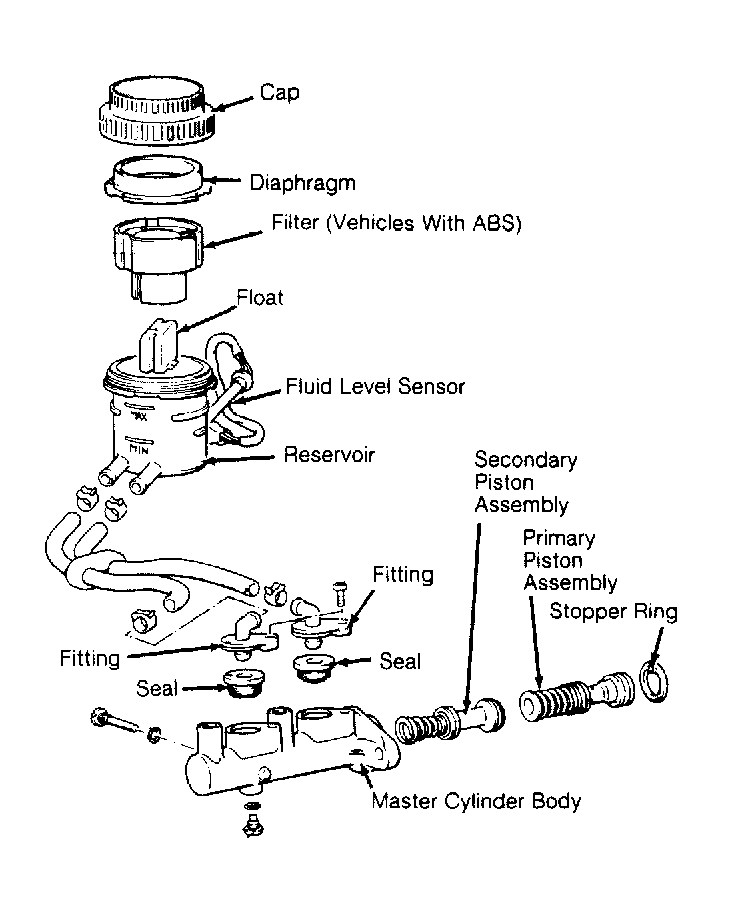

Fig 3: Exploded View of Master Cylinder

Courtesy of CHRYSLER MOTORS

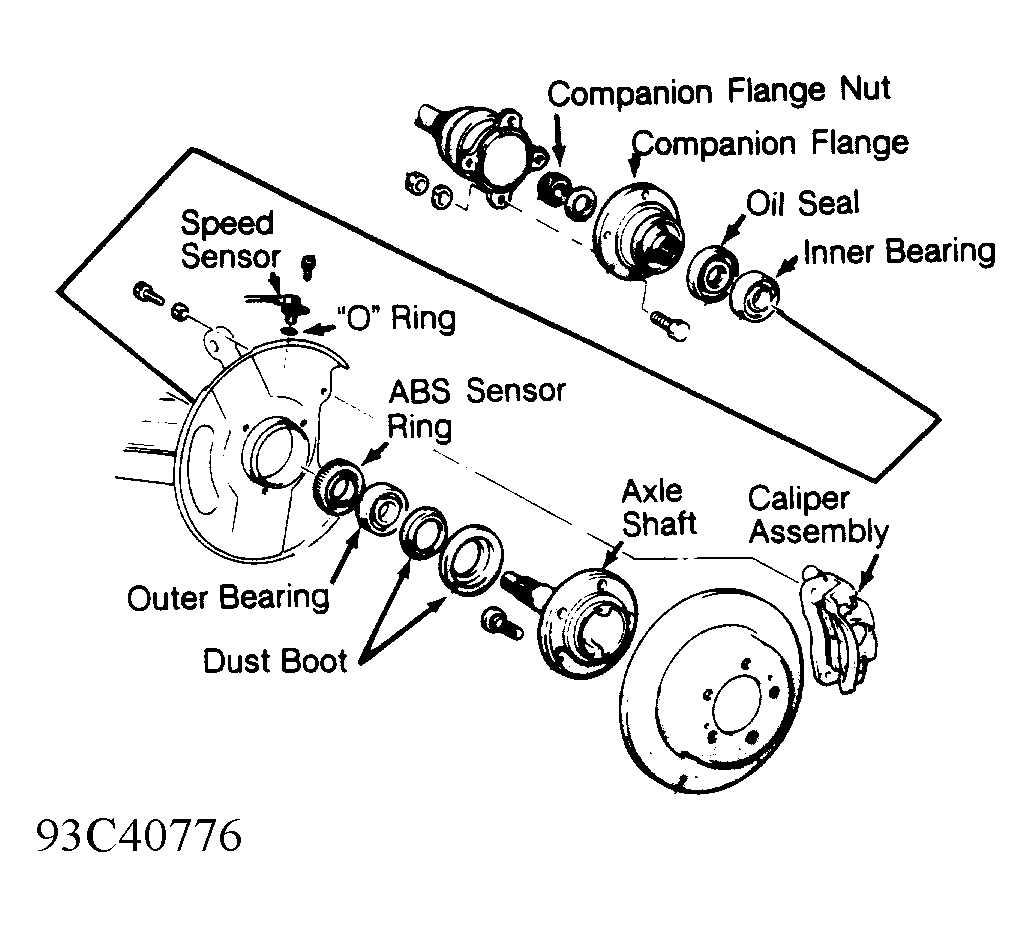

Fig 4: Exploded View of Rear Axle Hub & Bearing Assembly (AWD only)

Courtesy of CHRYSLER MOTORS

Fig 5: Exploded View of Rear Axle Hub & Bearing Assembly (AWD 1993)

Courtesy of CHRYSLER MOTORS
