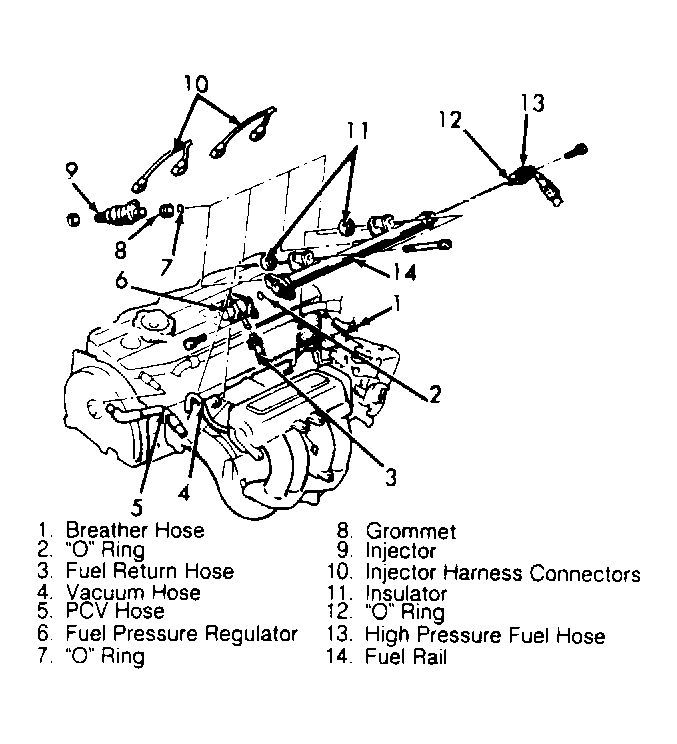

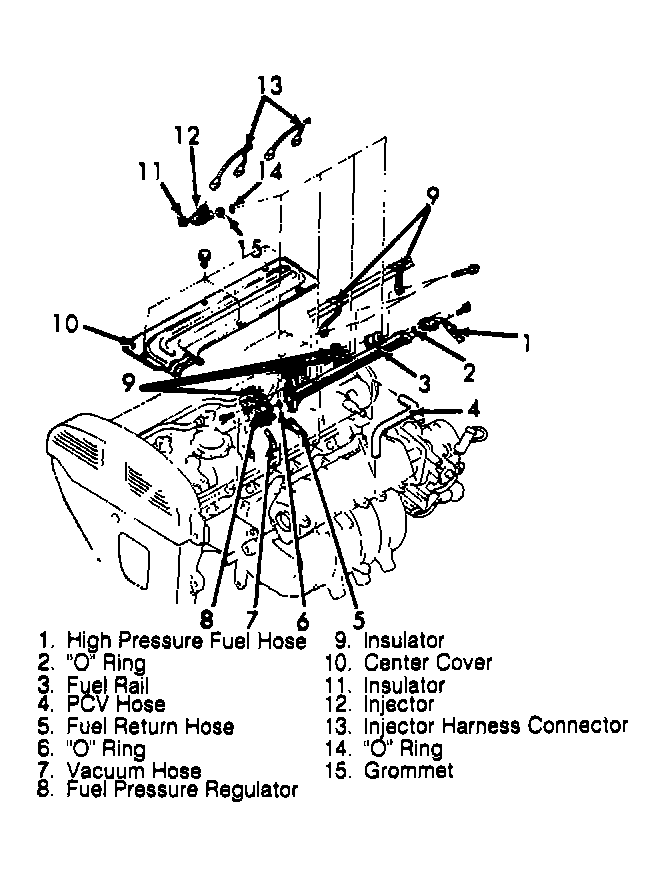

Fuel Rail & Injectors: Installation
- To install, reverse removal procedure. Use new insulators, "O" rings and grommets for injectors. Ensure injector holes are clean.
- Lubricate injector and fuel line "O" rings with engine oil before in-stalling. Install injector until firmly seated in port. Pressurize fuel system and check for leaks. Tighten all bolts to specification. See TORQUE SPECIFICATIONS at end of article.
