Fuel Pump (Front-Wheel Drive): Installation

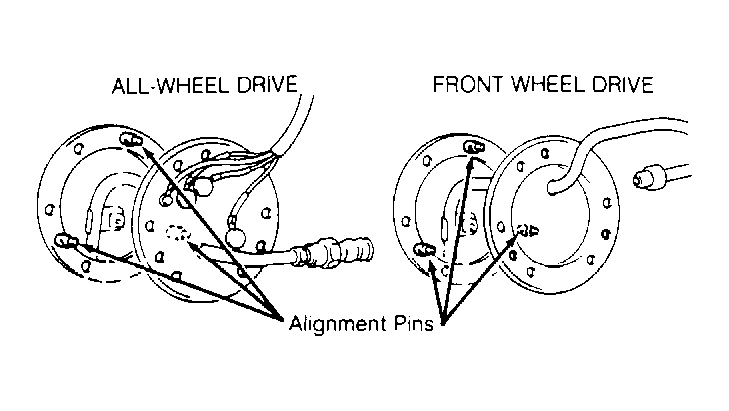

  1. To install, reverse removal procedure. Line up the alignment pins with fuel pump cover, and install fuel pump. See Figure .
  2. Install new "O" ring and bolt securing fuel pump to bottom of fuel tank, and tighten bolt before tightening remaining fuel pump bolts. Ensure "O" ring is not pinched. Fill fuel tank. Start engine and check for leaks.
