NS-4A: Repairing Crank Angle Sensor
>>

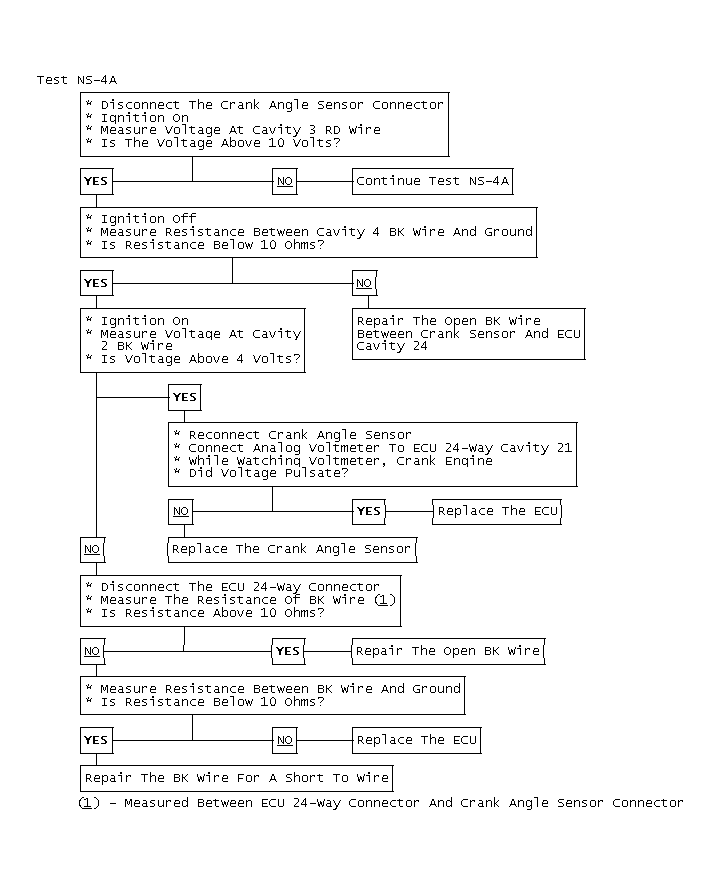

No Start Test NS-4A: Diagnostic Flow Chart (1 of 2)
No Start Test NS-4A: Diagnostic Flow Chart (1 of 2)
Fig 1: Test NS-4A
