NS-3A: Checking Fuel Pump

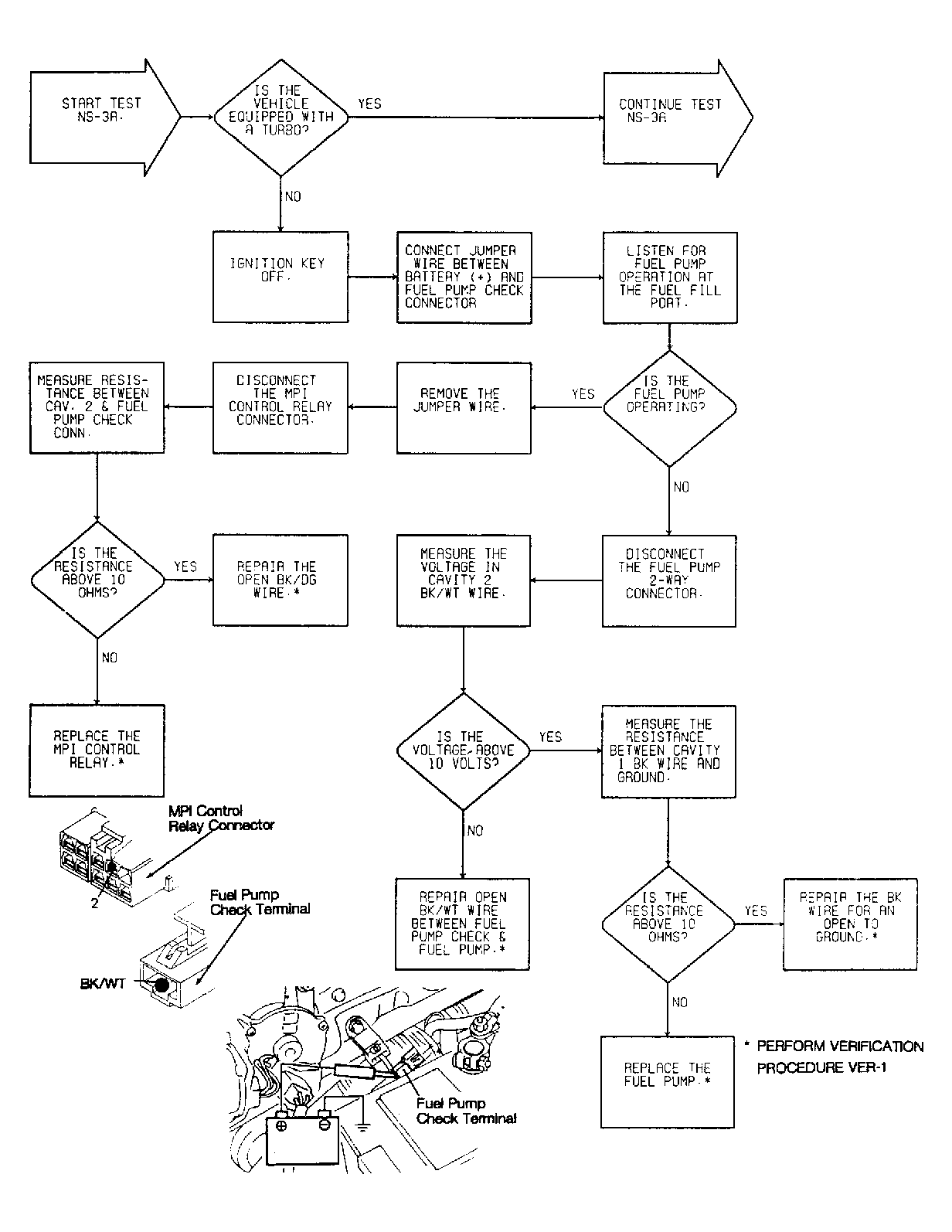

Fig 1: No Start Test NS-3A: Diagnostic Flow Chart (1 of 2)

G91I10783

Fig 2: Test NS-3A

GB0044622

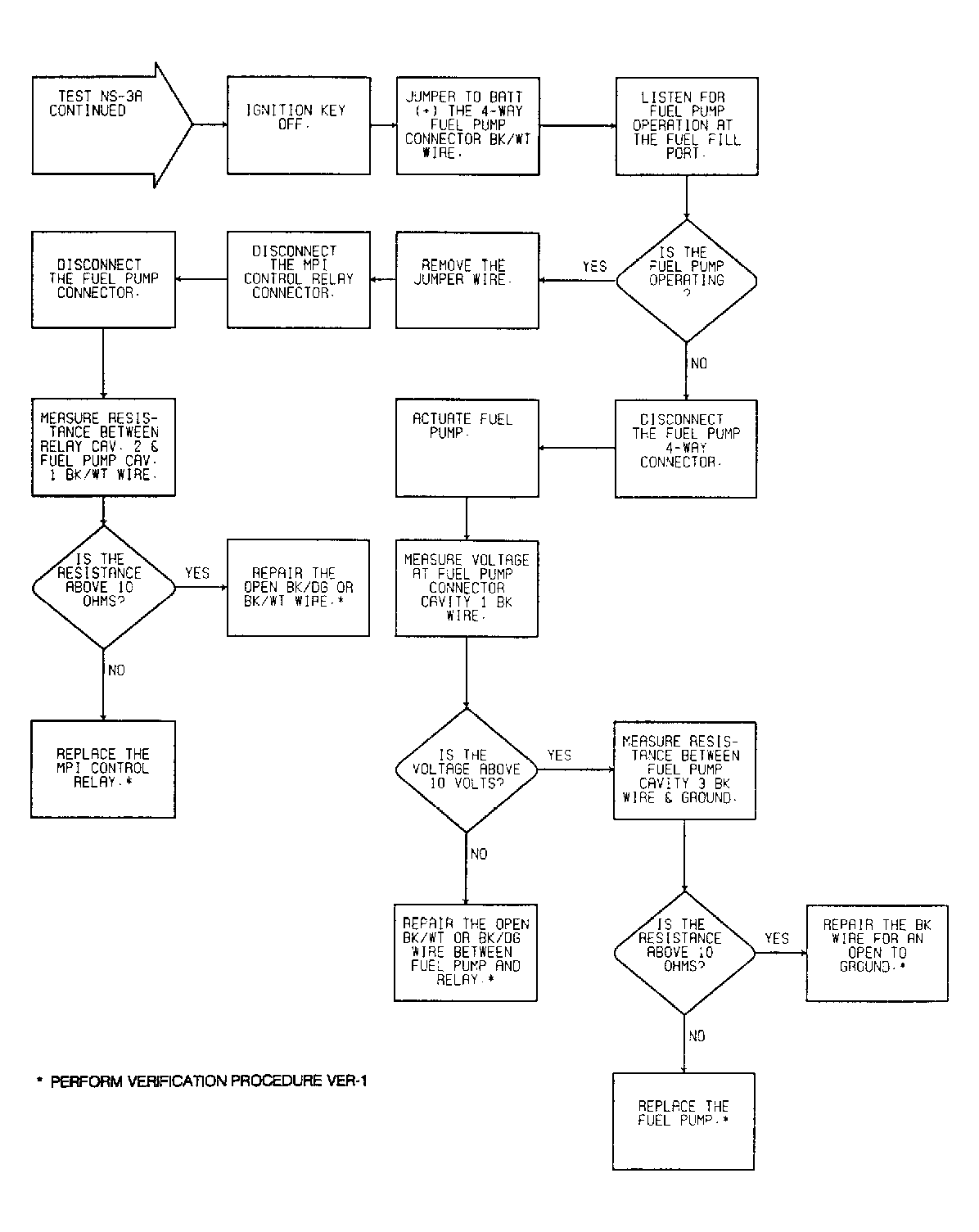

Fig 3: No Start Test NS-3A: Diagnostic Flow Chart (2 of 2)

G91J10784

Fig 4: Test NS-3A Continued

GB0044623
