NS-1A: Reading Fault Codes & Checking For Spark

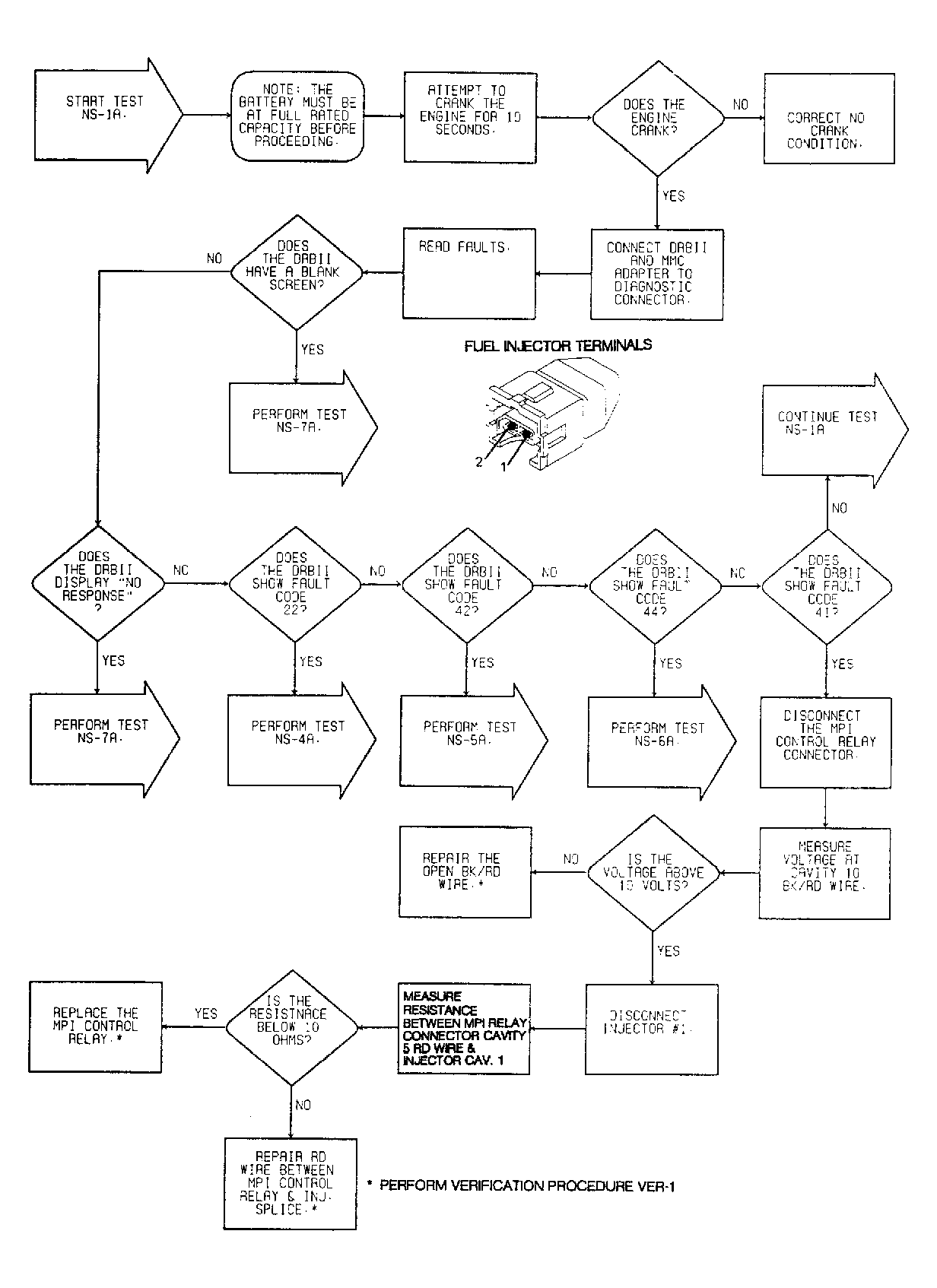

Fig 1: No Start Test NS-1A: Diagnostic Flow Chart (1 of 2)

NOTE: The Battery Must Be At Full Rated Capacity Before Proceeding

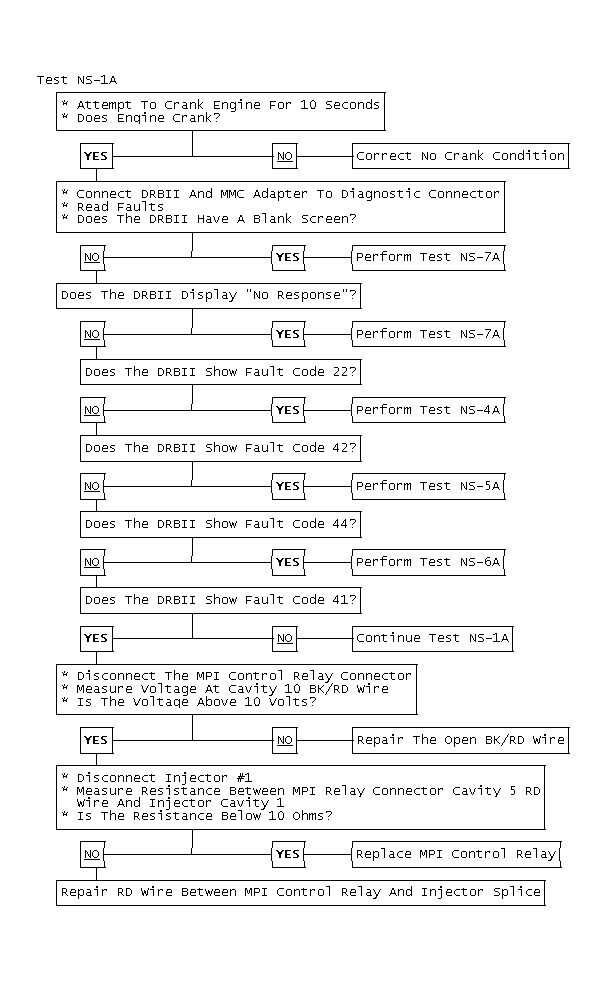

Fig 2: Test NS-1A

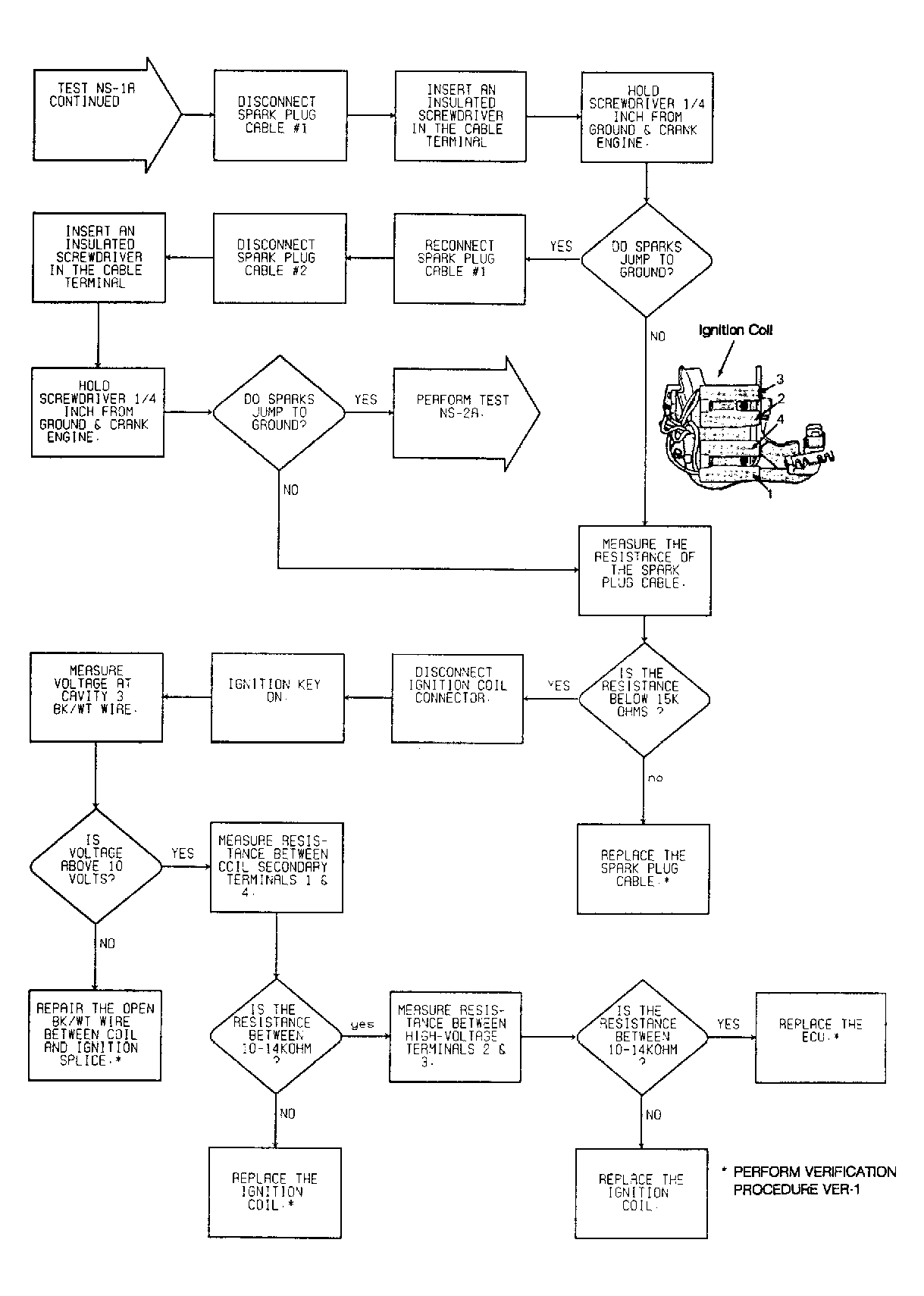

Fig 3: No Start Test NS-1A: Diagnostic Flow Chart (2 of 2)

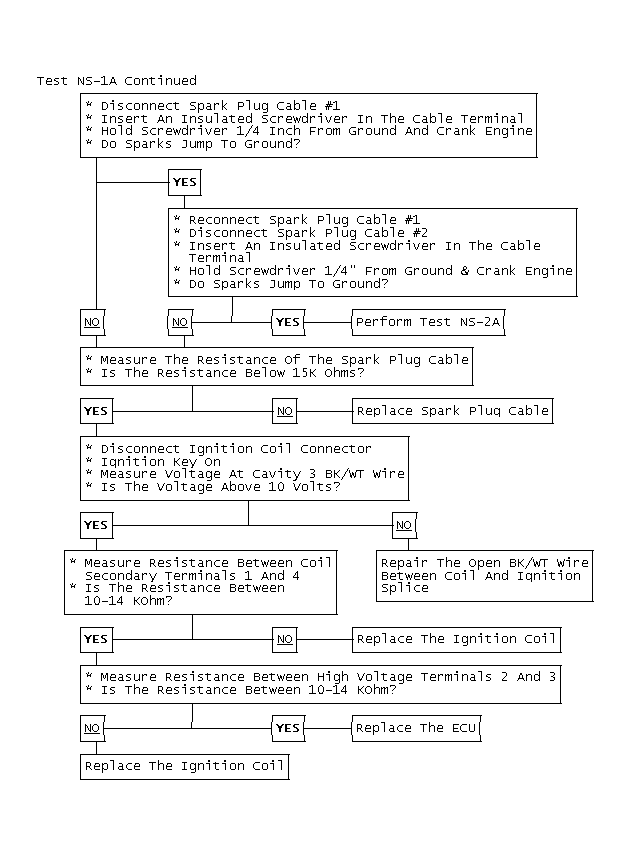

Fig 4: Test NS-1A Continued
