Dr-20A: Testing EGR System

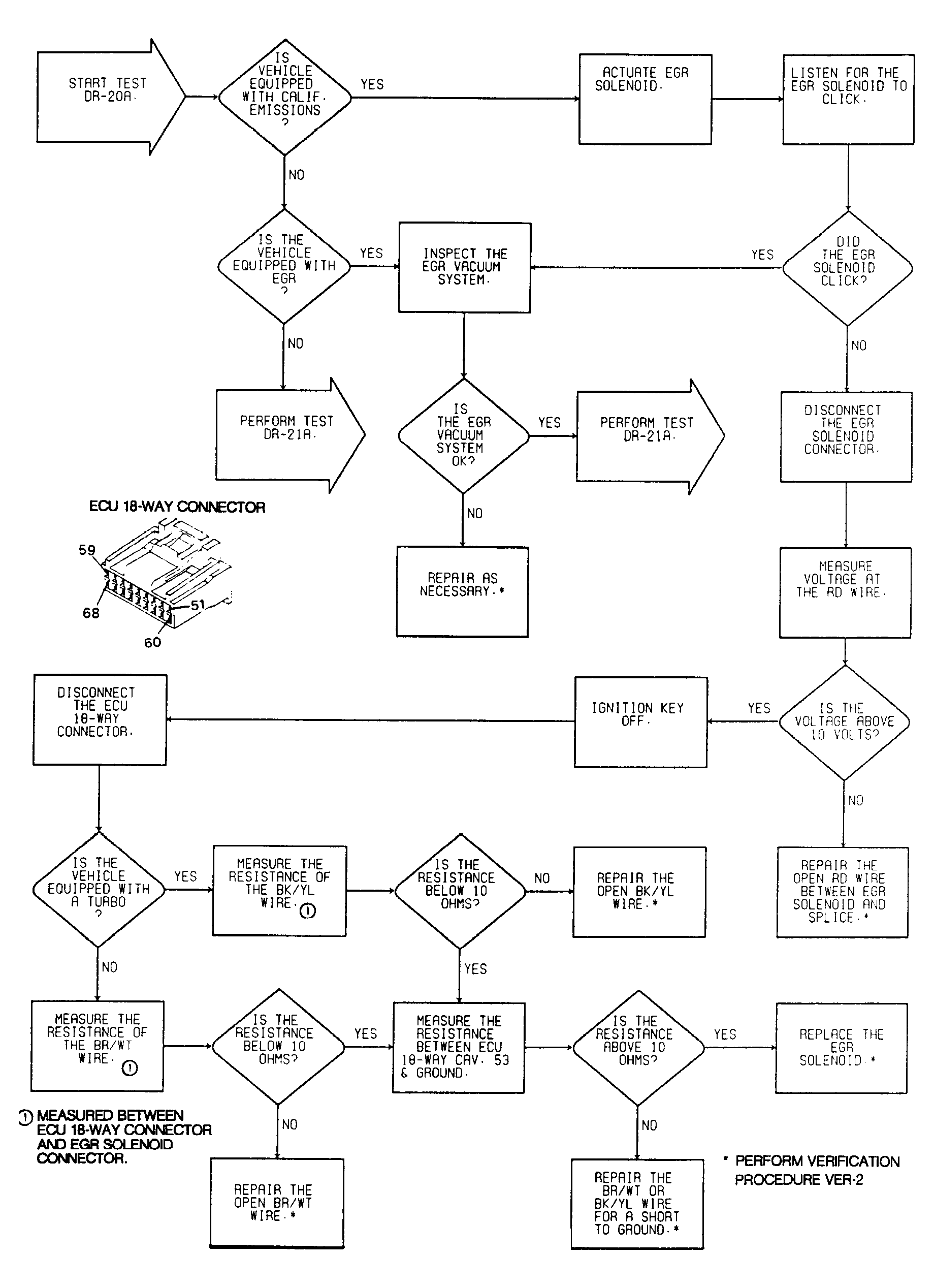

Fig 1: Driveability Test DR-20A: Diagnostic Flow Chart

G91J11147

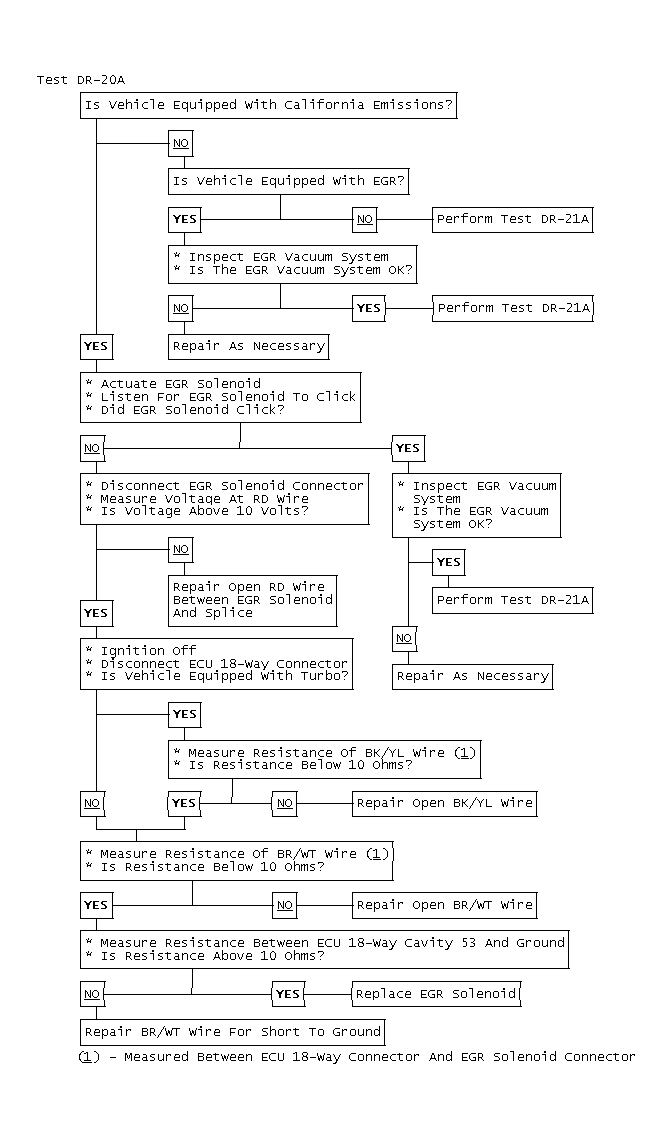

Fig 2: Test DR-20A

GB0044674
