Dr-19A: Testing Purge System

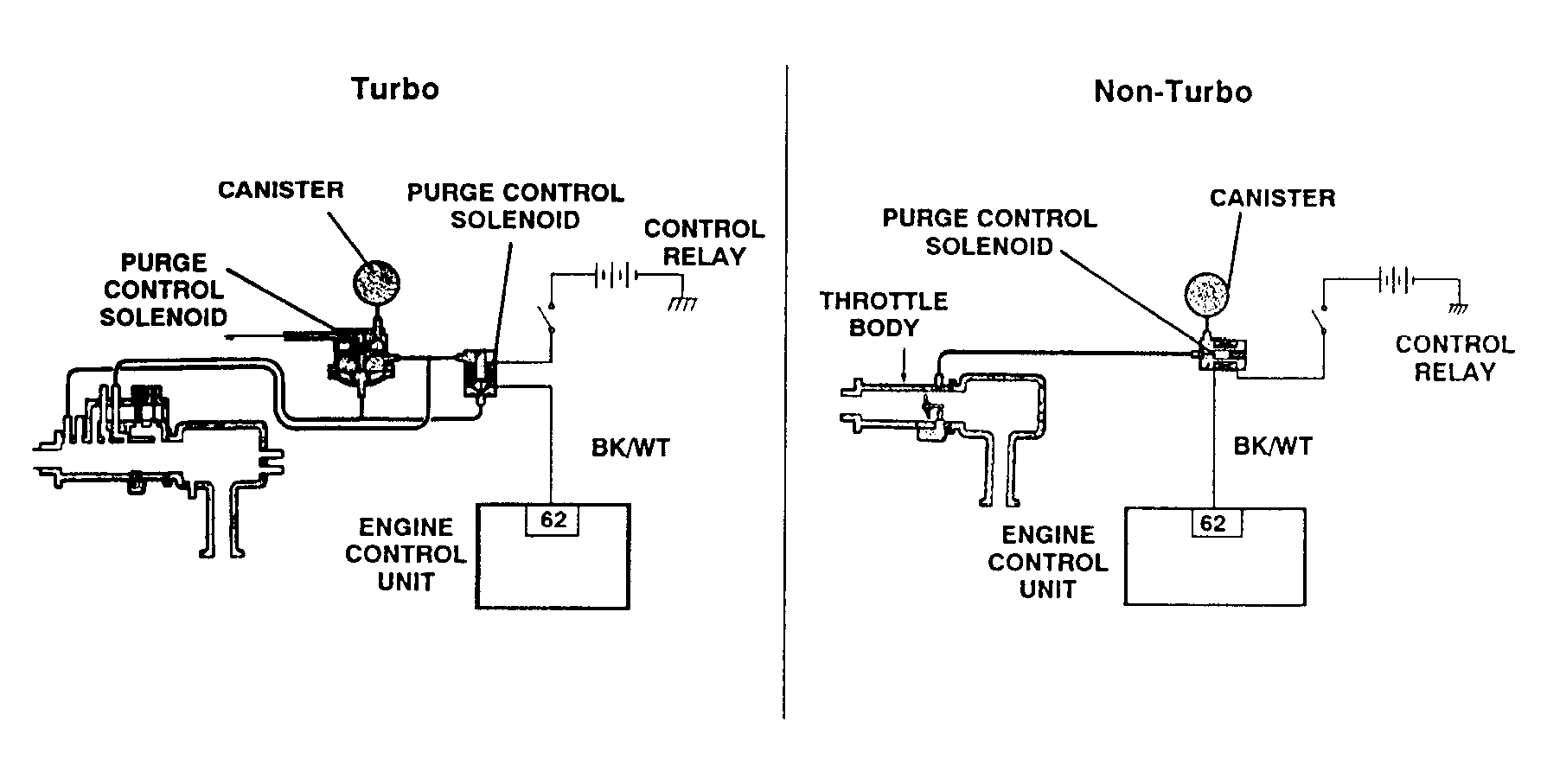

Fig 1: Driveability Test DR-19A: Circuit Diagram
G91A10777

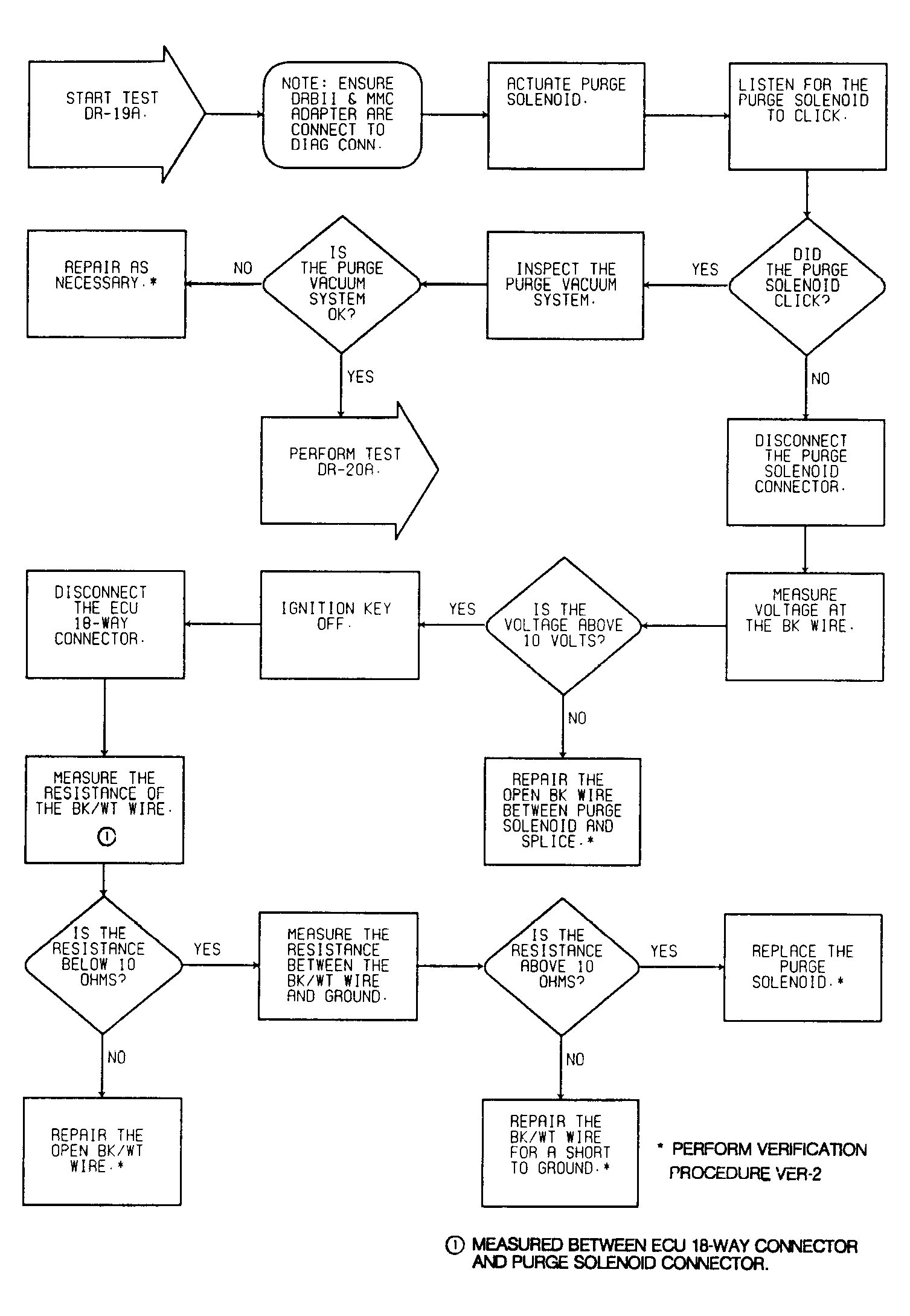

Fig 2: Driveability Test DR-19A: Diagnostic Flow Chart
G91I11146
NOTE: Ensure DRBII & MMC Adapter Are Connected To Diagnostic Connector
Fig 3: Test DR-19A
GB0044673
