Dr-17A: Testing Idle Speed Control Actuator

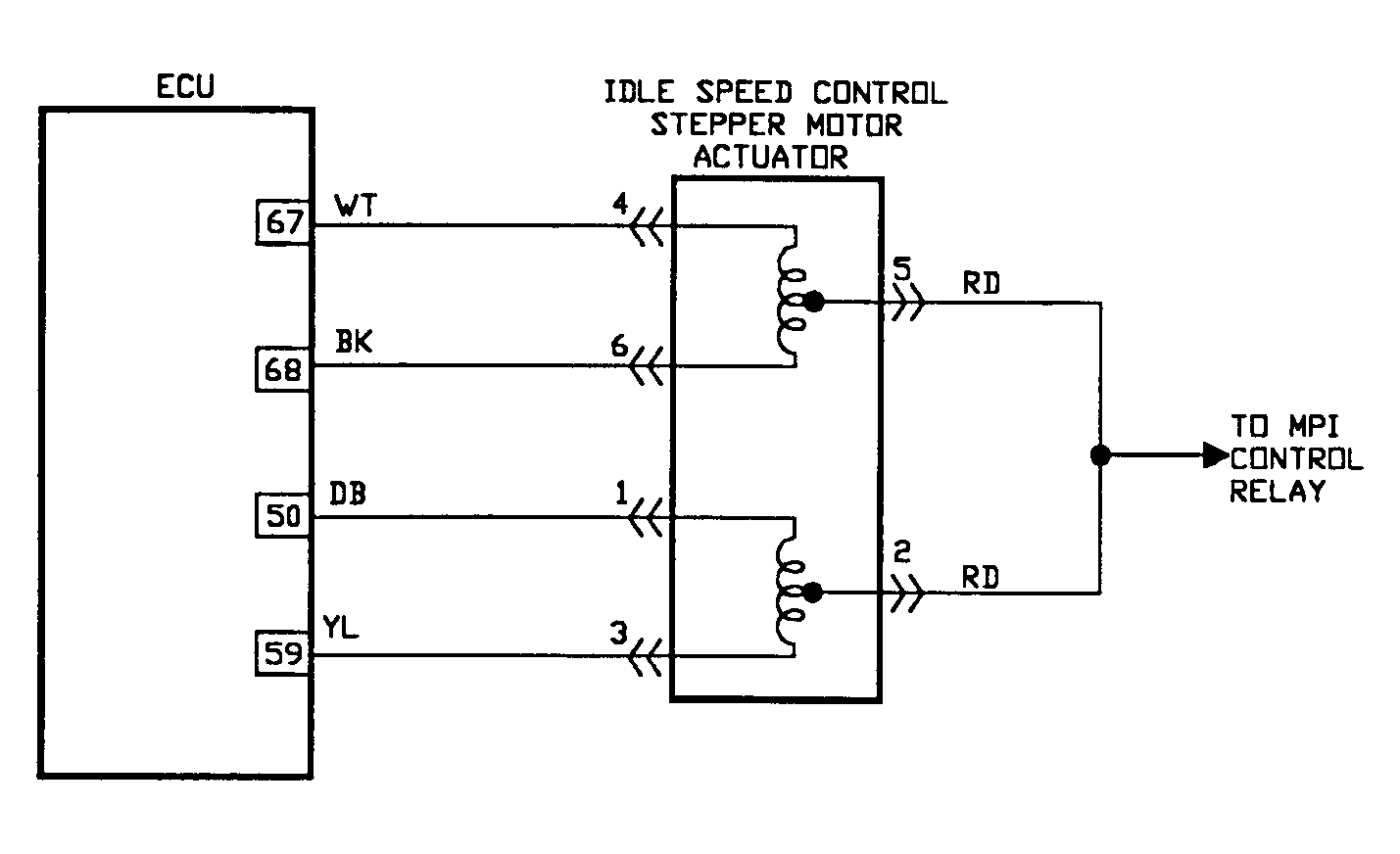

Fig 1: Driveability Test DR-17A: Circuit Diagram

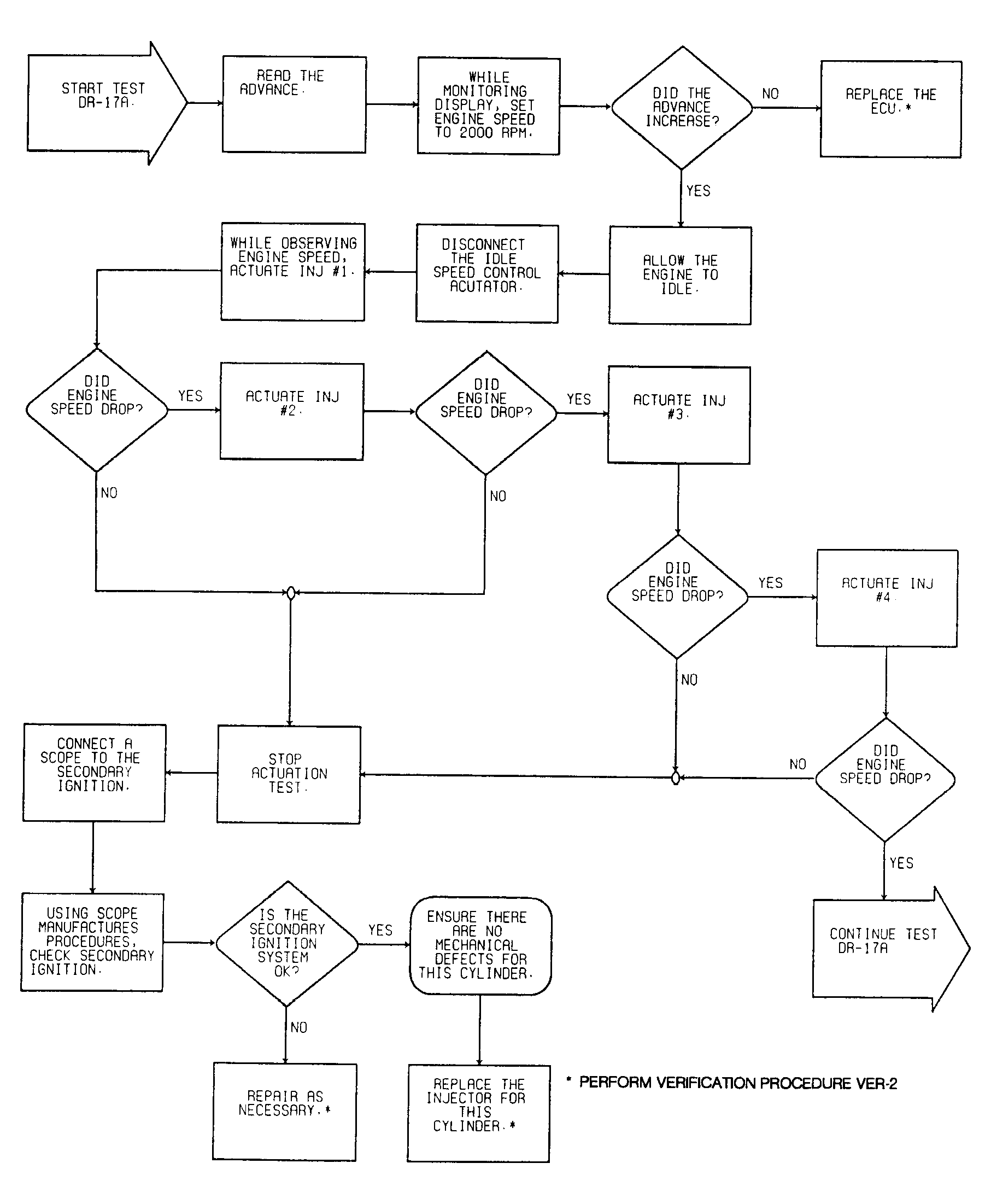

Fig 2: Driveability Test DR-17A: Diagnostic Flow Chart (1 of 3)

Fig 3: Test DR-17A (1 of 3)

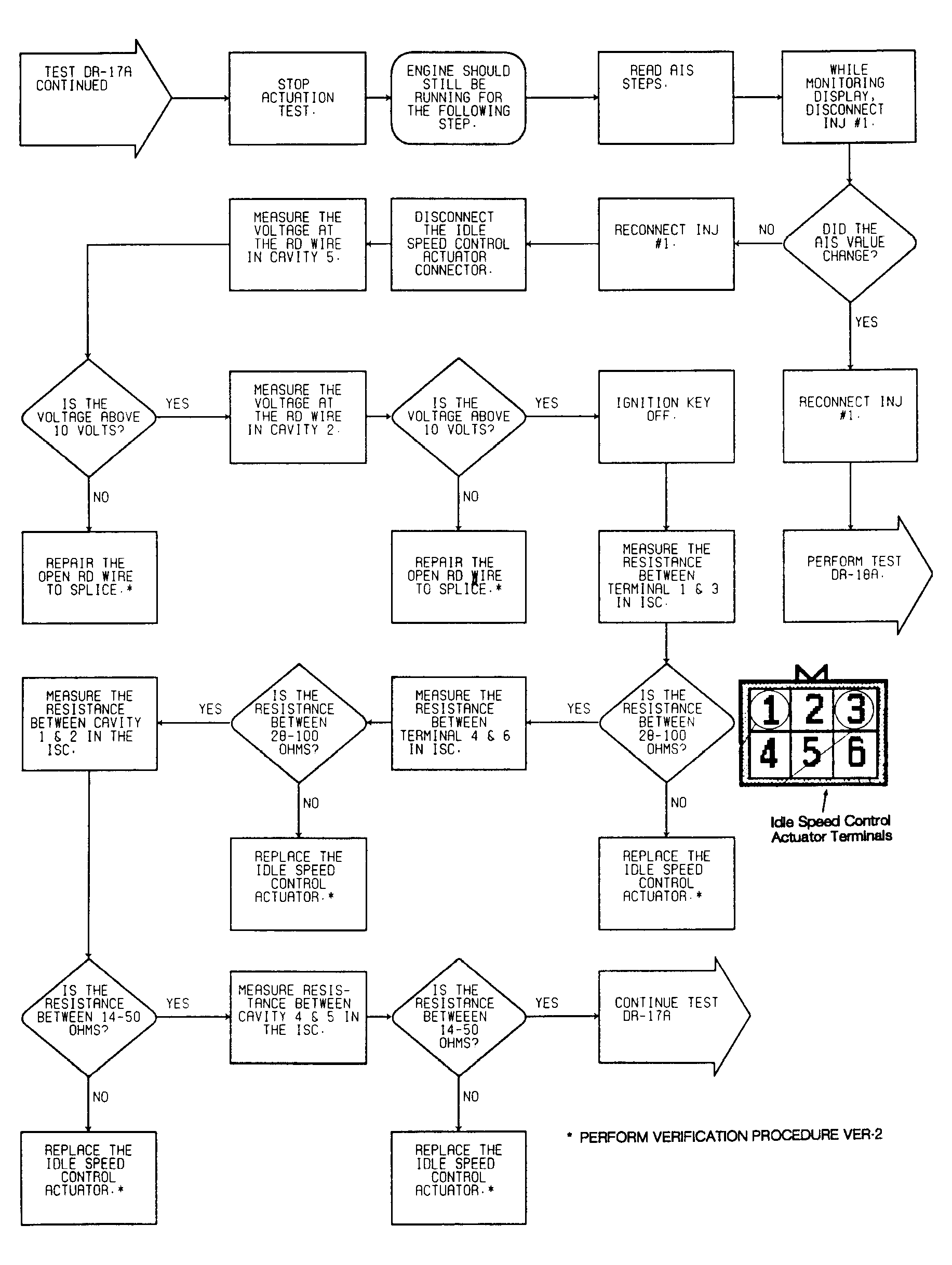

Fig 4: Driveability Test DR-17A: Diagnostic Flow Chart (2 of 3)

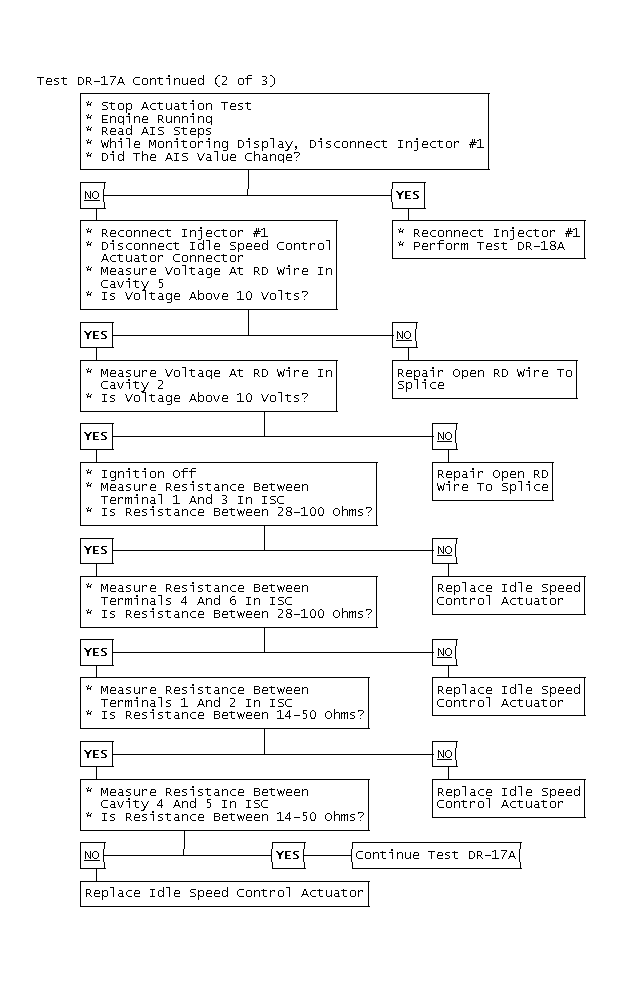

Fig 5: Test DR-17A Continued (2 of 3)

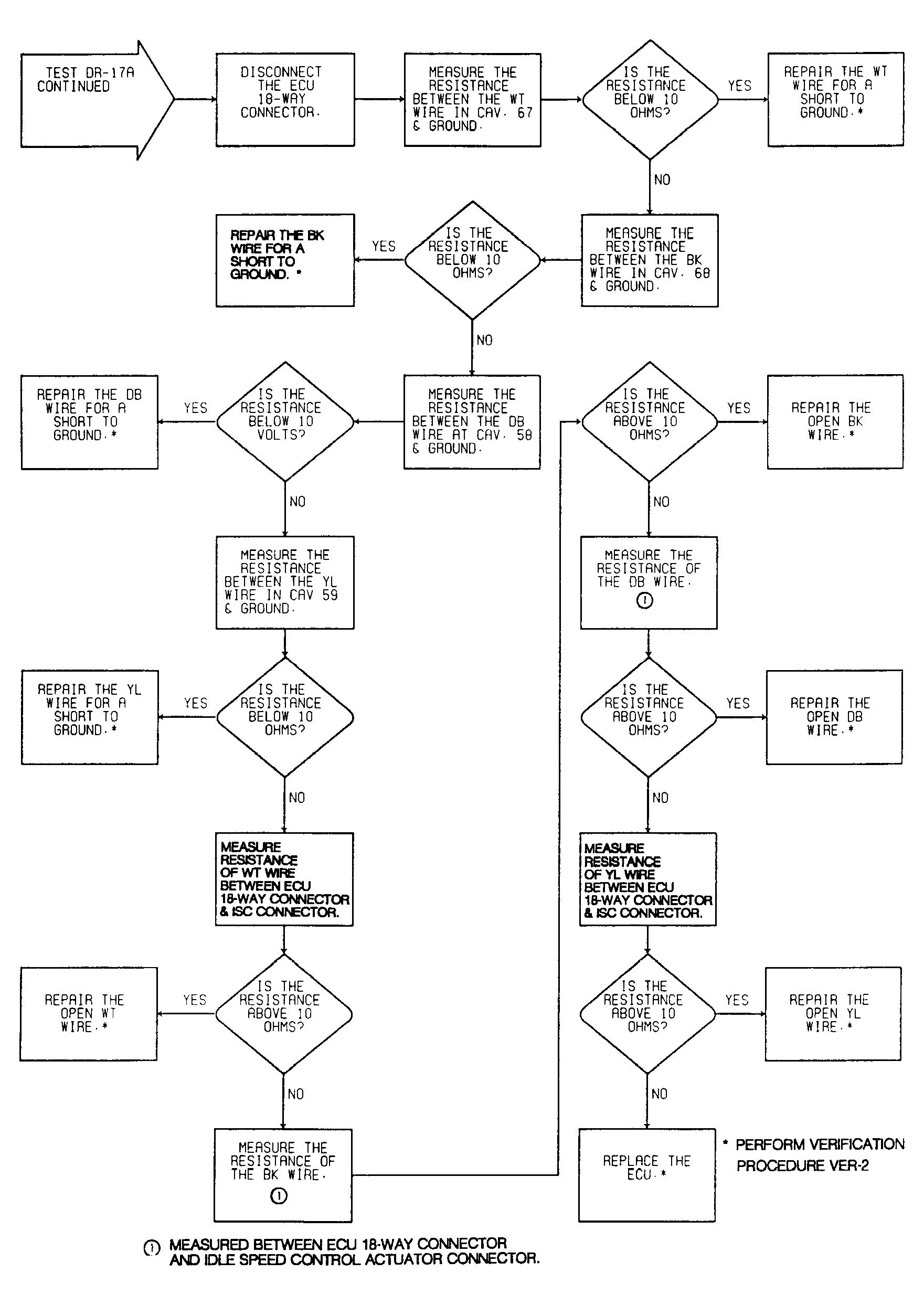

Fig 6: Driveability Test DR-17A: Diagnostic Flow Chart (3 of 3)

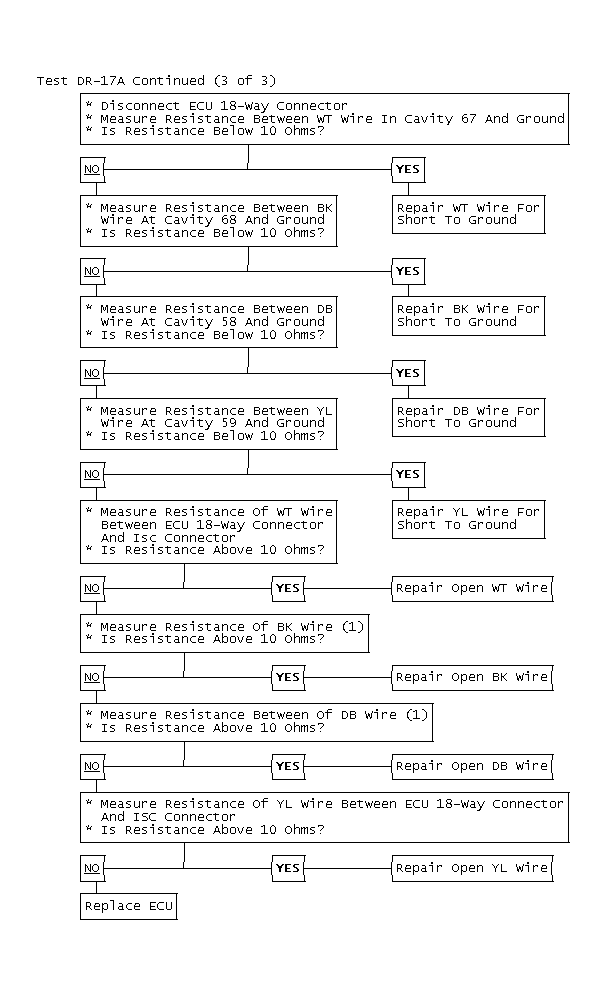

Fig 7: Test DR-17A Continued (3 of 3)
