Dr-16A: Testing Sensors

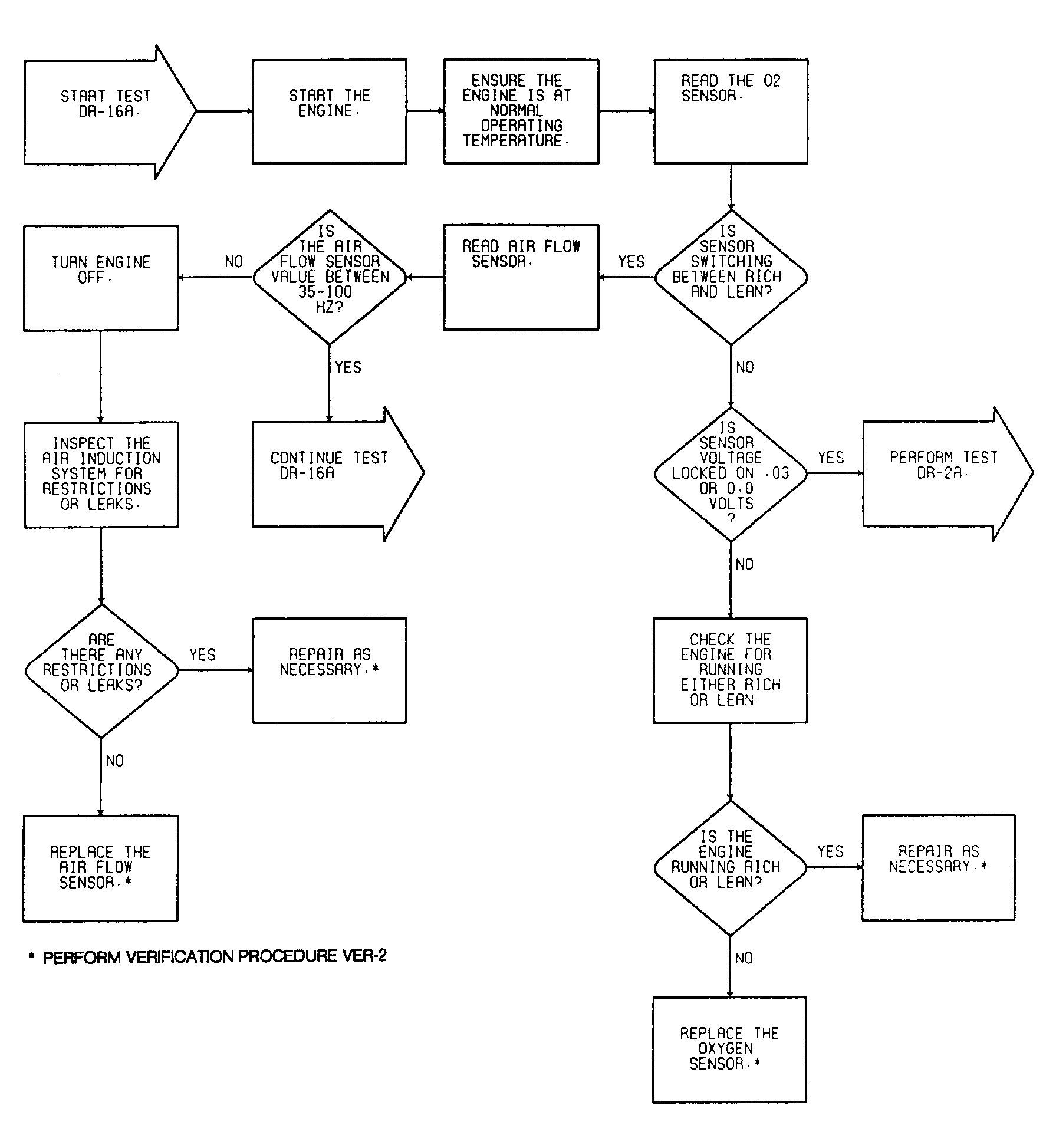

Fig 1: Driveability Test DR-16A: Diagnostic Flow Chart (1 of 3)

Fig 2: Test DR-16A (1 of 3)

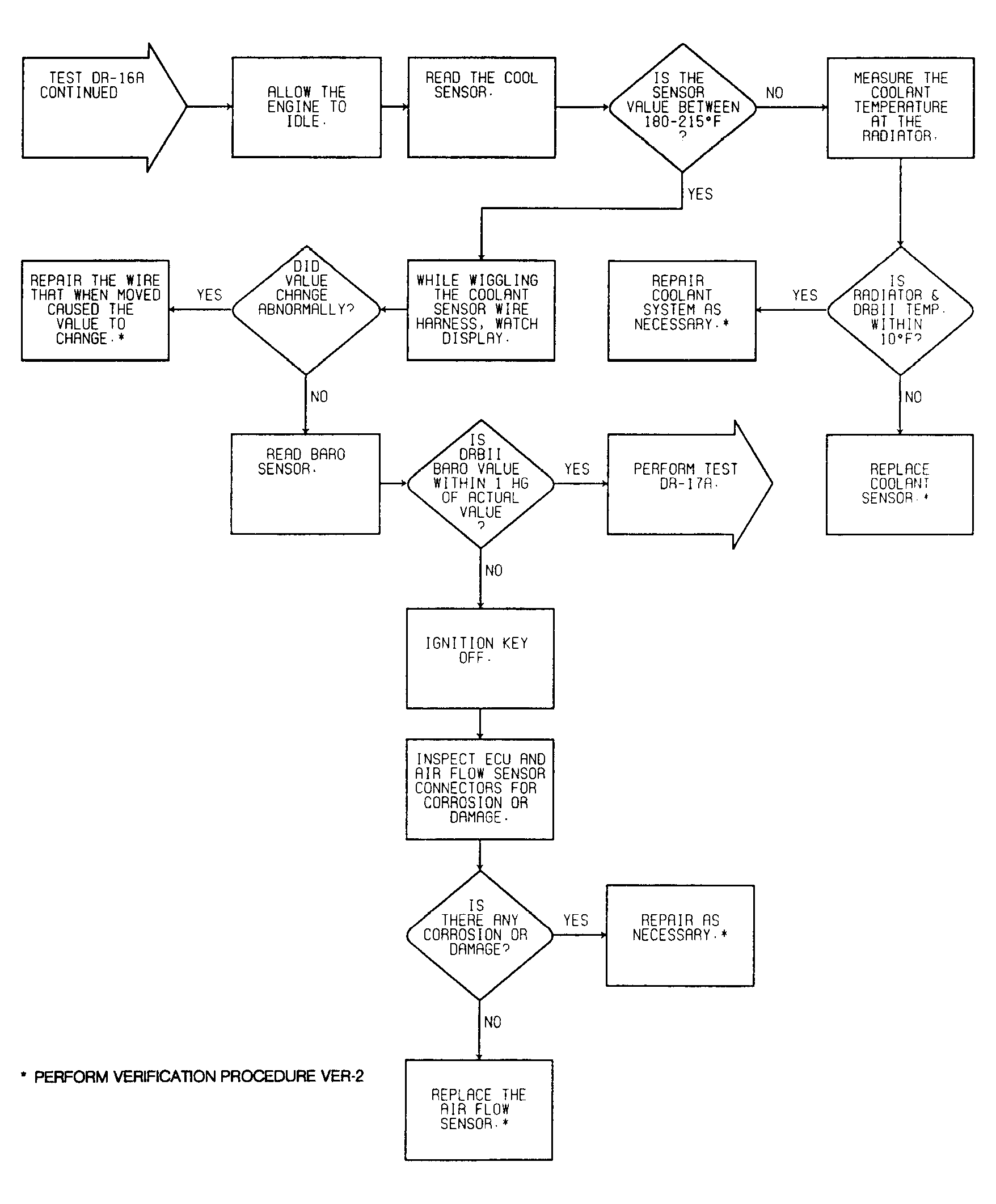

Fig 3: Driveability Test DR-16A: Diagnostic Flow Chart (2 of 3)

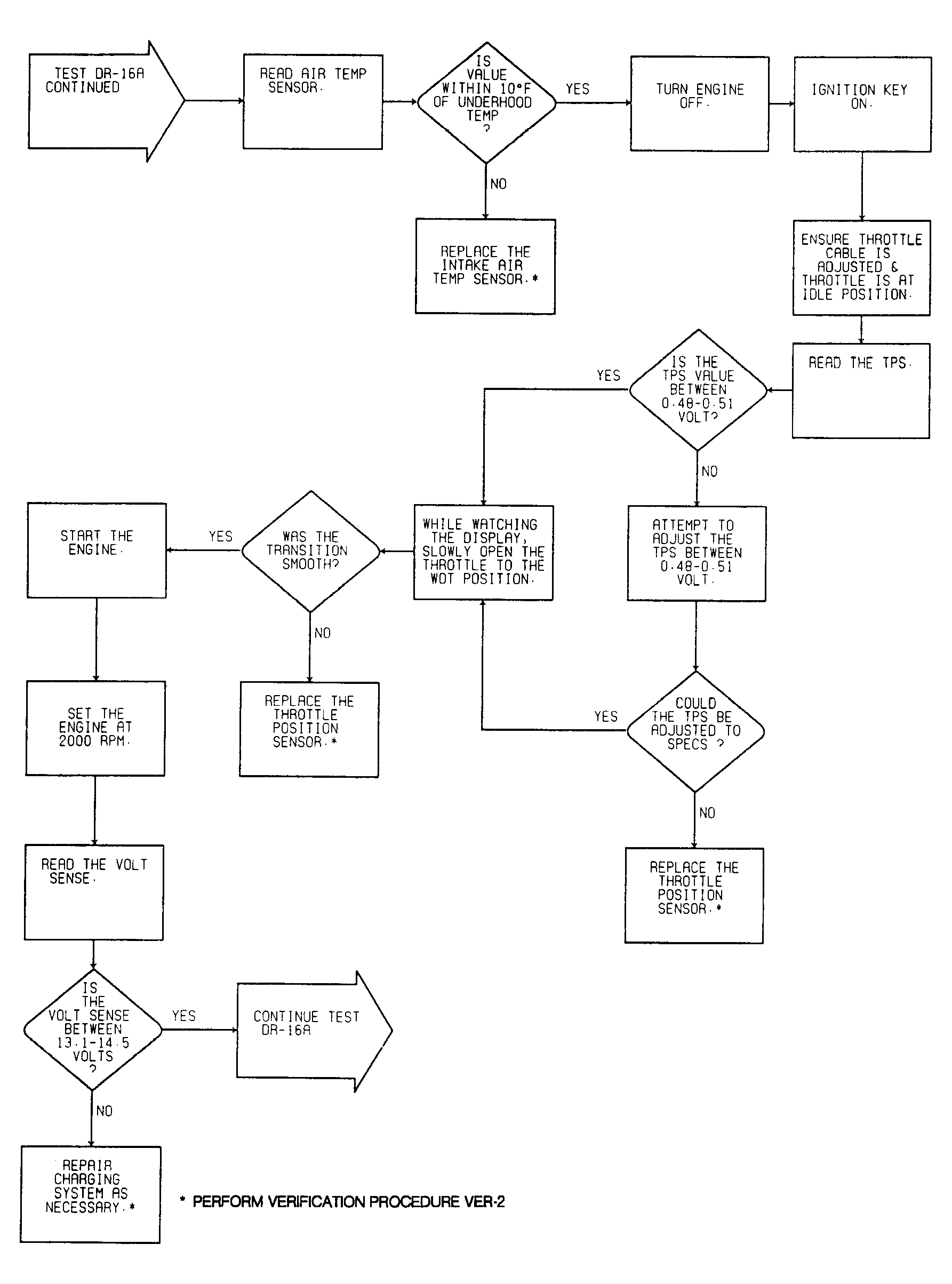

Fig 4: Test DR-16A Continued (2 of 3)

Fig 5: Driveability Test DR-16A: Diagnostic Flow Chart (3 of 3)

Fig 6: Test DR-16A Continued (3 of 3)
