Dr-15A: Testing Switches

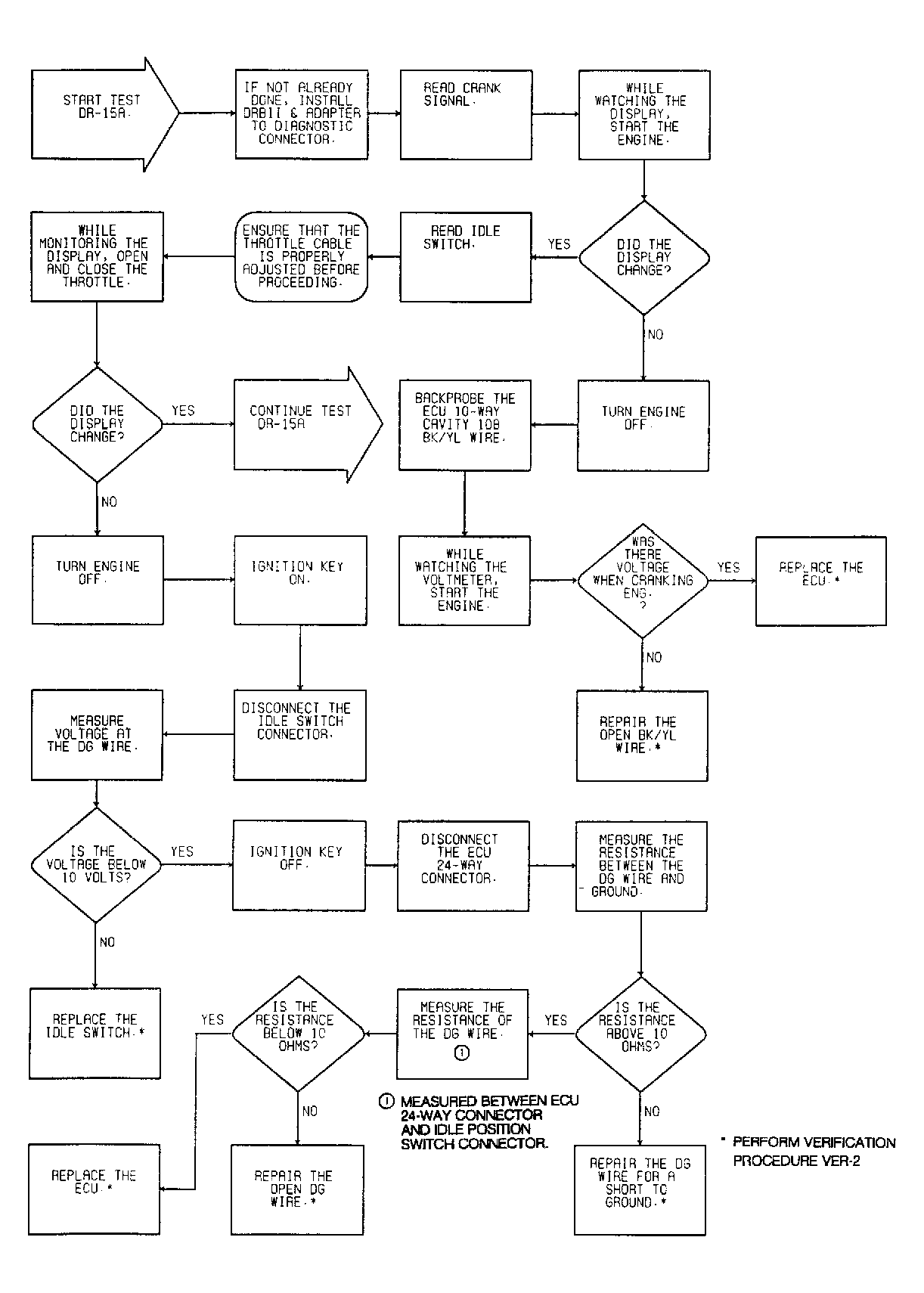

Fig 1: Driveability Test DR-15A: Diagnostic Flow Chart (1 of 4)

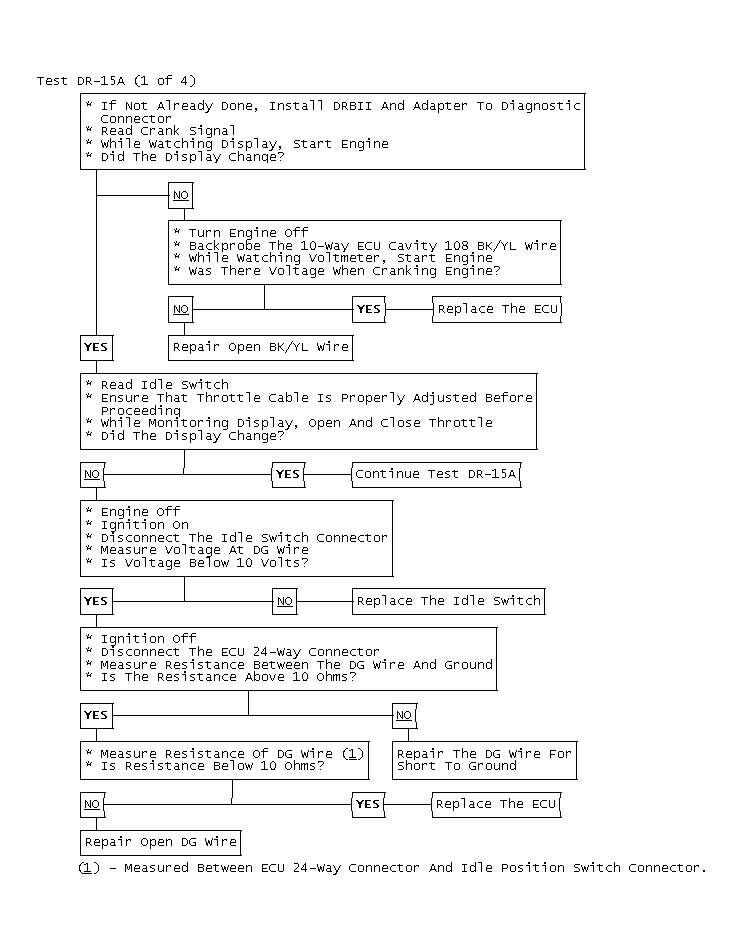

Fig 2: Test DR-15A (1 of 4)

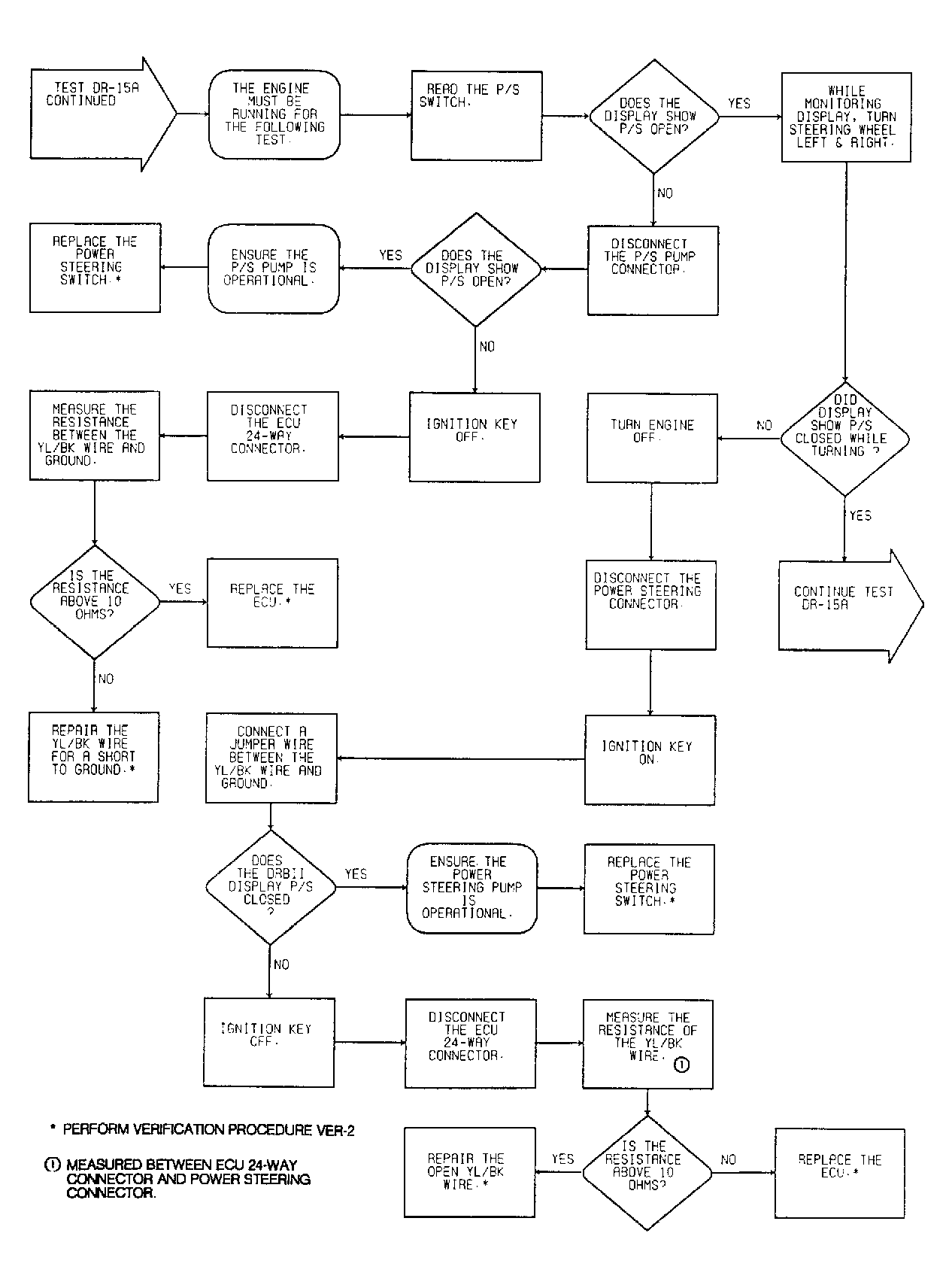

Fig 3: Driveability Test DR-15A: Diagnostic Flow Chart (2 of 4)

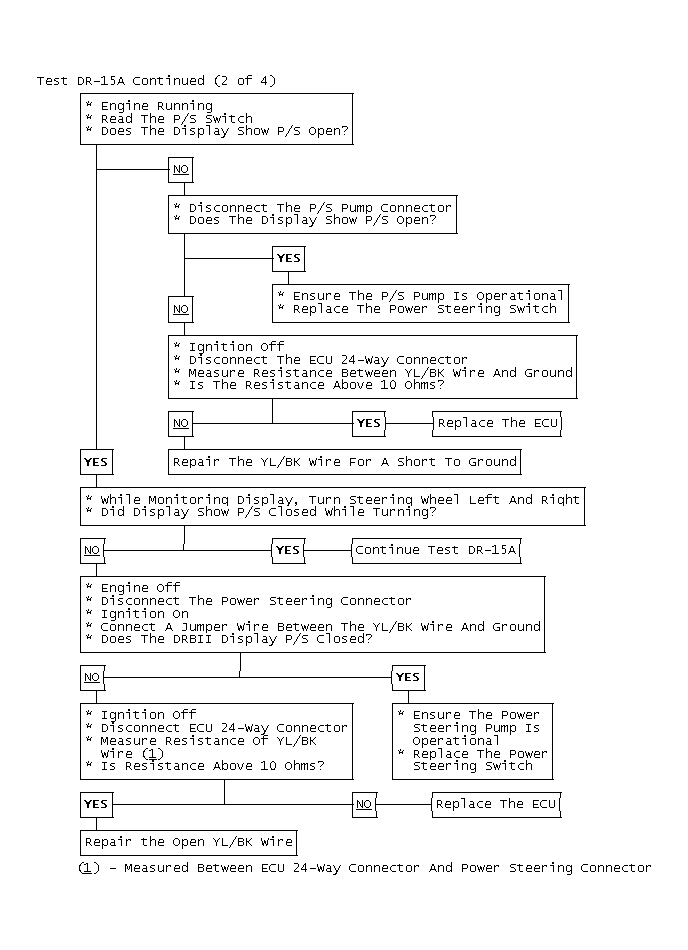

Fig 4: Test DR-15A Continued (2 of 4)

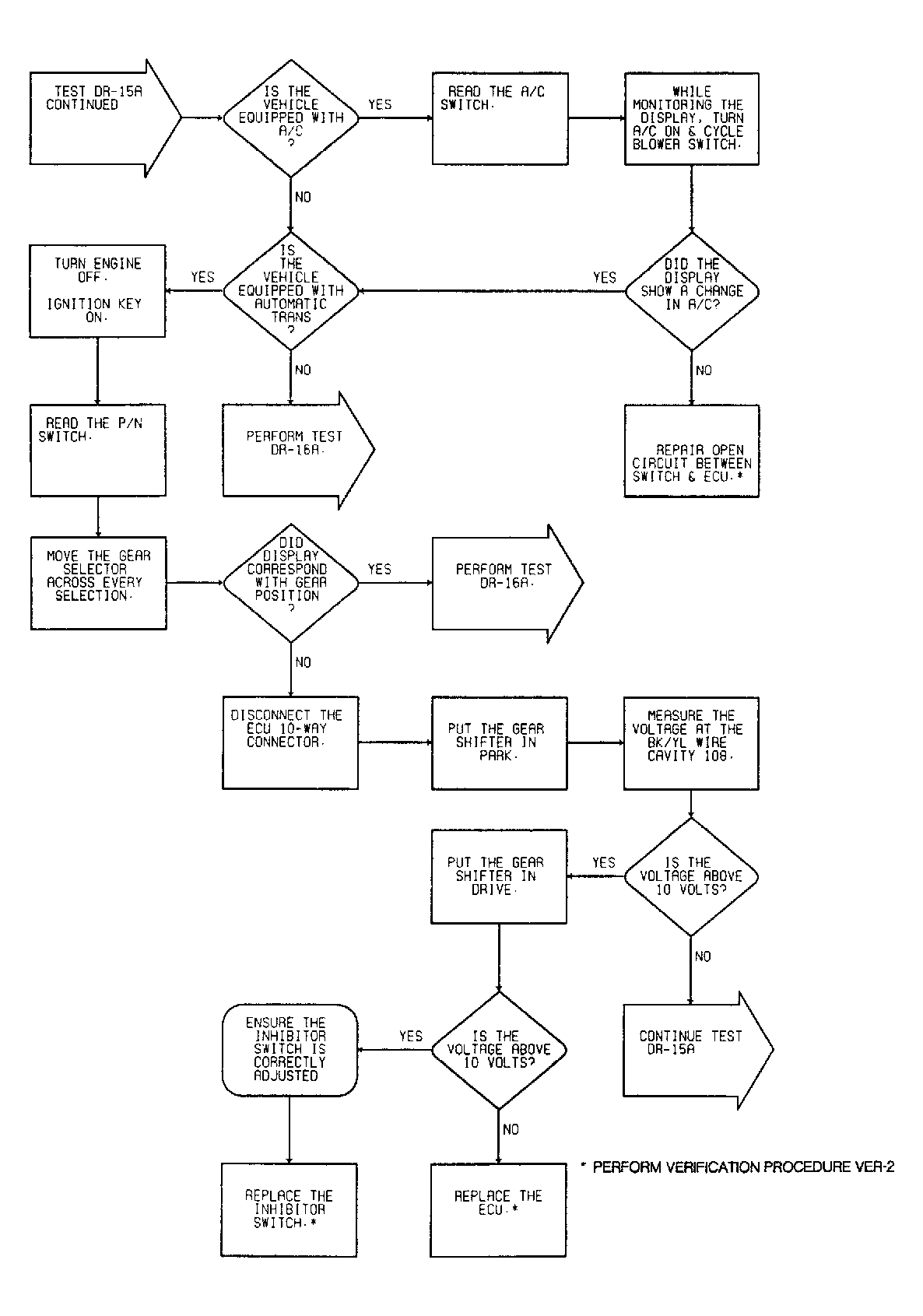

Fig 5: Driveability Test DR-15A: Diagnostic Flow Chart (3 of 4)

Fig 6: Test DR-15A Continued (3 of 4)

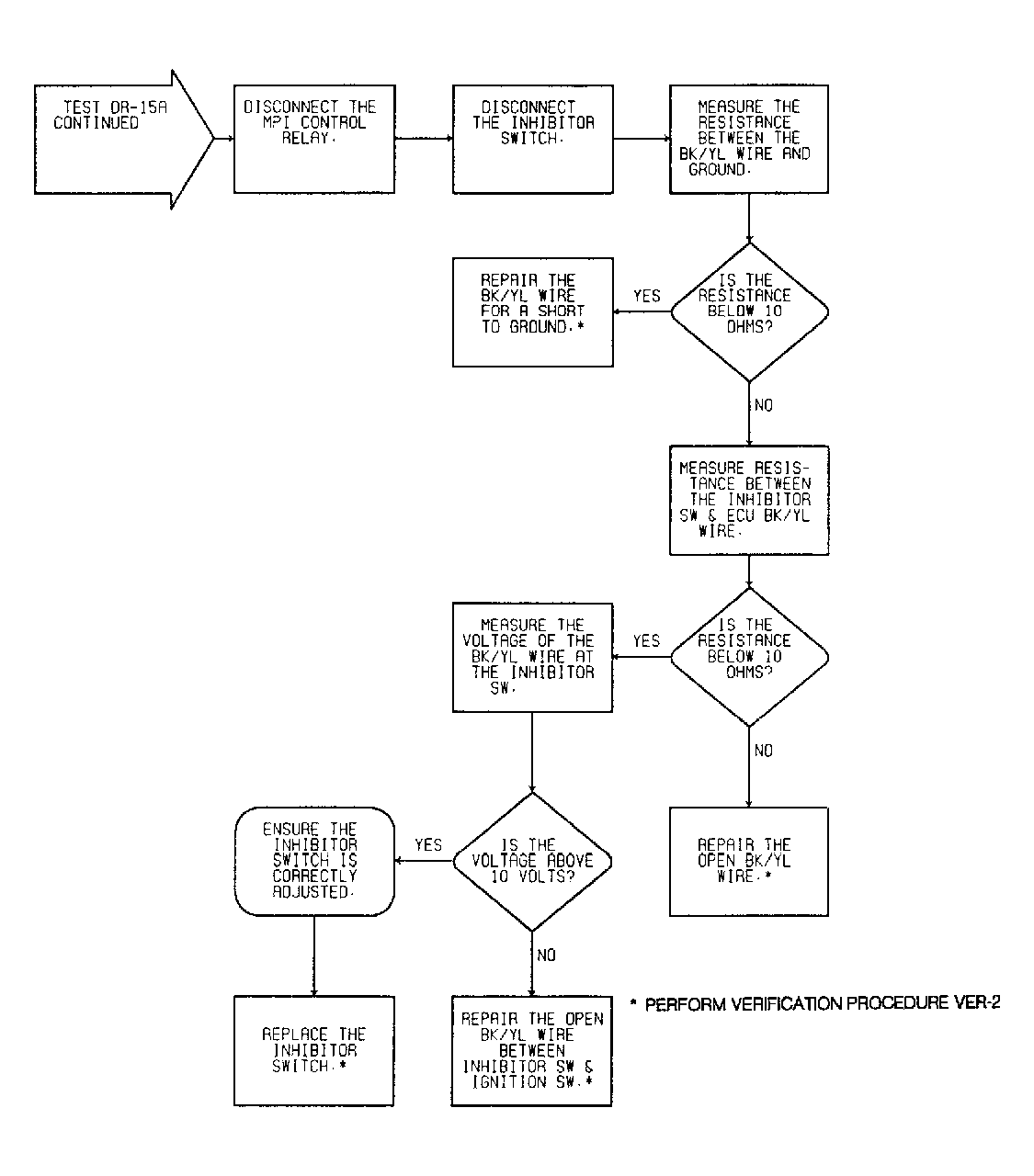

Fig 7: Driveability Test DR-15A: Diagnostic Flow Chart (4 of 4)

Fig 8: Test DR-15A Continued (4 of 4)
