Dr-12A: Testing Fuel Pump Sense

Fig 1: Driveability Test DR-12A: Circuit Diagram

G91G10773

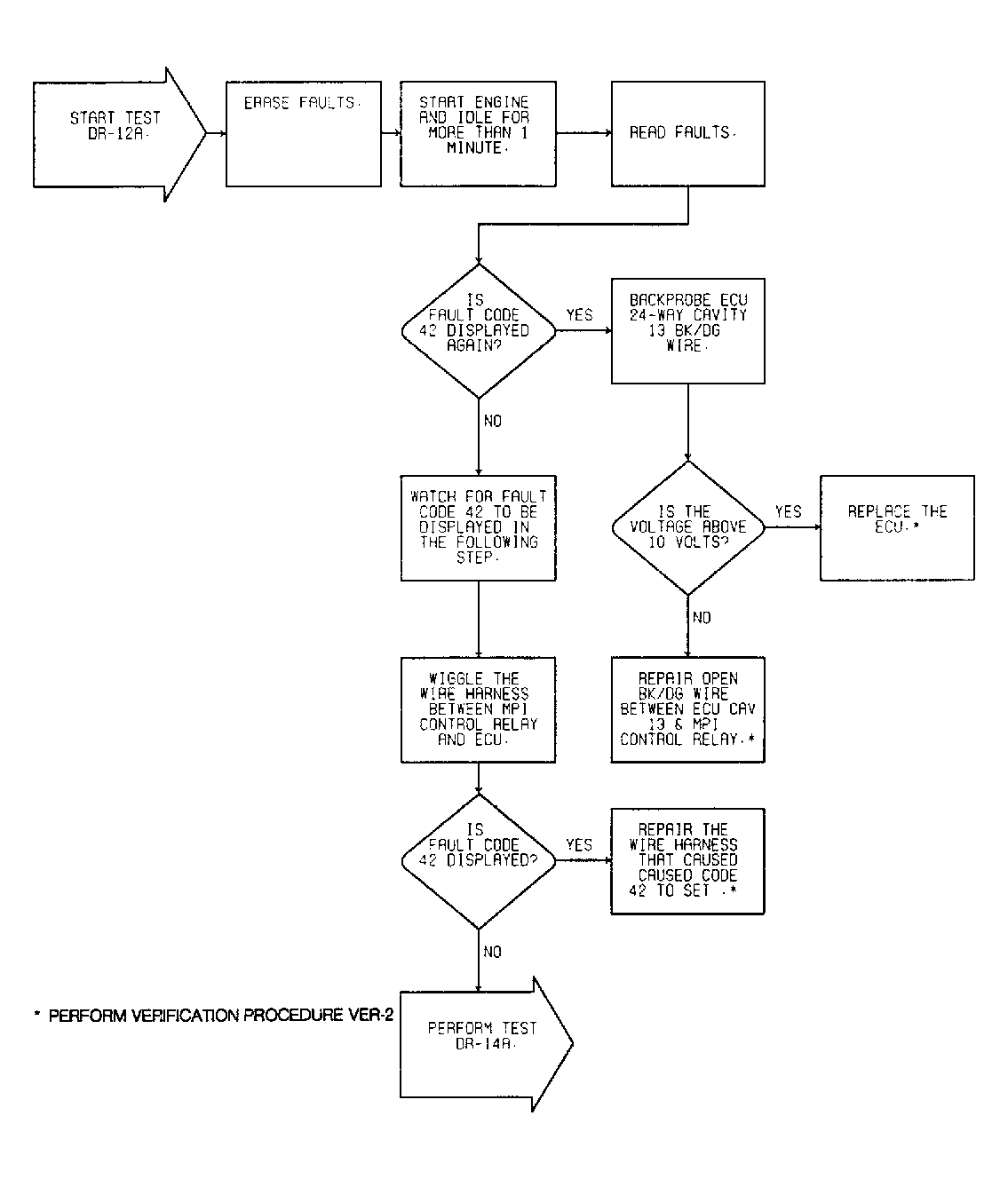

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart

G91F11127

Fig 3: Test DR-12A

GB0044654
