Door Lock Relay
Door Lock Relay

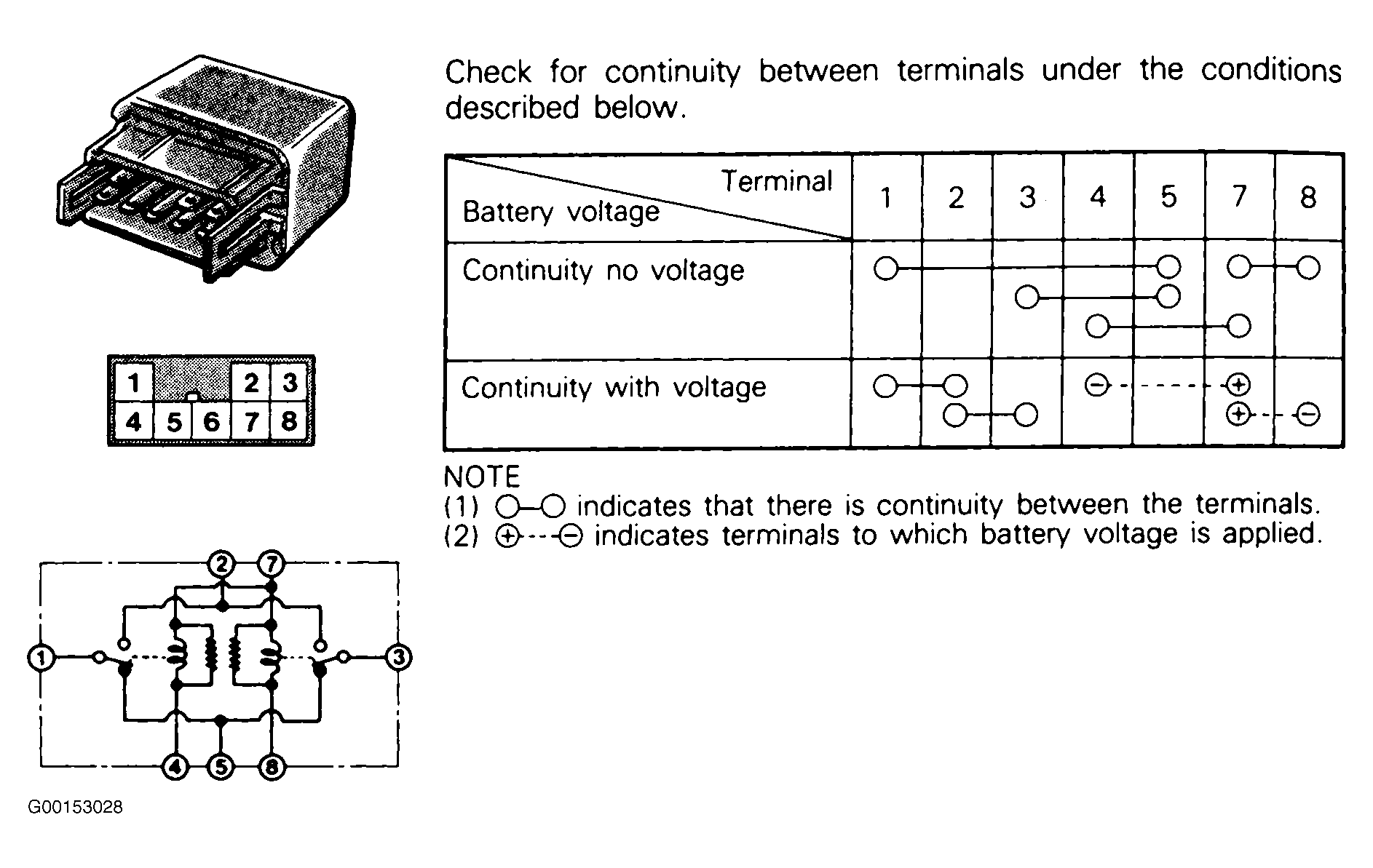

Fig 1: Testing Door Lock Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
