Wiring Diagrams

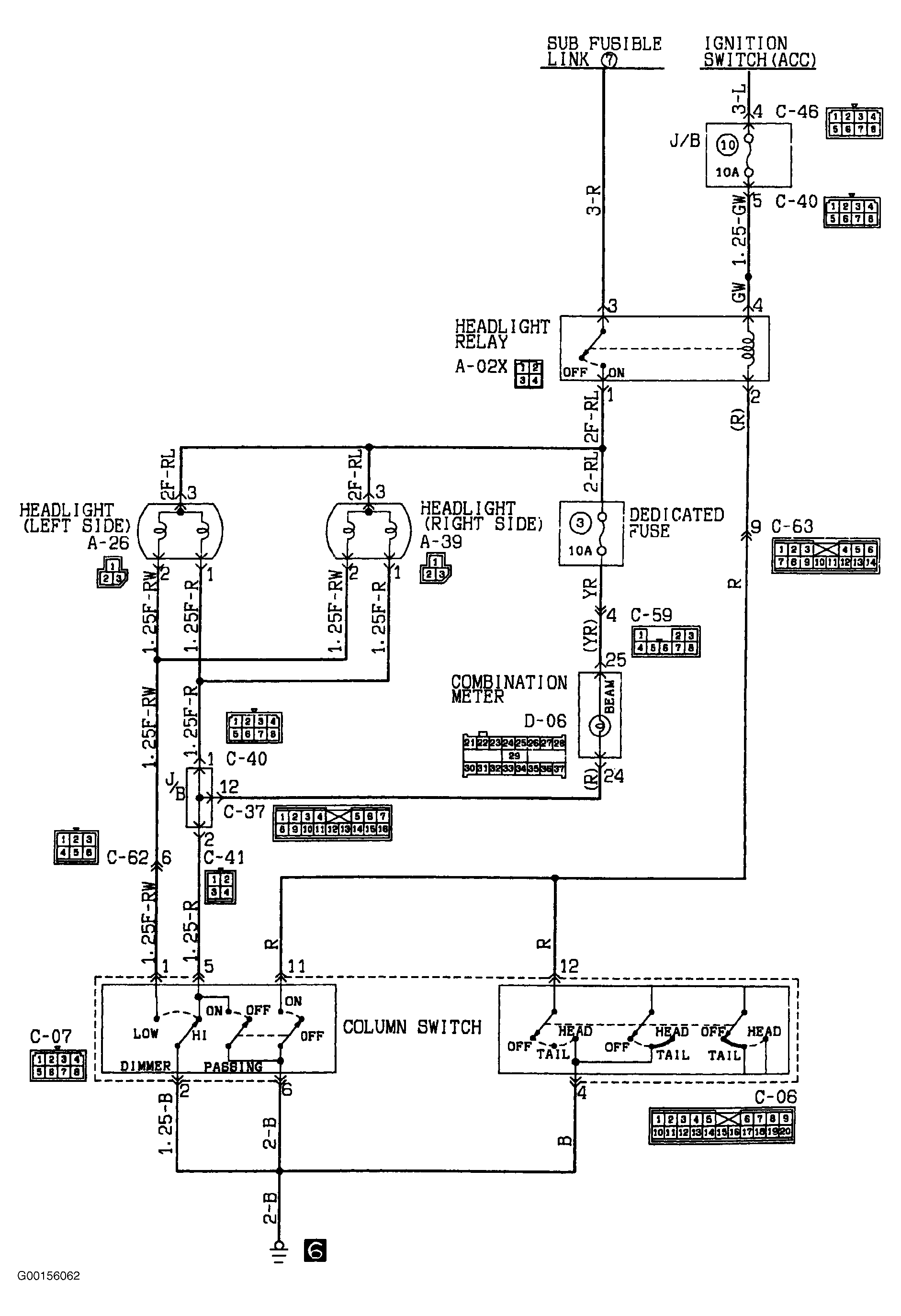

Fig 1: Identifying Headlight Wiring Diagram Circuit

G00156062

Courtesy of CHRYSLER CORP.

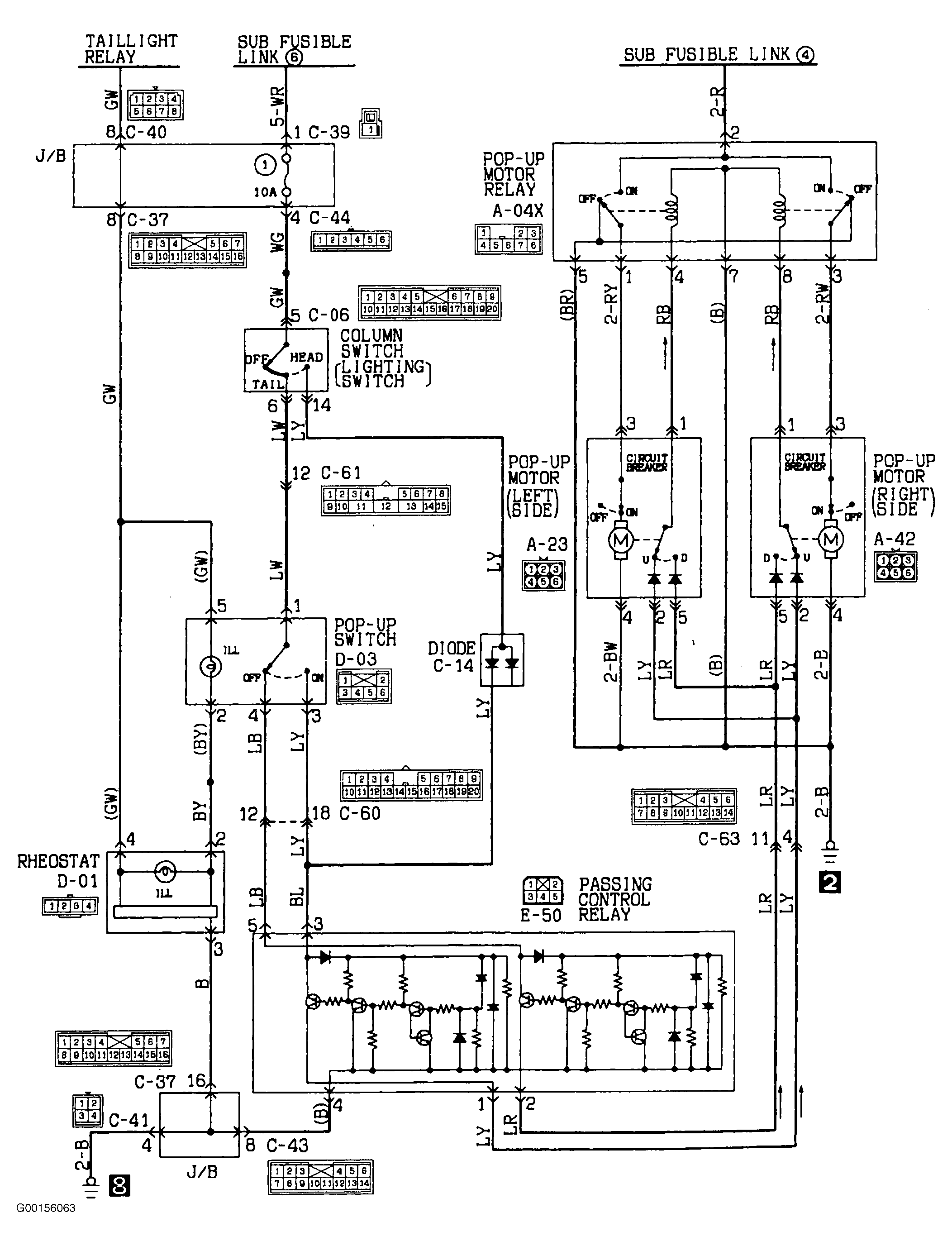

Fig 2: Identifying Pop-Up Mechanism Wiring Circuit

G00156063

Courtesy of CHRYSLER CORP.
