Headlight Assembly: Installation

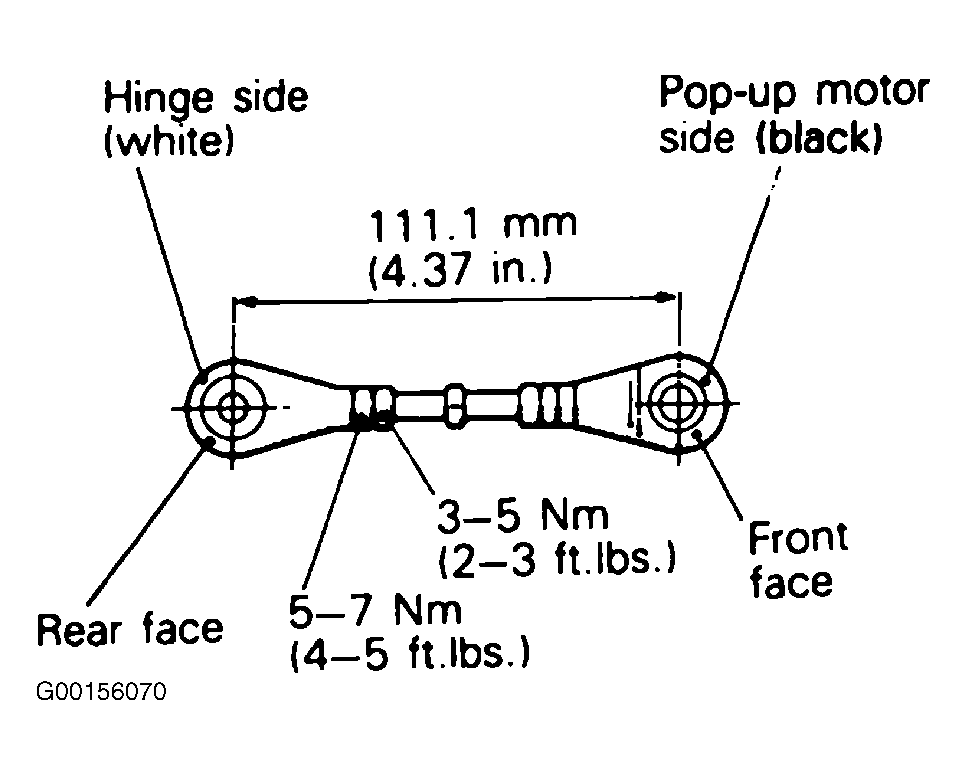

  1. Check the link assembly for proper length. See Fig 1 .
    Fig 1: Identifying Link Assembly Correct Length
    G00156070Courtesy of CHRYSLER CORP.

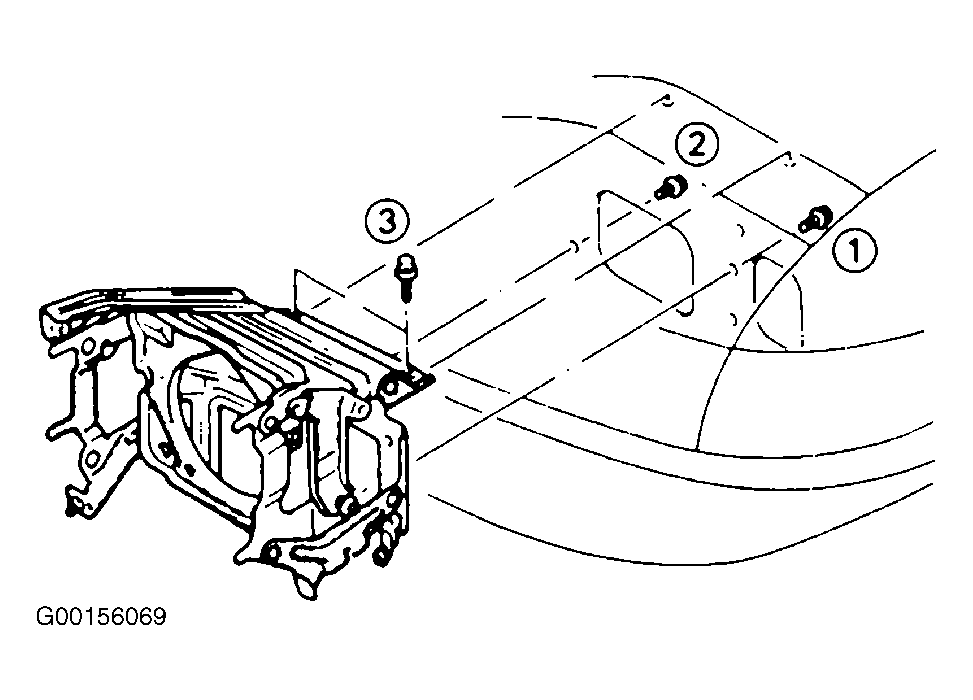

  2. Mount hinge by tightening the hinge mounting bolts in sequence. See Figure .

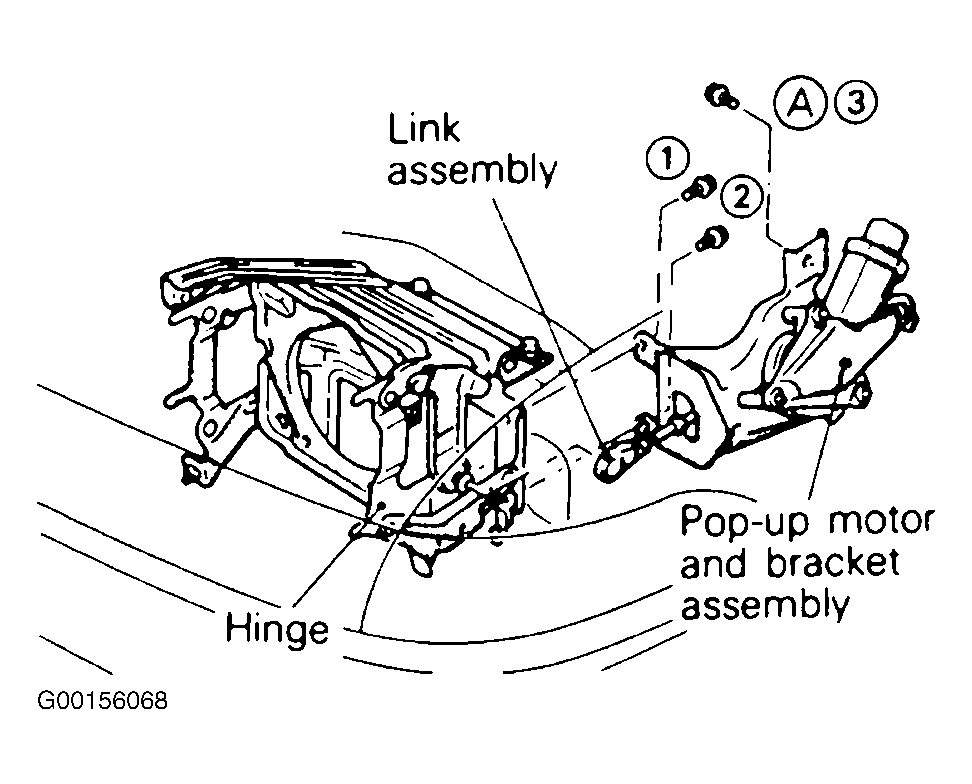

  3. After attaching the link assembly to the hinge, loosely tighten bolt A. Then, mount the pop-up motor and bracket assembly by tightening the bolts in sequence. See Figure .
  4. To install, reverse the removal procedure.
