Eagle
>>
1990
>>
Talon Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 2.0L
>>
No Start Tests
>>
NS-3: Fuel Test
NS-3: Fuel Test

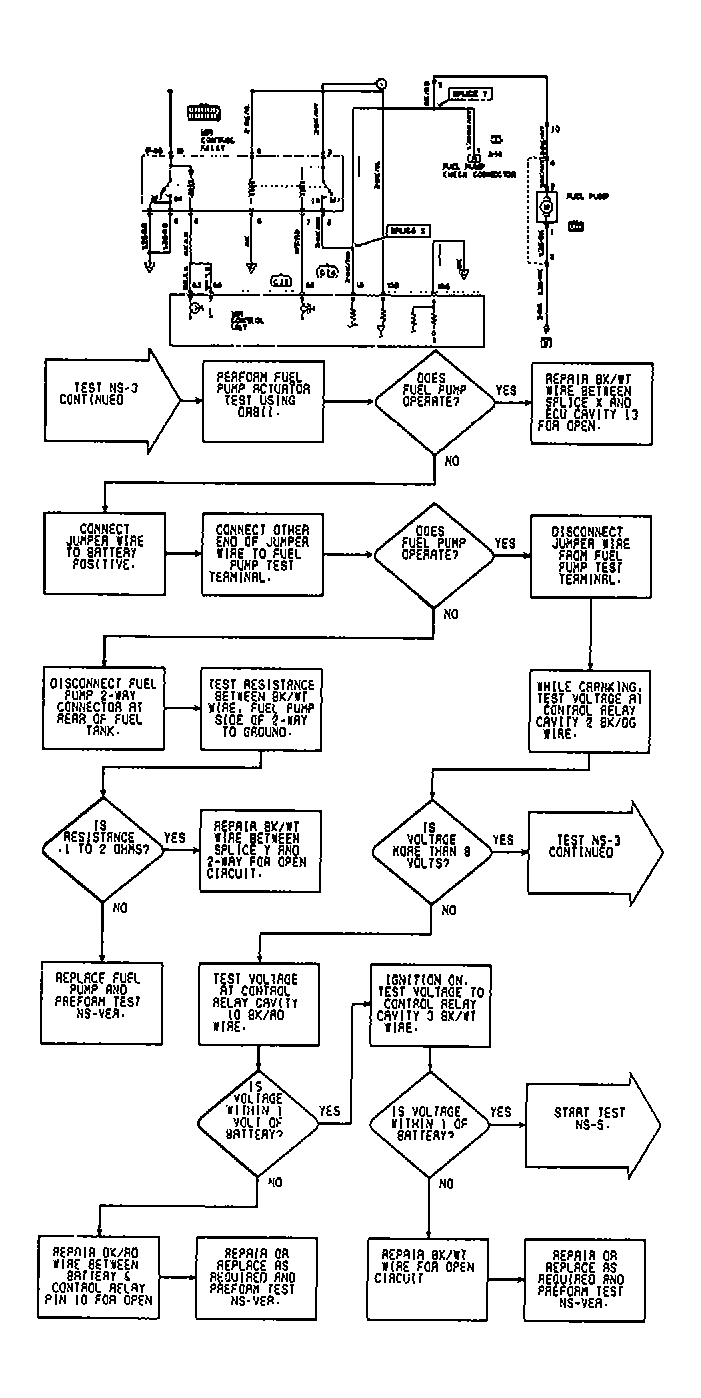

Fig 1: NS-3 Flow Chart & Circuit Diagram (1 of 3)

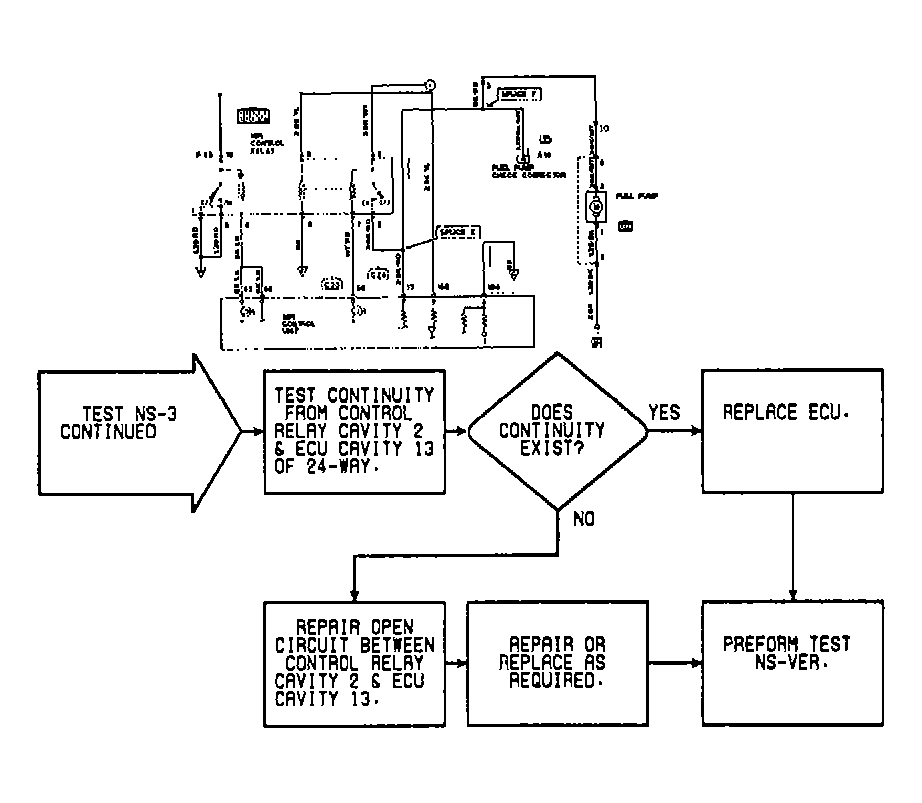

Fig 2: NS-3 Flow Chart & Circuit Diagram (2 of 3)

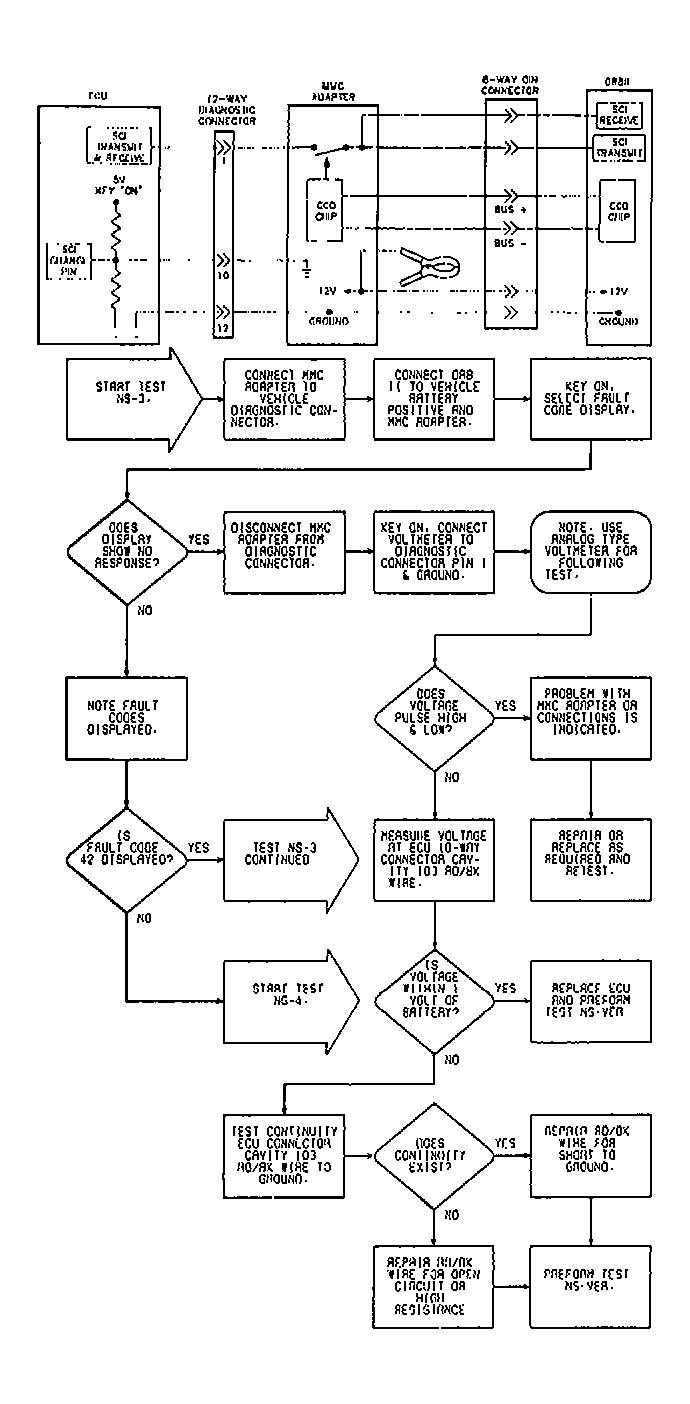

Fig 3: NS-3 Flow Chart & Circuit Diagram (3 of 3)
