Engine Controls - Tests W/Codes - 2.0L
>>
DRIVEABILITY Tests
>>
Dr-9: Checking Crank Angle Sensor
Dr-9: Checking Crank Angle Sensor

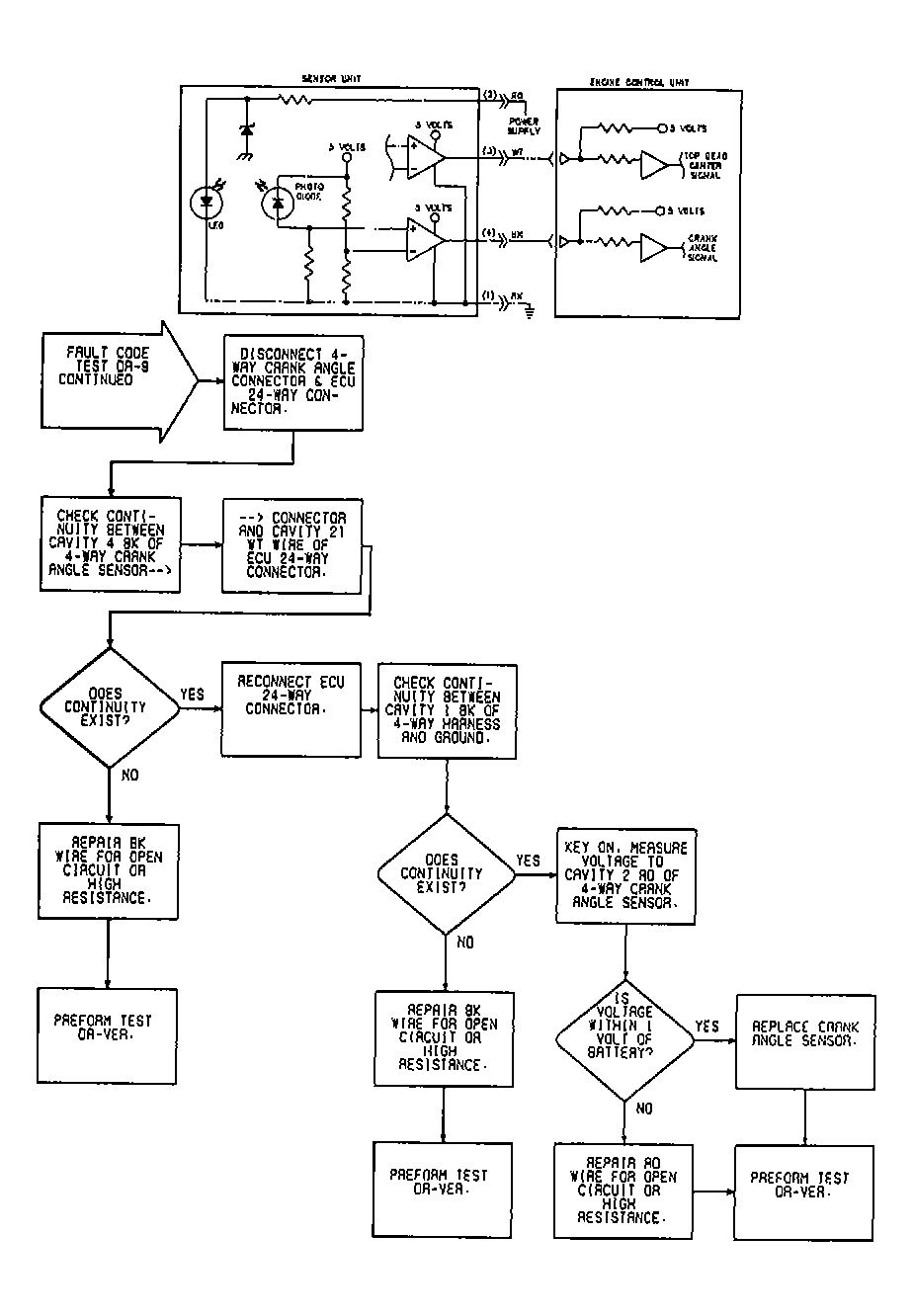

Fig 1: DR-9 Flow Chart & Circuit Diagram (1 of 2)

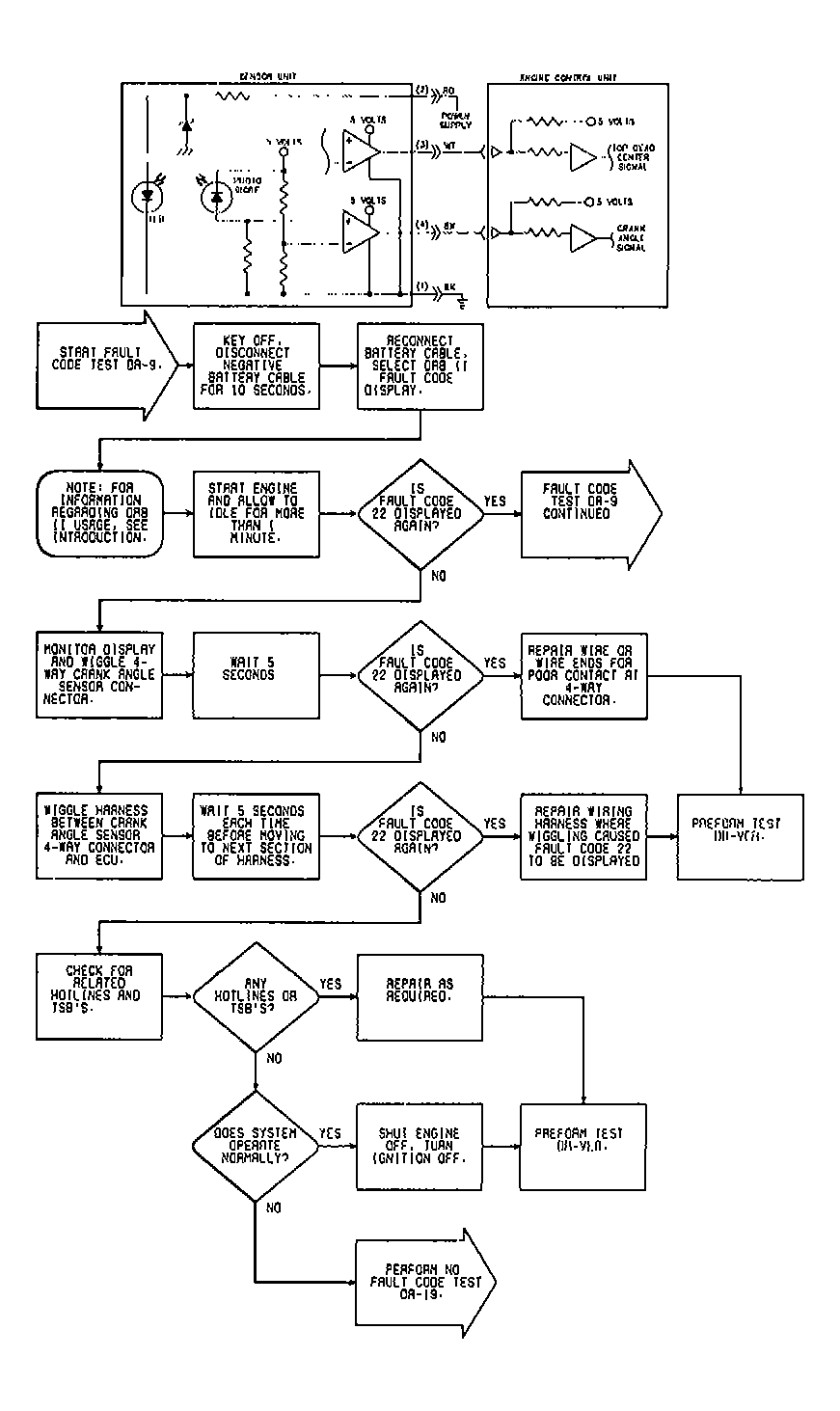

Fig 2: DR-9 Flow Chart & Circuit Diagram (2 of 2)
