Dr-19: No-Fault Code, DRB-II ATM Not Running Test
Dr-19: No-Fault Code, DRB-II ATM Not Running Test

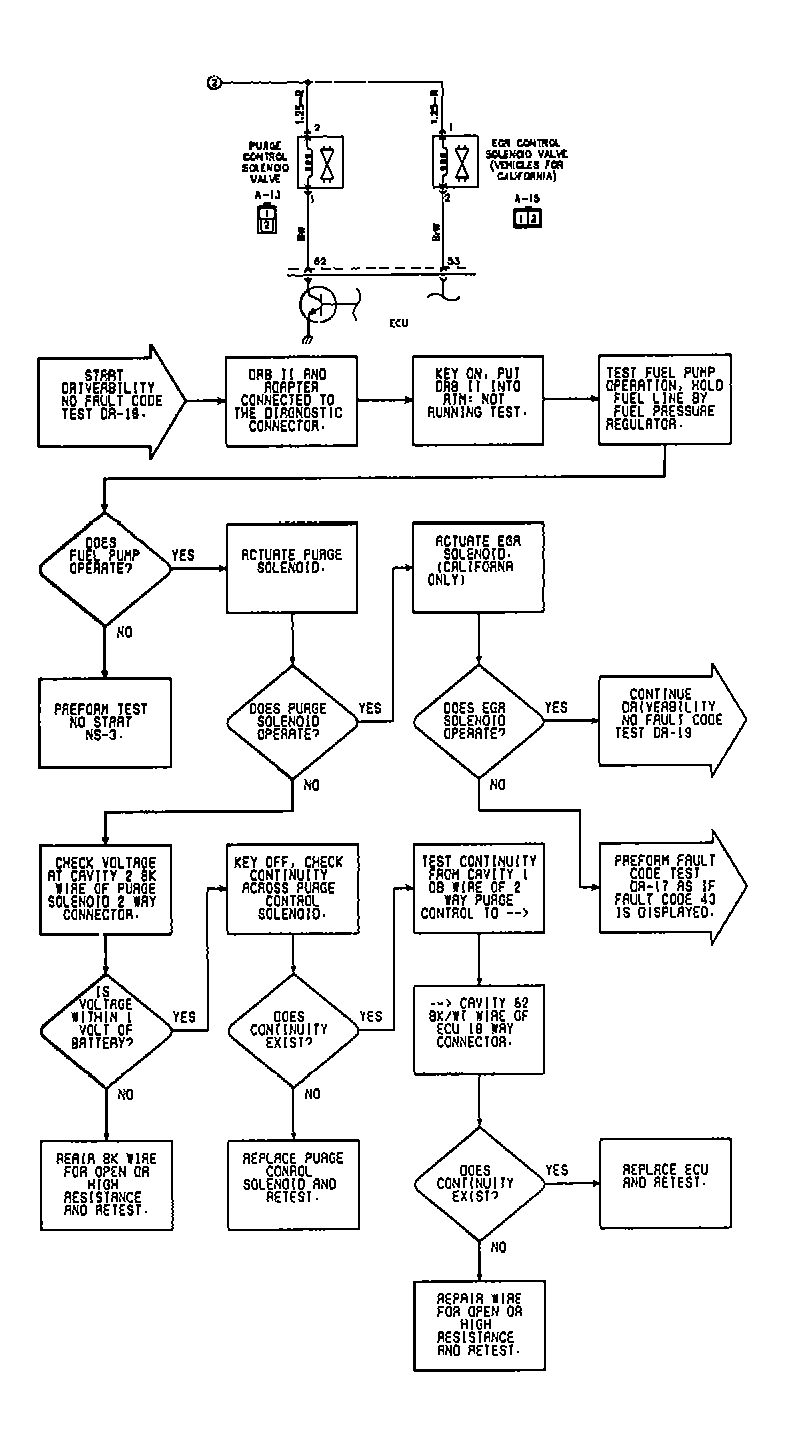

Fig 1: DR-19 Flow Chart & Circuit Diagram (1 of 3)

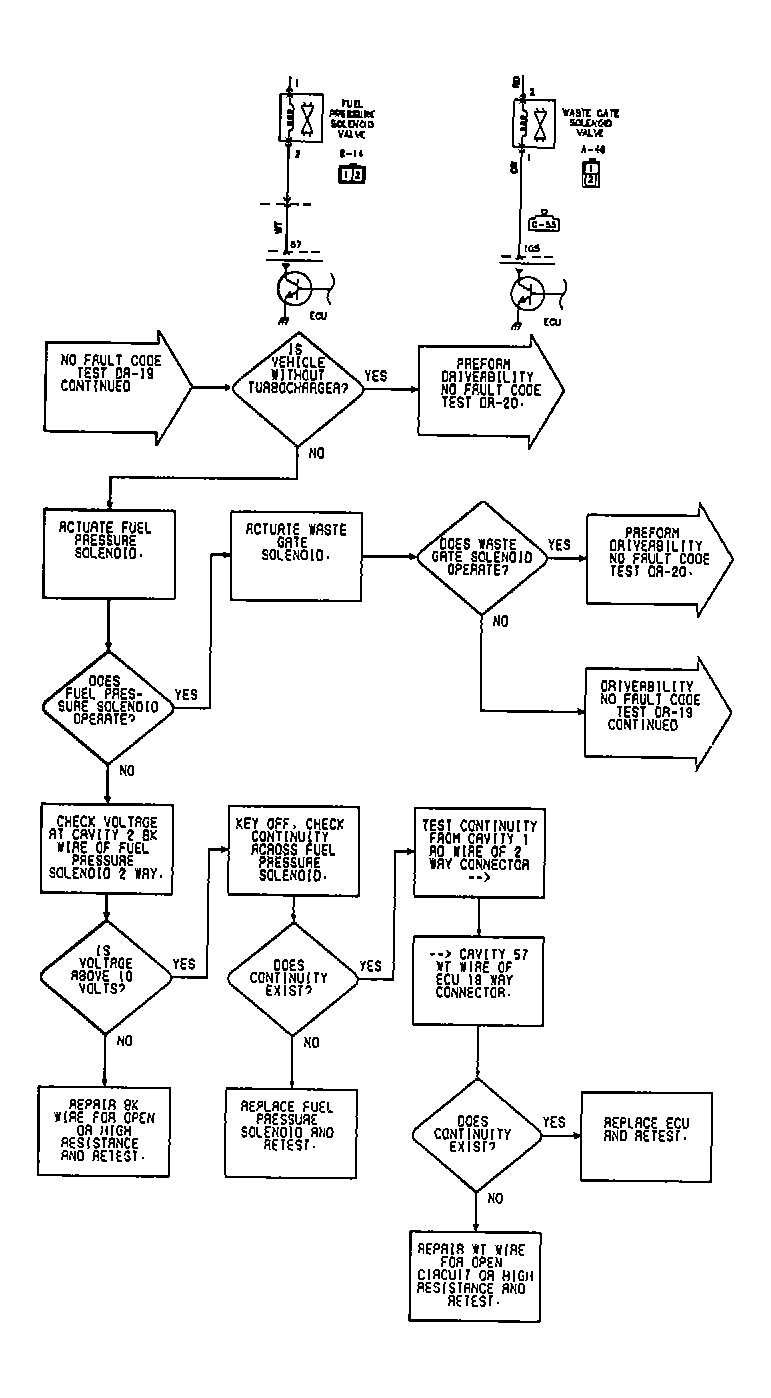

Fig 2: DR-19 Flow Chart & Circuit Diagram (2 of 3)

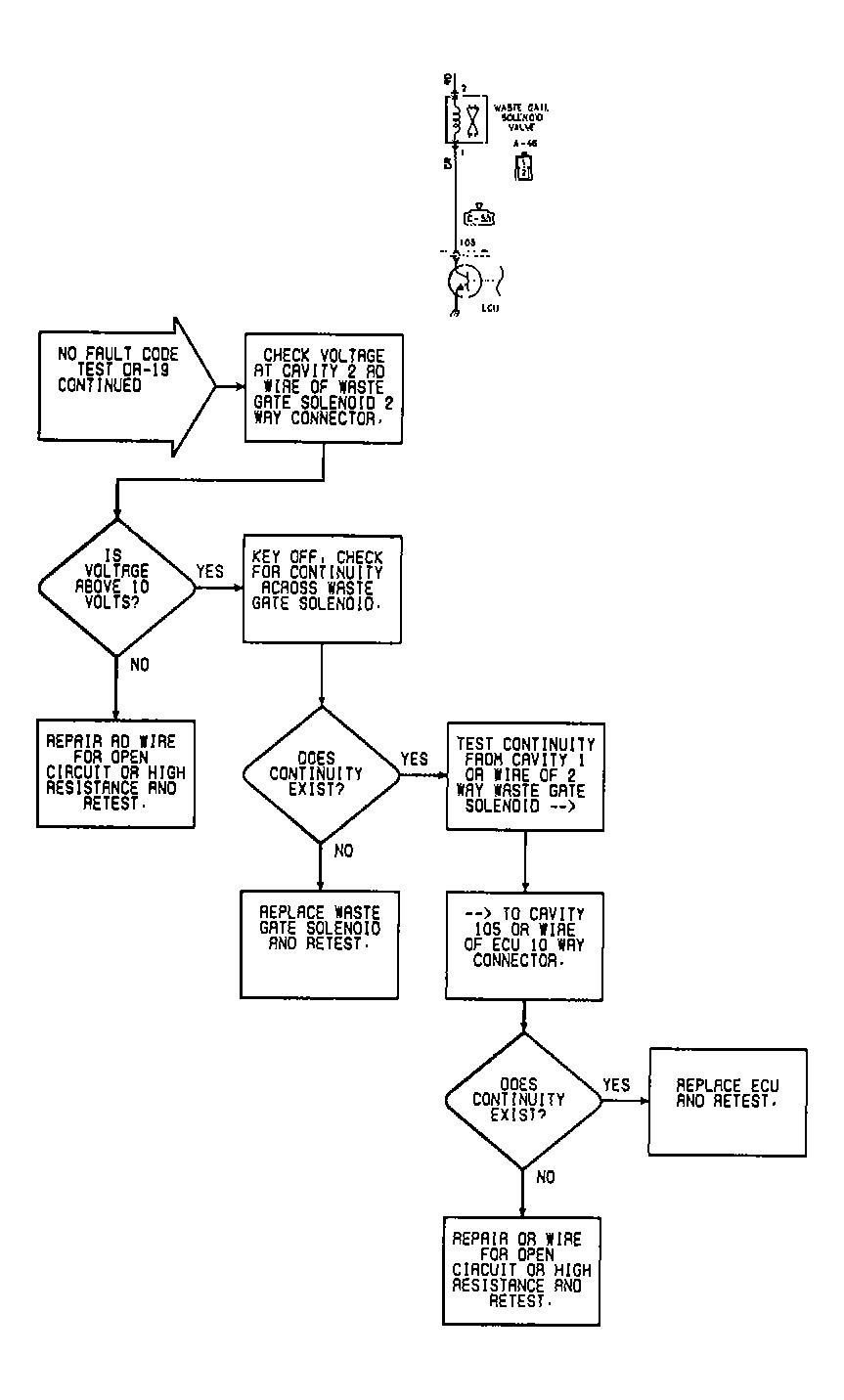

Fig 3: DR-19 Flow Chart & Circuit Diagram (3 of 3)
