System
>>
Engine Controls - Tests W/Codes - 2.0L
>>
DRIVEABILITY Tests
>>
Dr-16: Checking Fuel Pump Control Circuit
Dr-16: Checking Fuel Pump Control Circuit

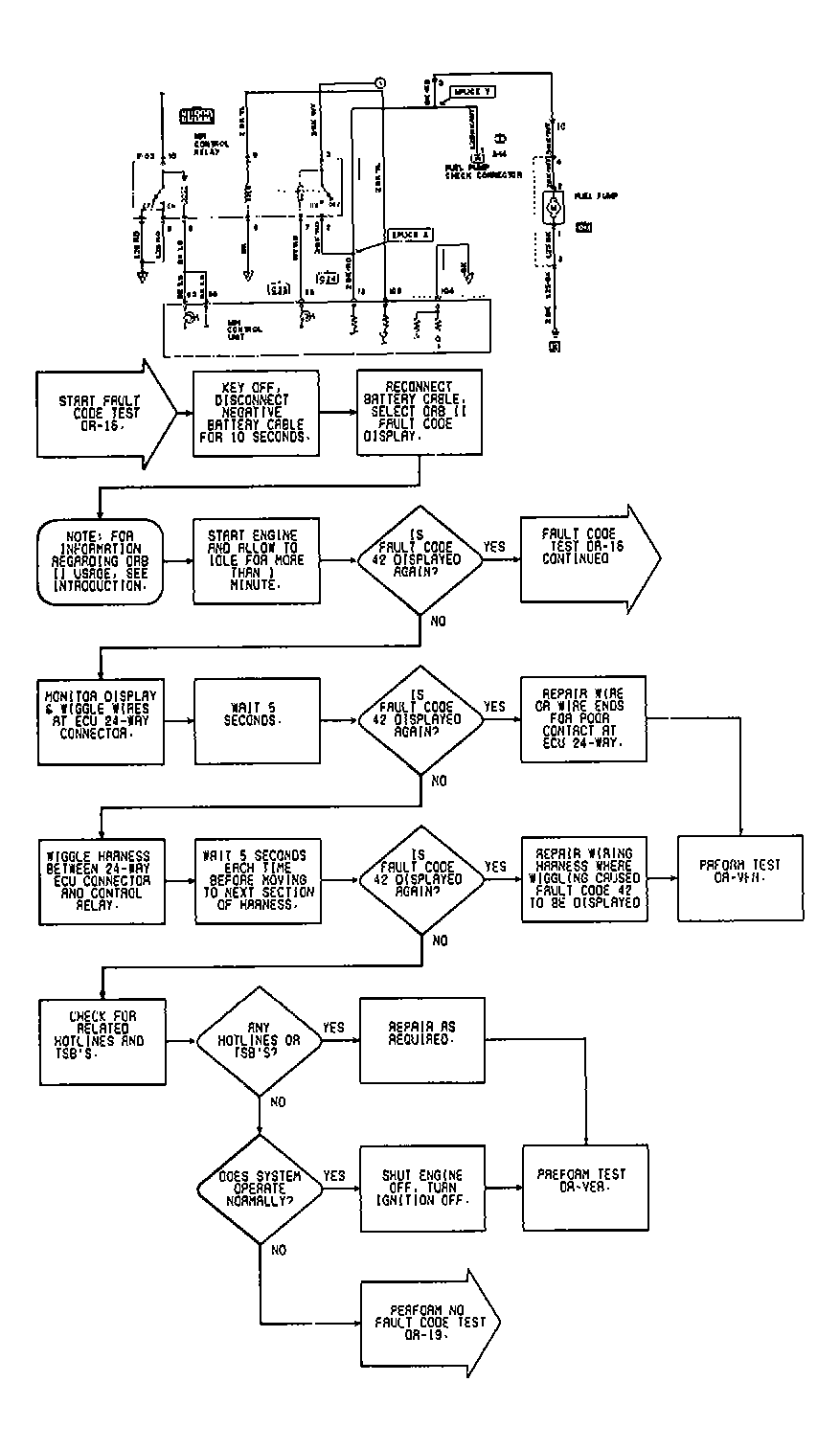

Fig 1: DR-16 Flow Chart & Circuit Diagram (1 of 2)

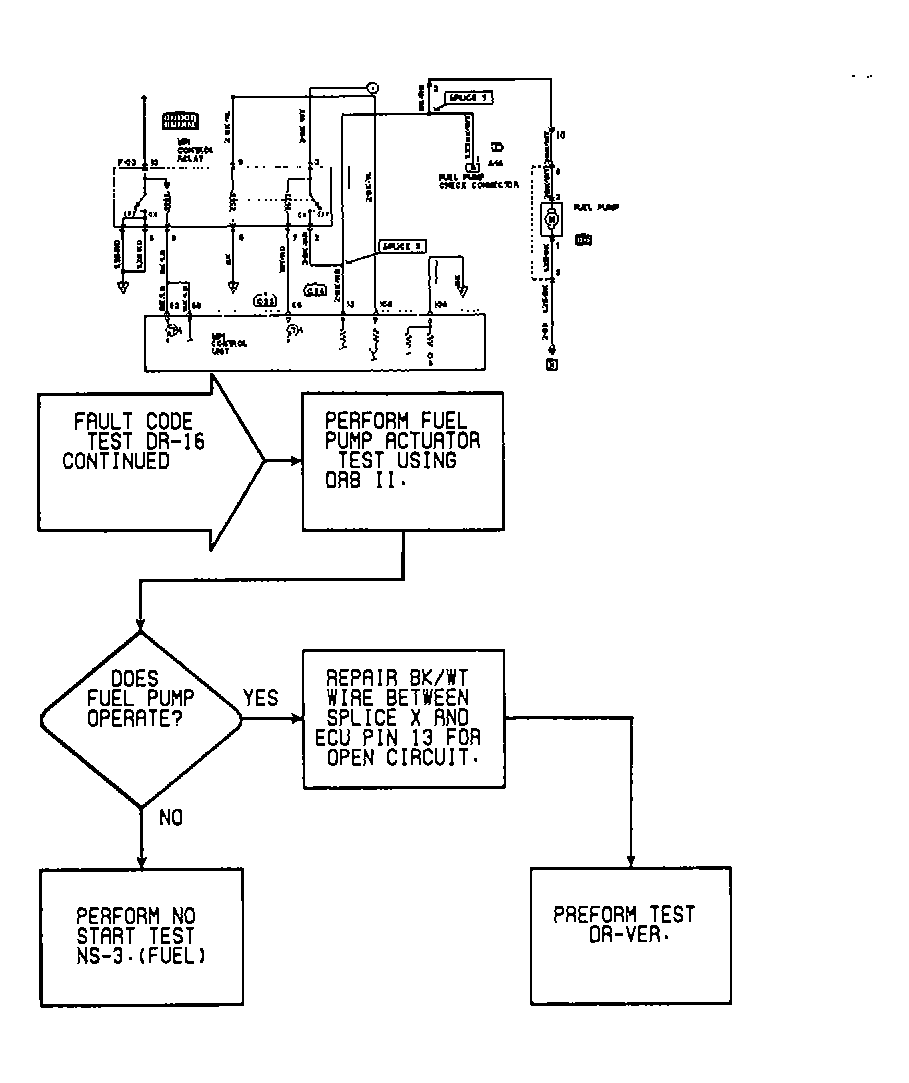

Fig 2: DR-16 Flow Chart & Circuit Diagram (2 of 2)
