Dr-15: Checking Injector Circuit

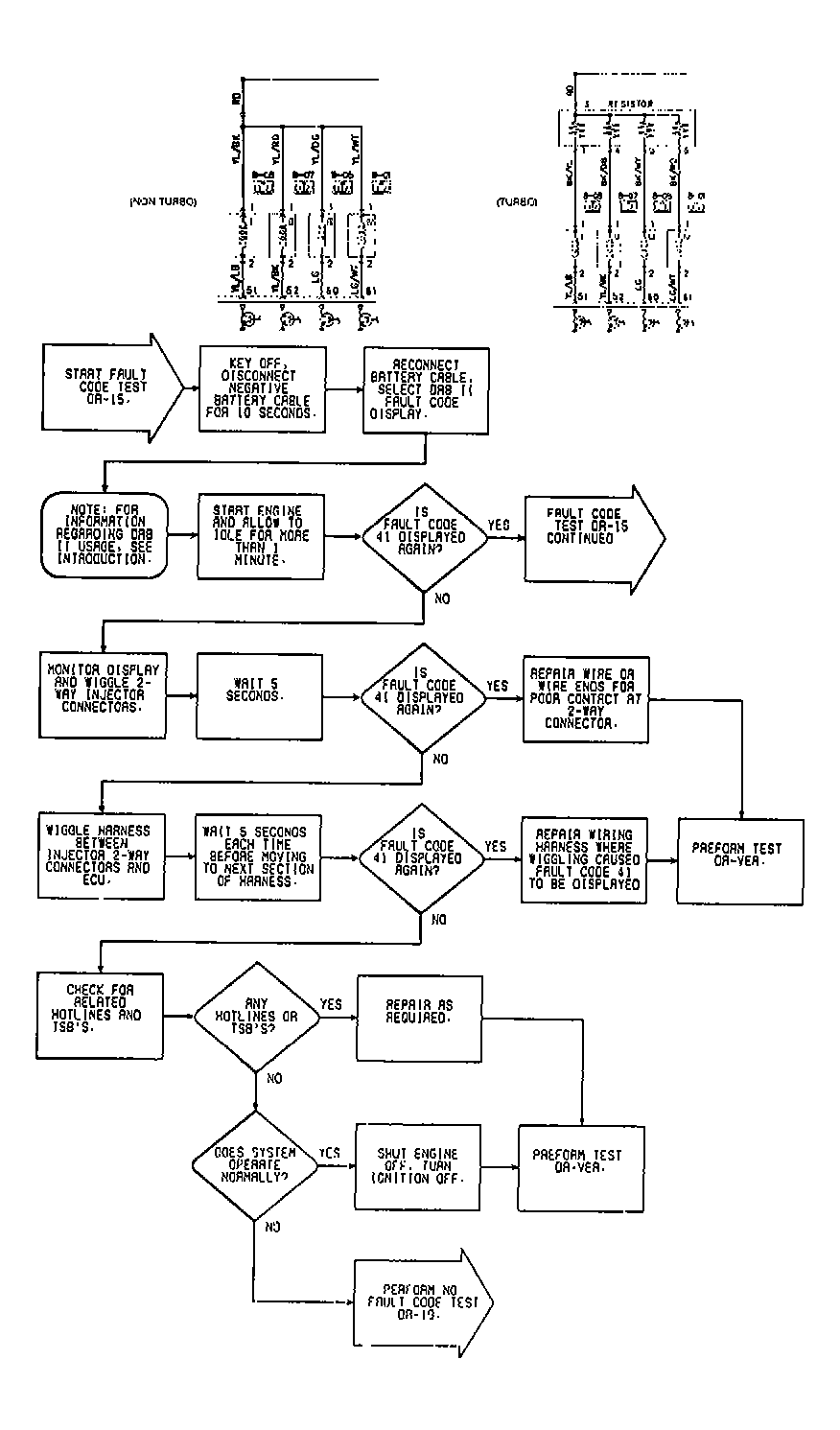

Fig 1: DR-15 Flow Chart & Circuit Diagram (1 of 5)
G90C12692

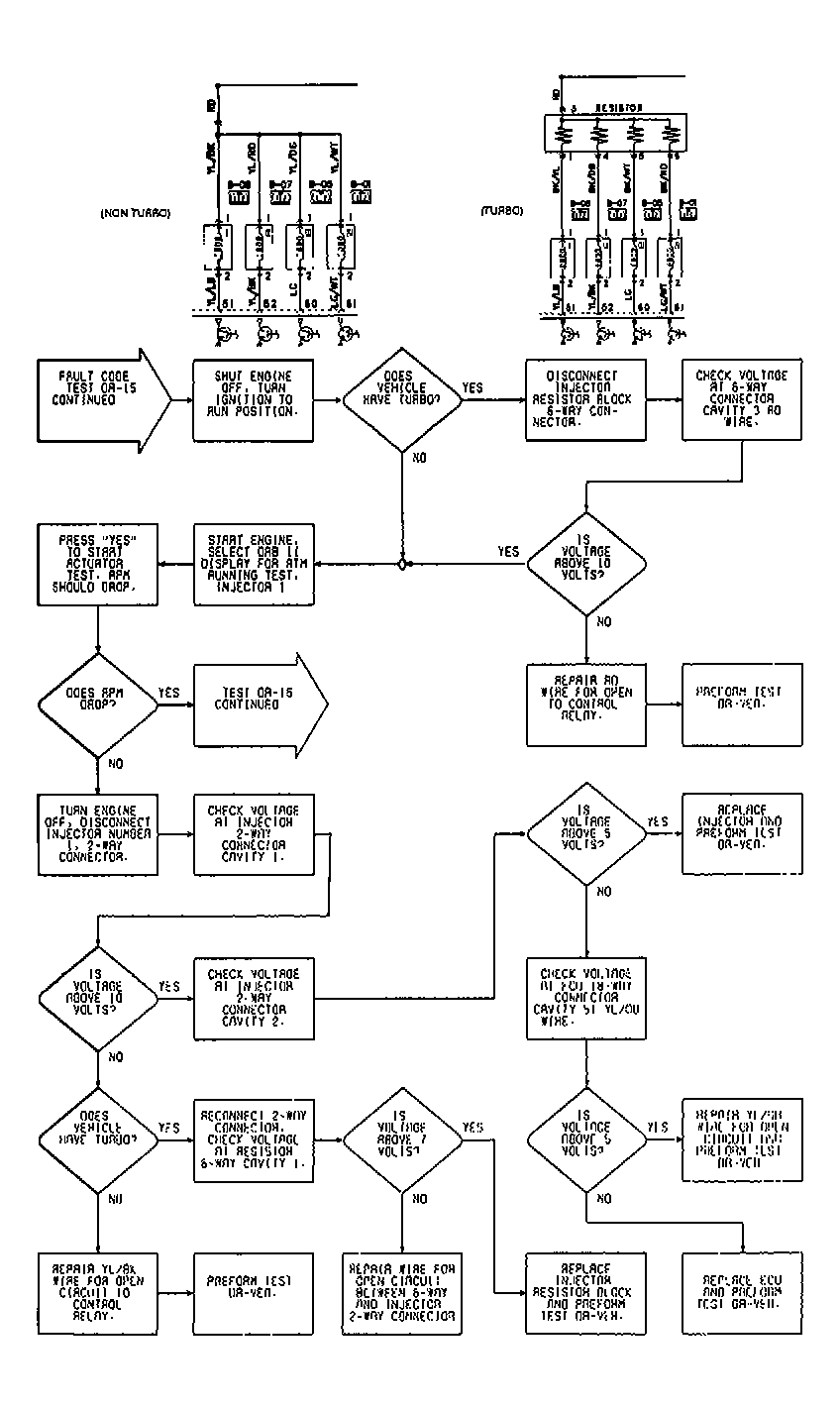

Fig 2: DR-15 Flow Chart & Circuit Diagram (2 of 5)
G90D12693

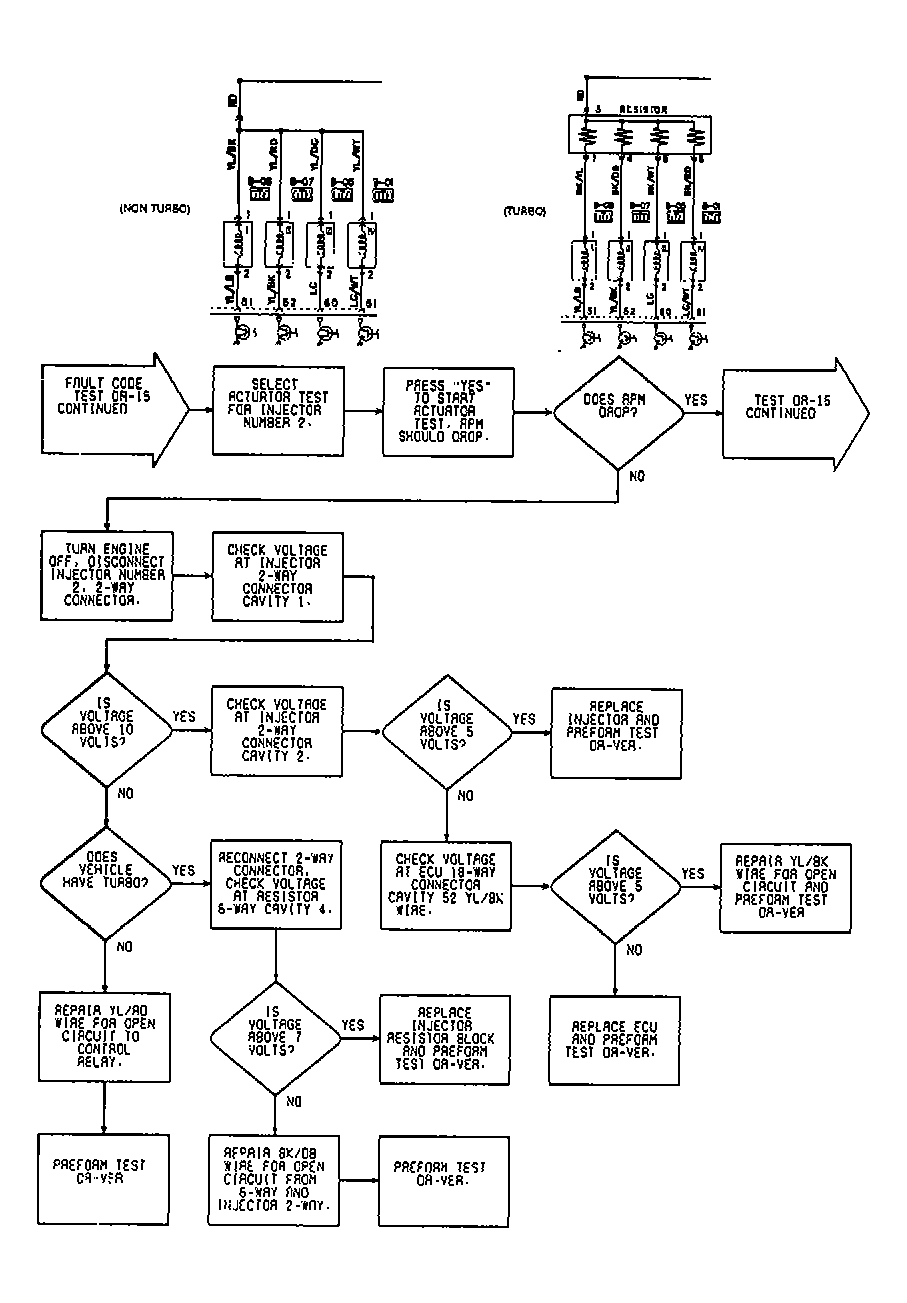

Fig 3: DR-15 Flow Chart & Circuit Diagram (3 of 5)
G90E12694

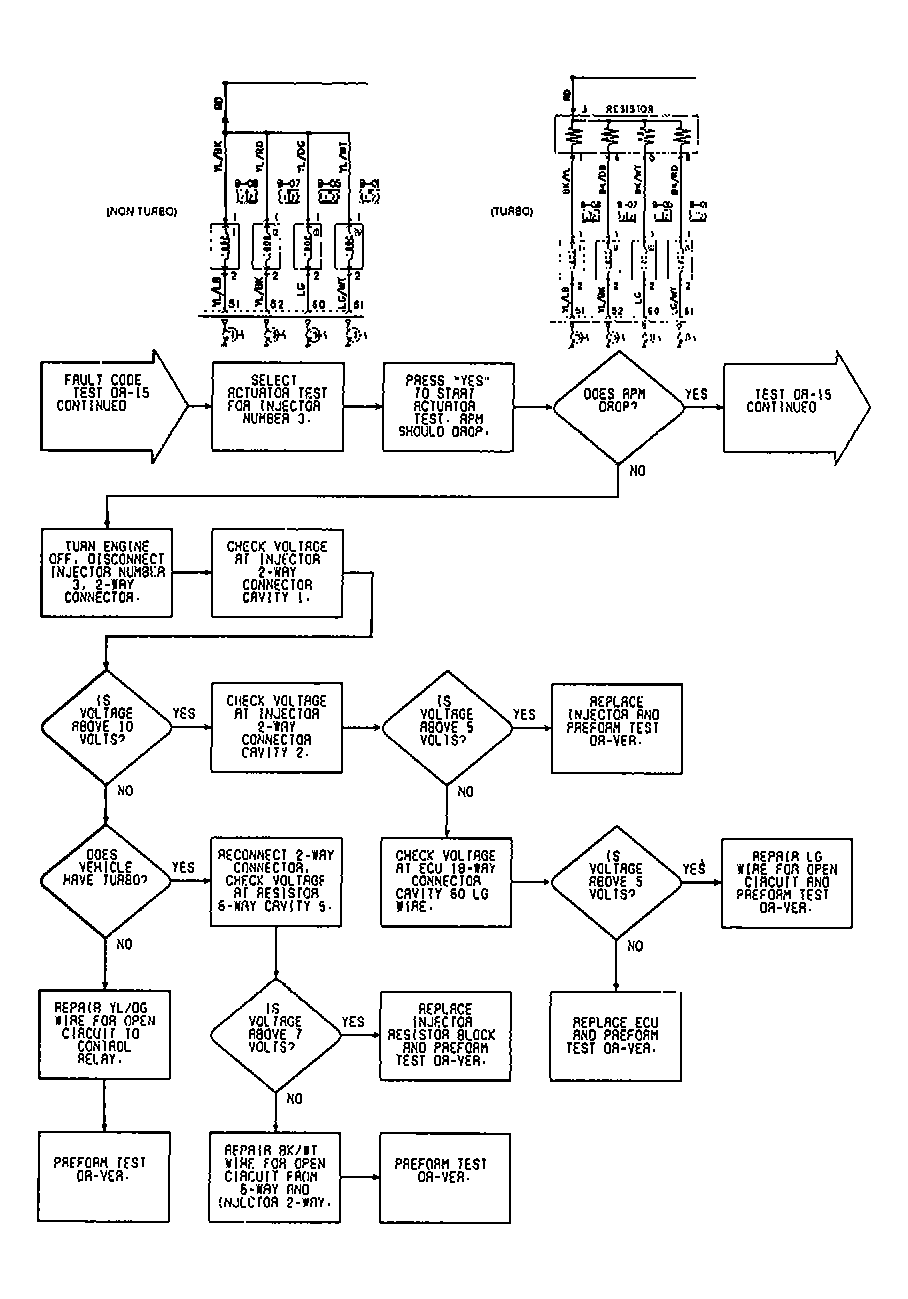

Fig 4: DR-15 Flow Chart & Circuit Diagram (4 of 5)
G90F12695

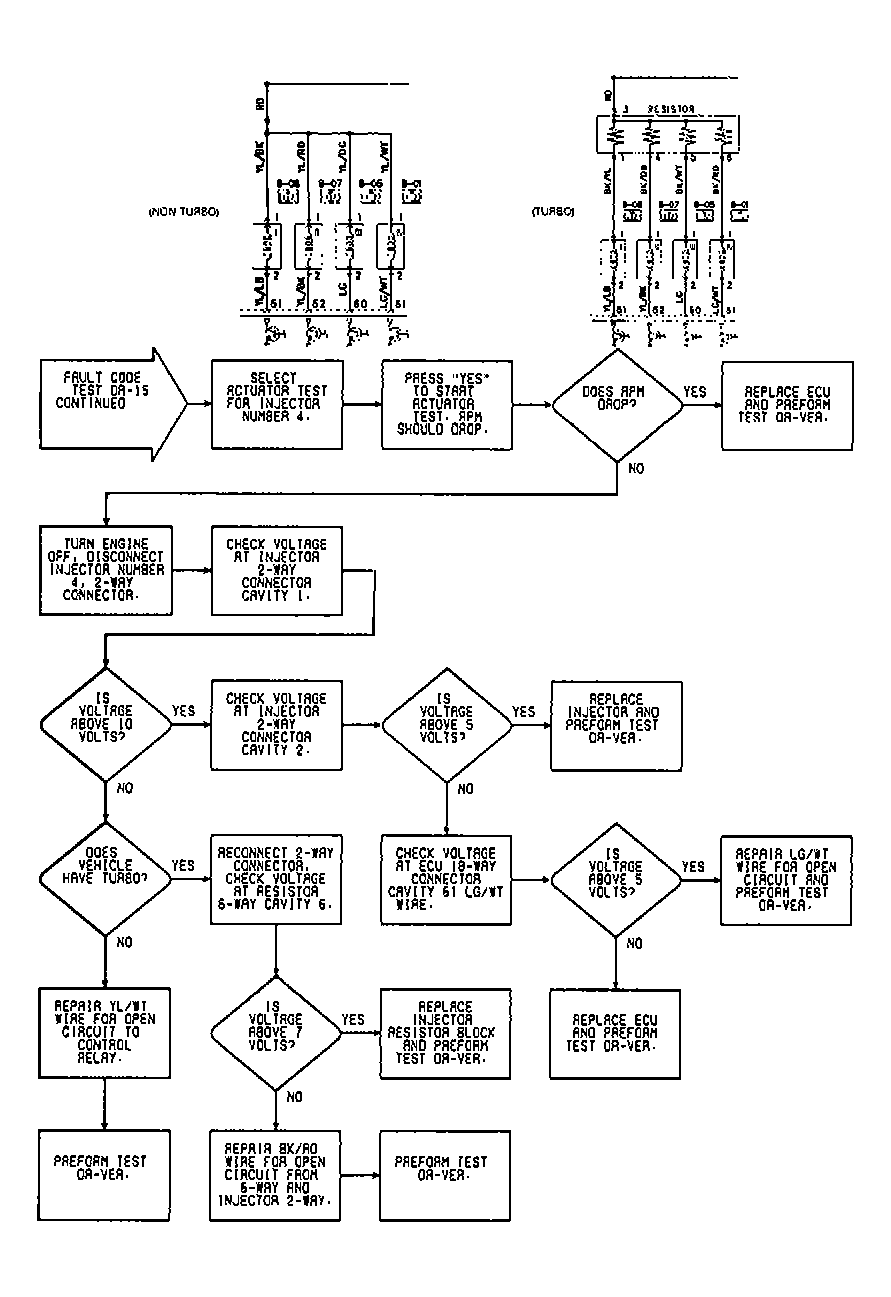

Fig 5: DR-15 Flow Chart & Circuit Diagram (5 of 5)
G90G12696
