Engine Controls - Tests W/Codes - 2.0L
>>
DRIVEABILITY Tests
>>
Dr-11: Checking Vehicle Speed Sensor
Dr-11: Checking Vehicle Speed Sensor

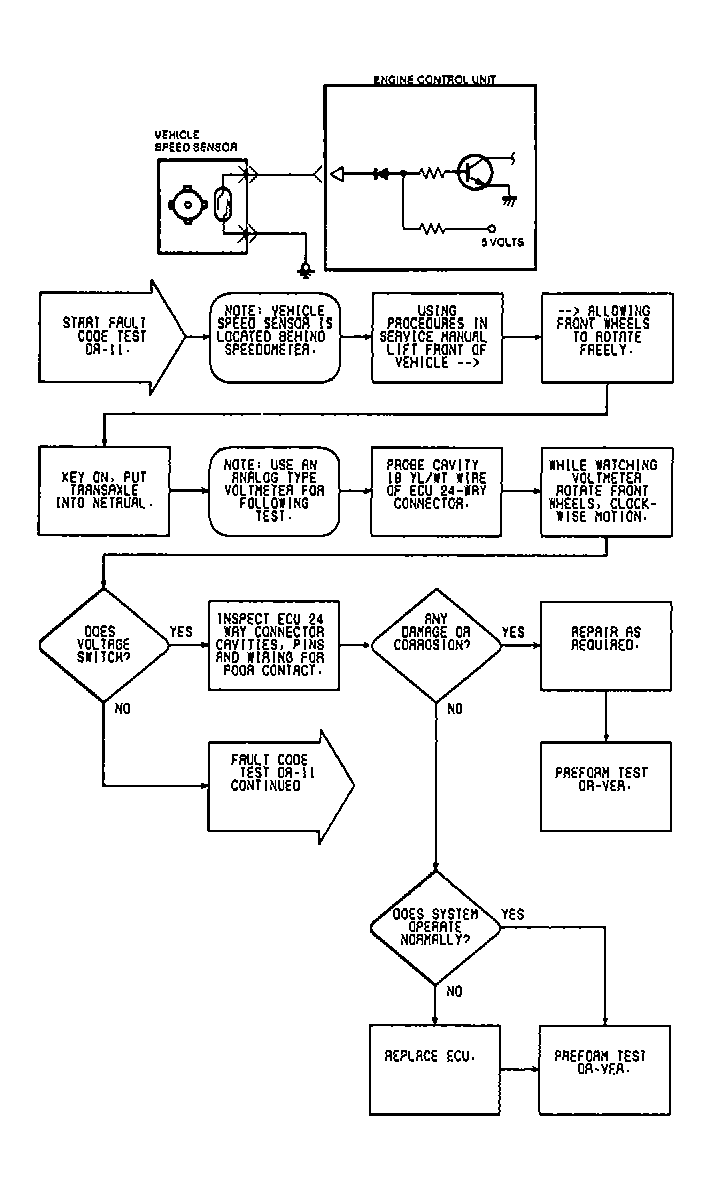

Fig 1: DR-11 Flow Chart & Circuit Diagram (1 of 2)

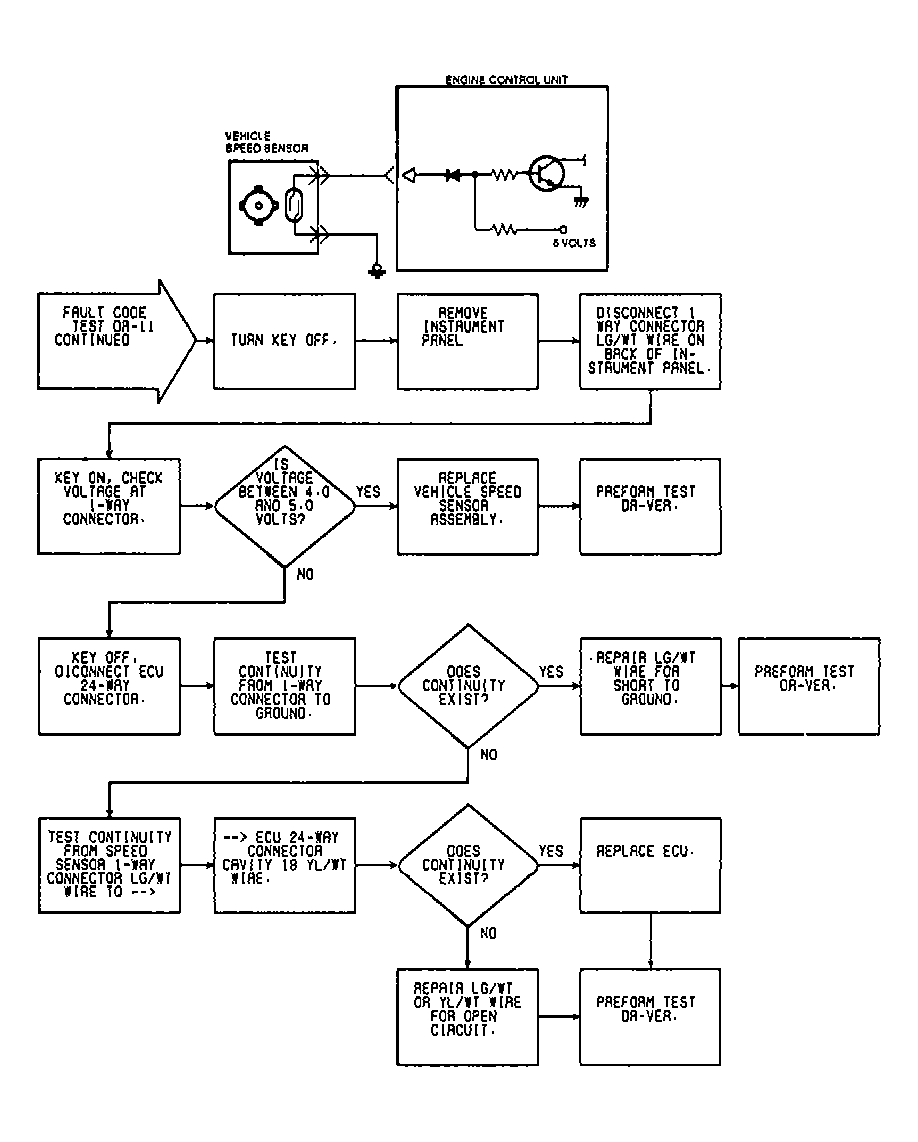

Fig 2: DR-11 Flow Chart & Circuit Diagram (2 of 2)
