Wiring Diagrams

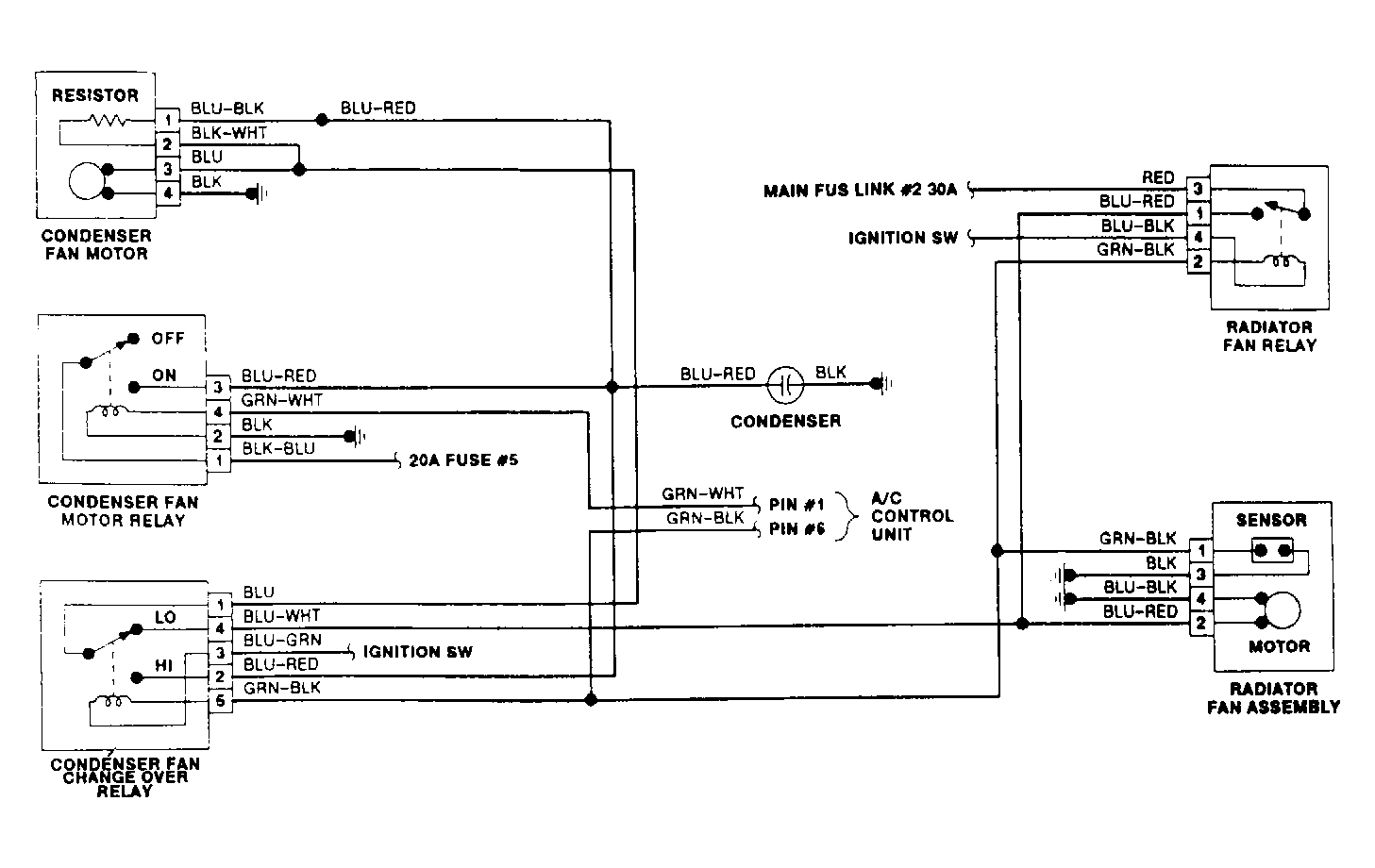

Fig 1: Laser & Talon (With A/C) Electric Cooling Fan Wiring Diagram

G90F02520

Fig 2: Laser & Talon (Without A/C) Electric Cooling Fan Wiring Diagram

G90H02521
