Select Cable

  1. Place transaxle side shift lever in Neutral. This will also place transaxle side select lever in Neutral. See Fig 1 .
  2. Loosen selector cable adjuster nuts (inside of vehicle). See Fig 2 . With select lever in Neutral, adjust select cable end until eye fits easily over select lever pin. Tighten adjuster nuts.

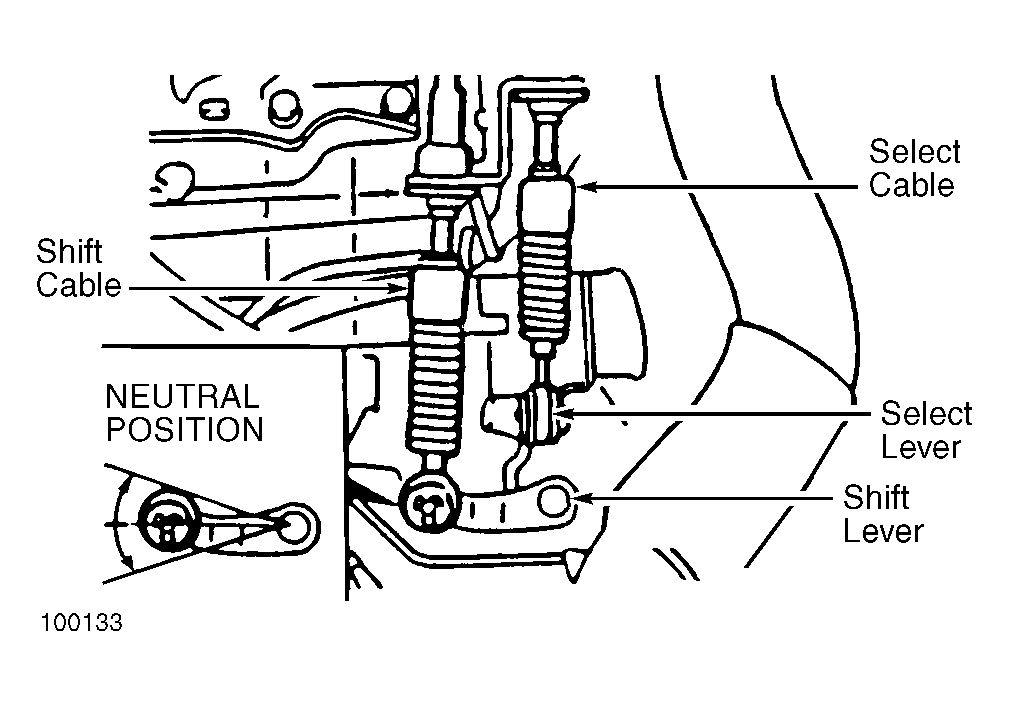

Fig 1: Transaxle Control Cables (Typical)
G100133Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

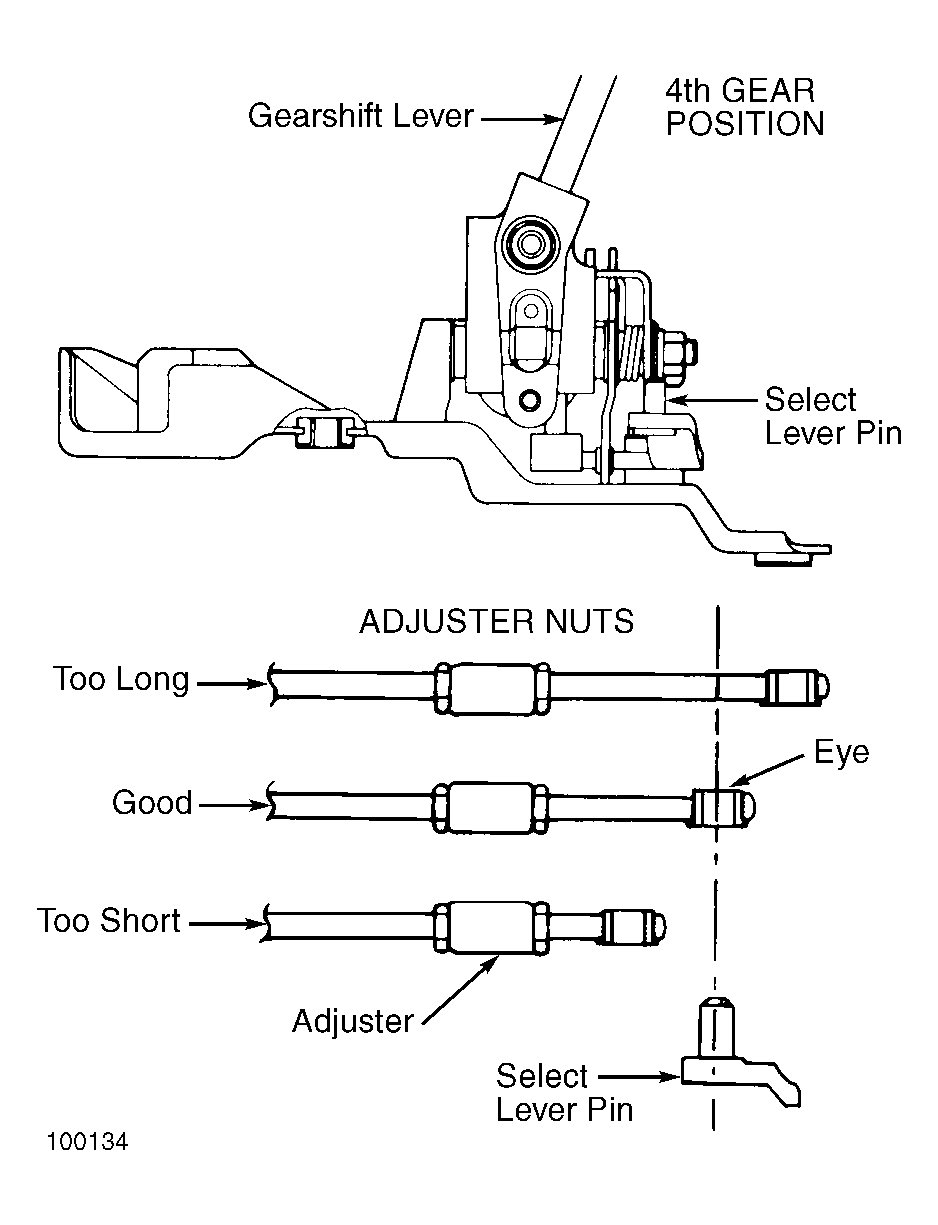

Fig 2: Adjusting Select Cable (Typical)
G100134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
