Dr-20: No-Fault Code, DRB-II Switches Not Running Test

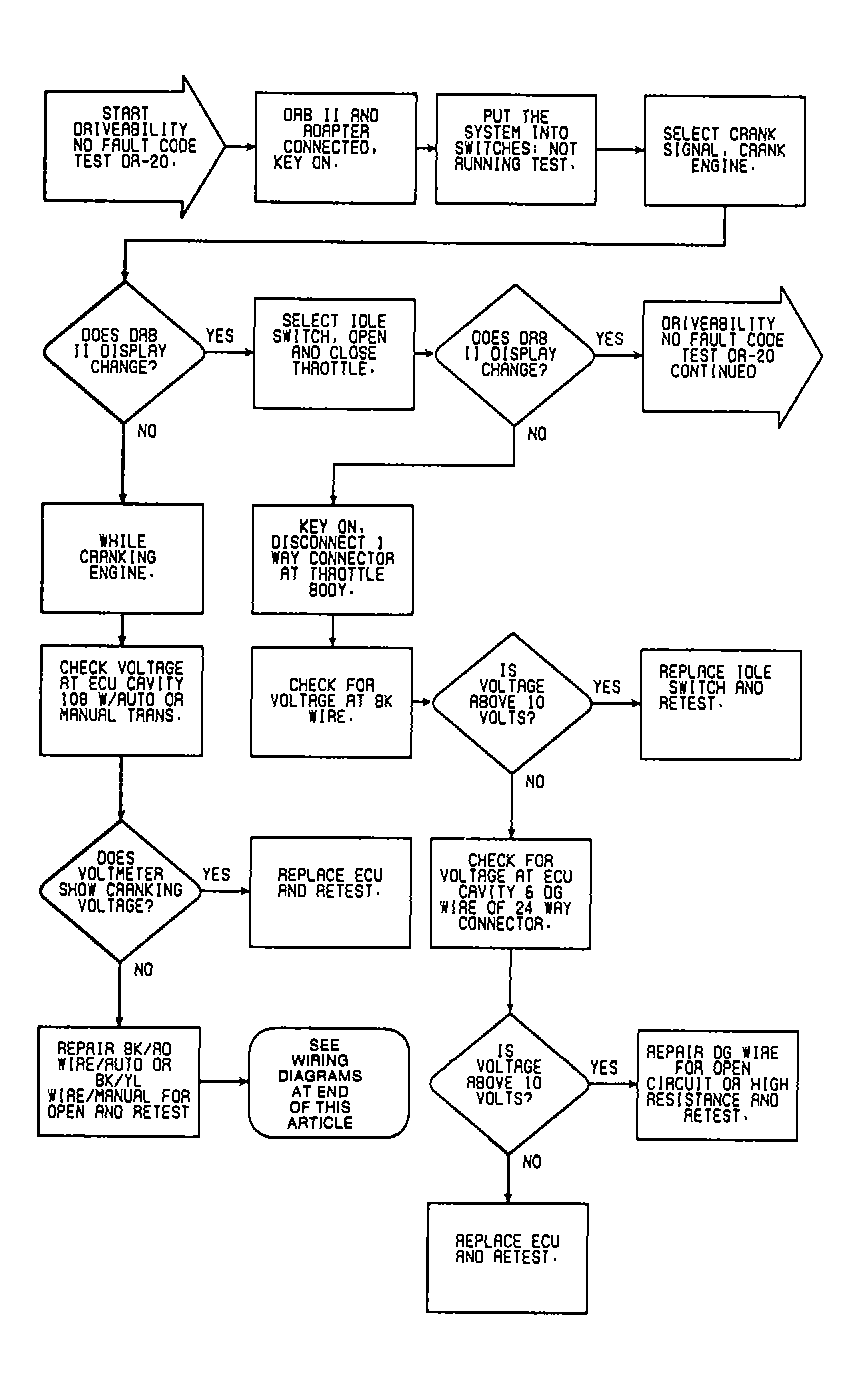

Fig 1: DR-20 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

G90A12708

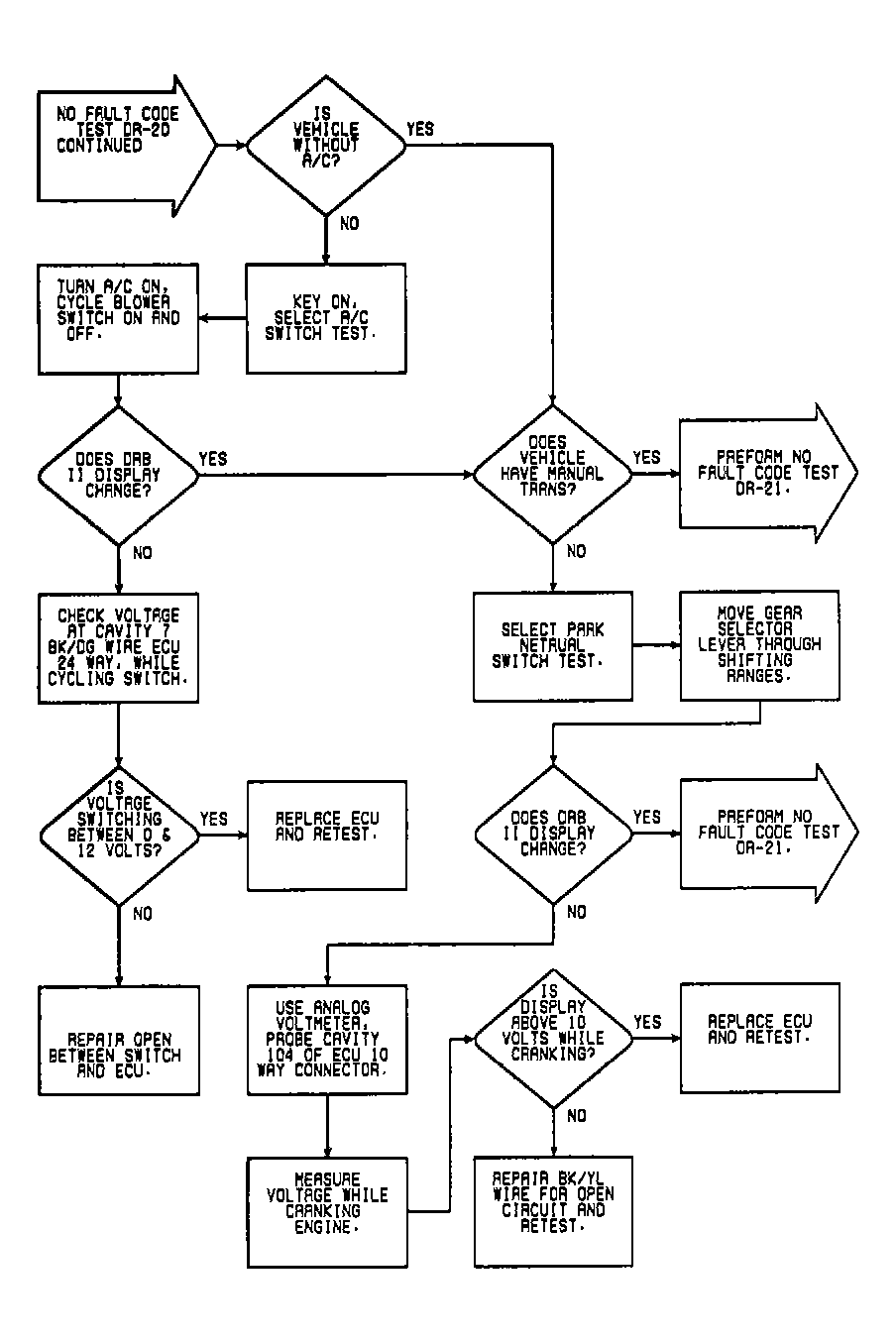

Fig 2: DR-20 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

G90B12709
