Eagle
>>
1990
>>
Summit Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Door Locks
>>
Wiring Diagrams
Wiring Diagrams

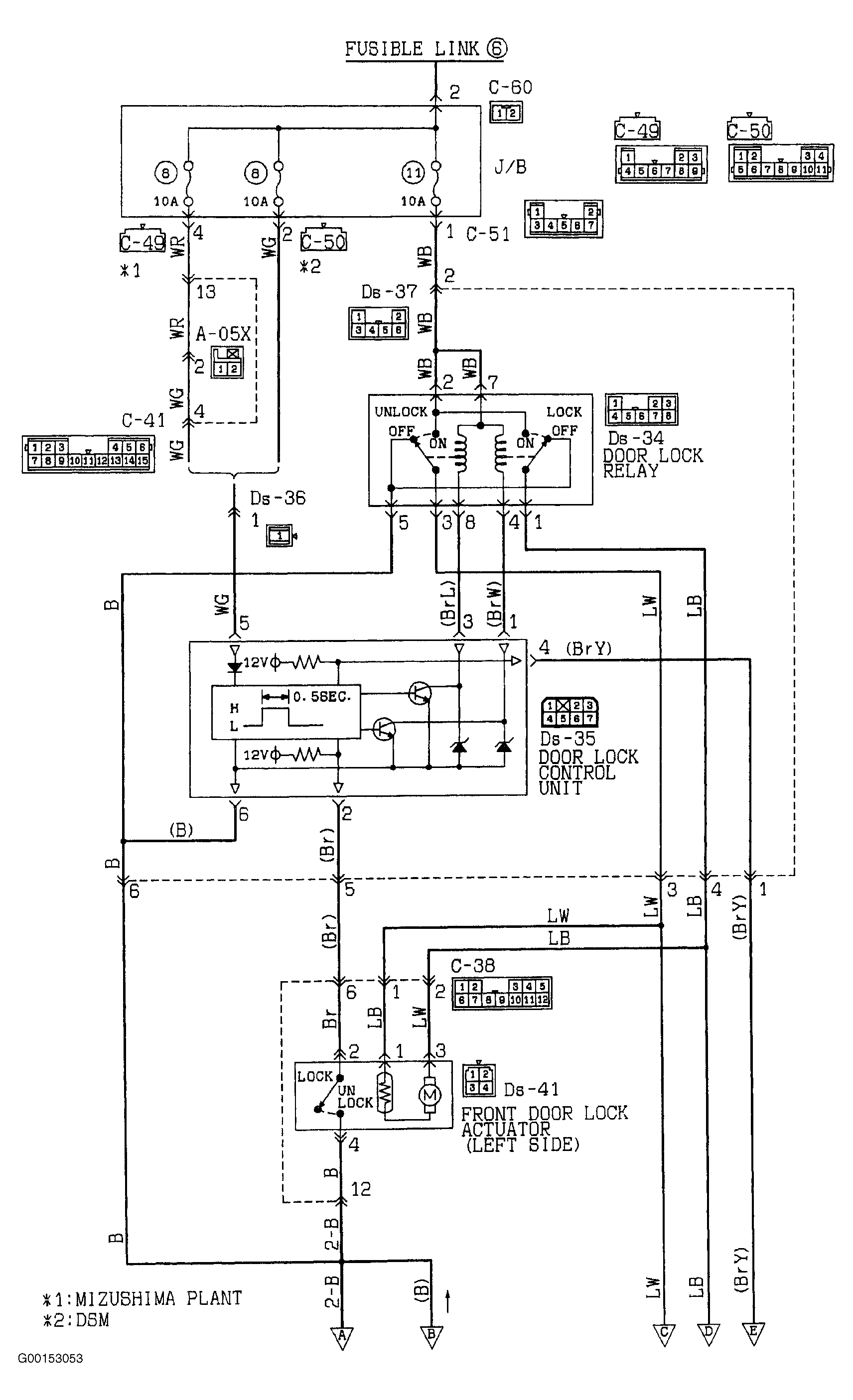

Fig 1: Central Door Locking System Wiring Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

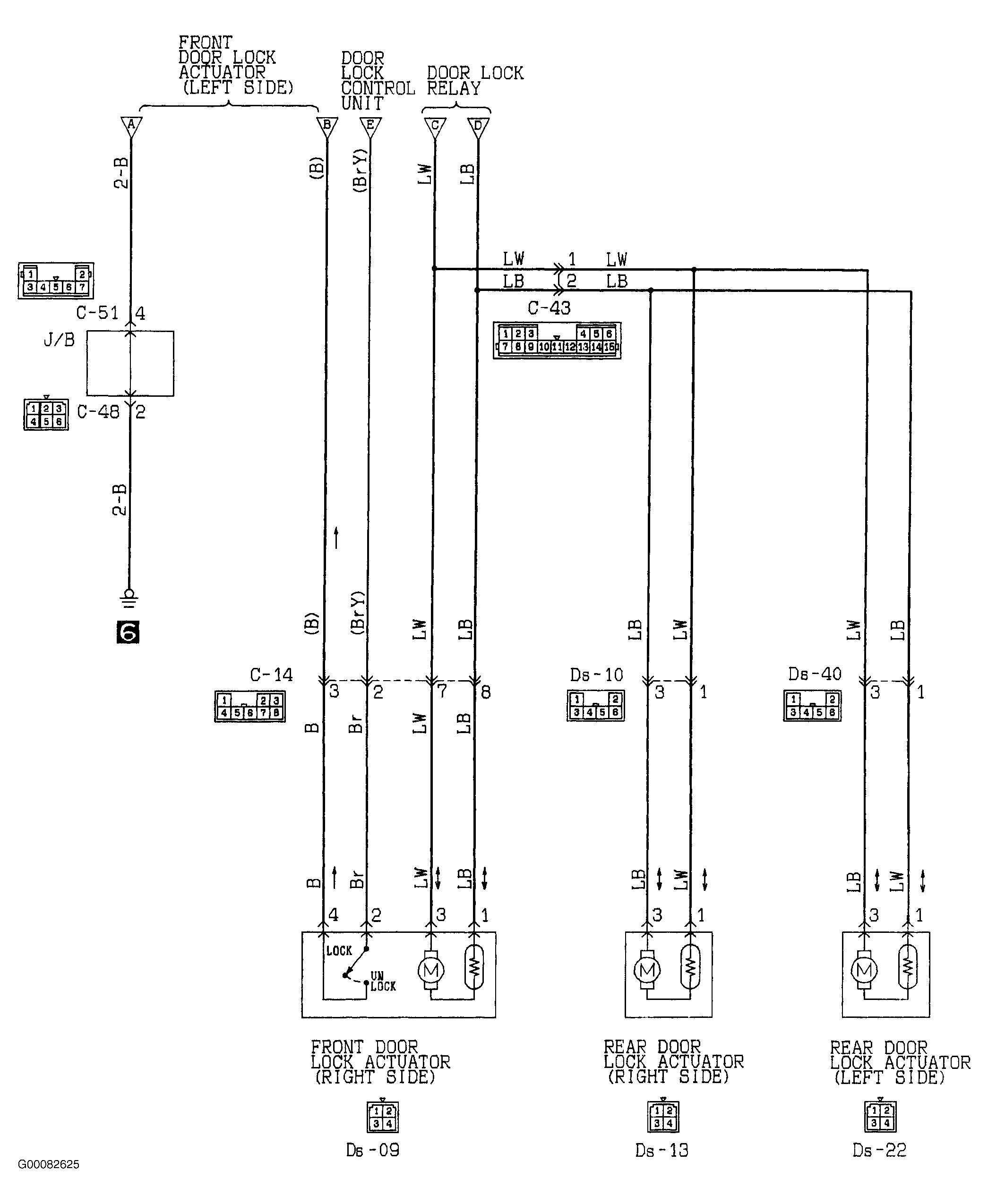

Fig 2: Central Door Locking System Wiring Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
