Control Unit Power Supply

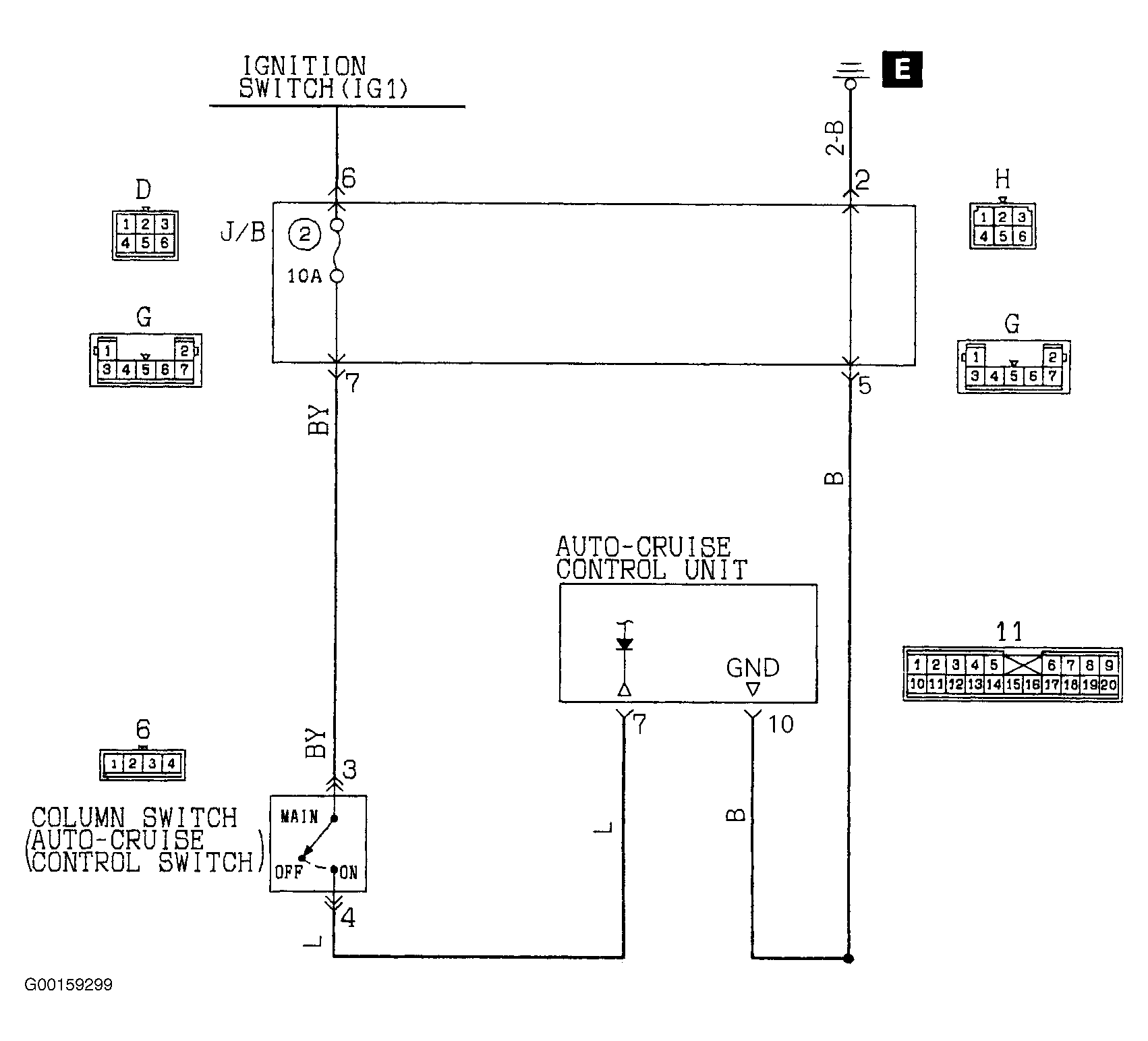

When the "MAIN" switch (of the Auto-Cruise Control's switches) is switched on while the ignition switch is on, current flows to the ignition switch (IG1), to fuse No. (2) of the ignition block, the auto-cruise control switch, the control unit, the junction block and to ground. See Fig 1 .
