Points Of Installation

Steps 4 & 3: Installing Seat Mounting Nuts & Bolts

After checking that the seat adjuster is locked at both sides, provisionally tighten (in A, B, C, D order) the seat installation nuts and the seat installation bolts; then fully tighten to specified torque. See TORQUE SPECIFICATIONS . See Fig 1 .

Step 1: Installing Seat Anchor Covers

Securely install the front side seat anchor forward tab to the front seat forward installation bracket. See Fig 2 . Turn the set anchor cover in the direction indicated by the arrow, and install the tab at the side part to the hole in the bracket side part. Securely install the rear side seat anchor cover (outer side) rearward tab to the front seat bracket (outer side). See Fig 3 . Turn the seat anchor cover in the direction indicated by the arrow and insert the side tabs into the holes in the front seat bracket side part.

Fig 1: Installing Seat Mounting Nut & Seat Mounting Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

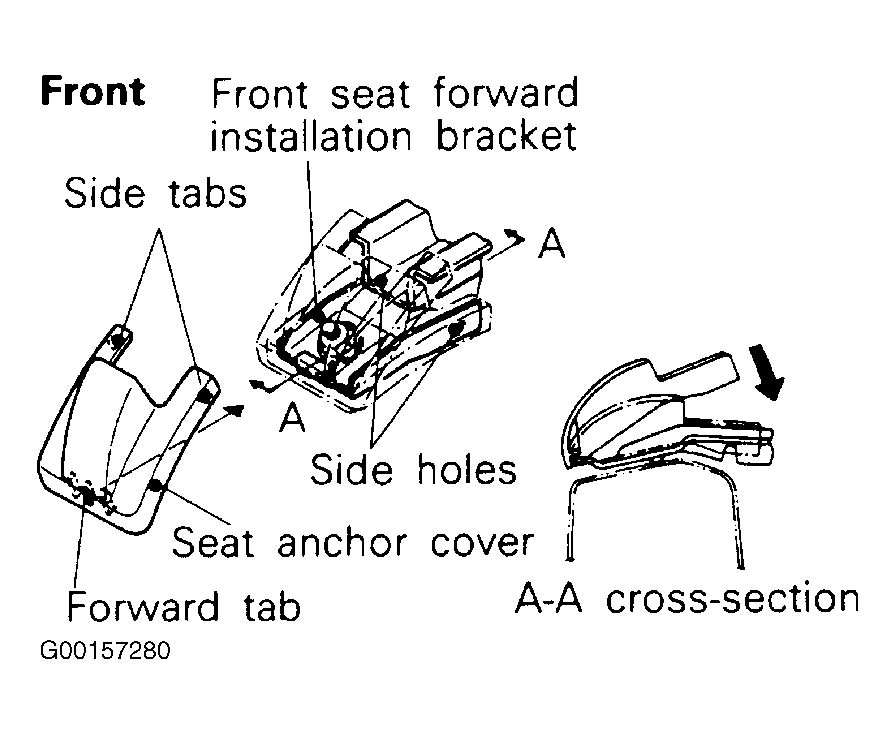

Fig 2: Installation Of Front Seat Anchor Covers

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

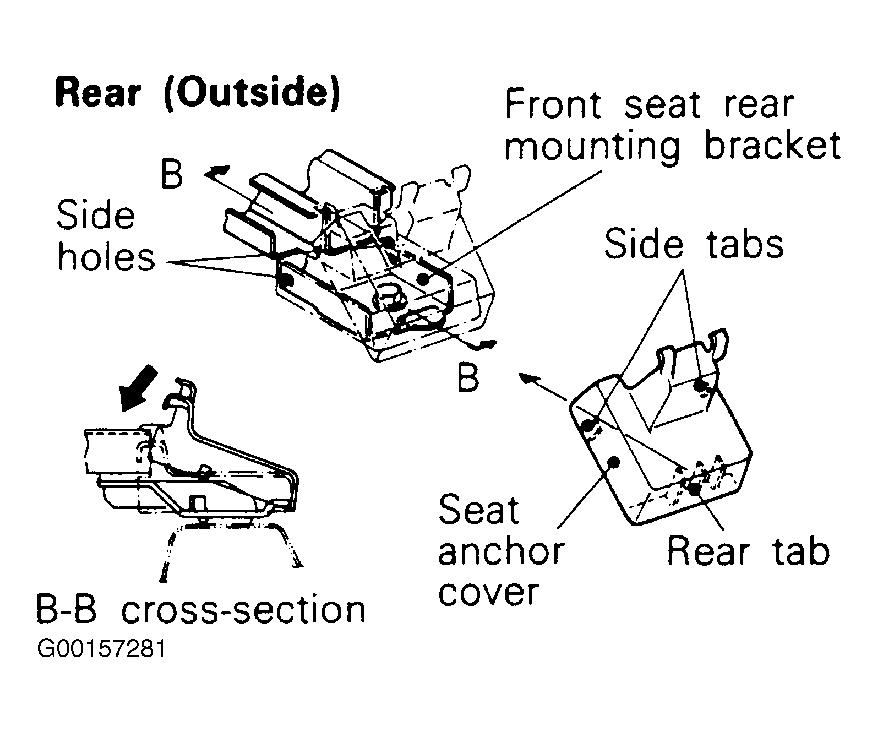

Fig 3: Installation Of Rear (Outside) Seat Anchors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
