Eagle
>>
1990
>>
Summit Base, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Passive Restraint Systems
>>
Component Tests
>>
Automatic Seat Belt Motor Relay
Automatic Seat Belt Motor Relay

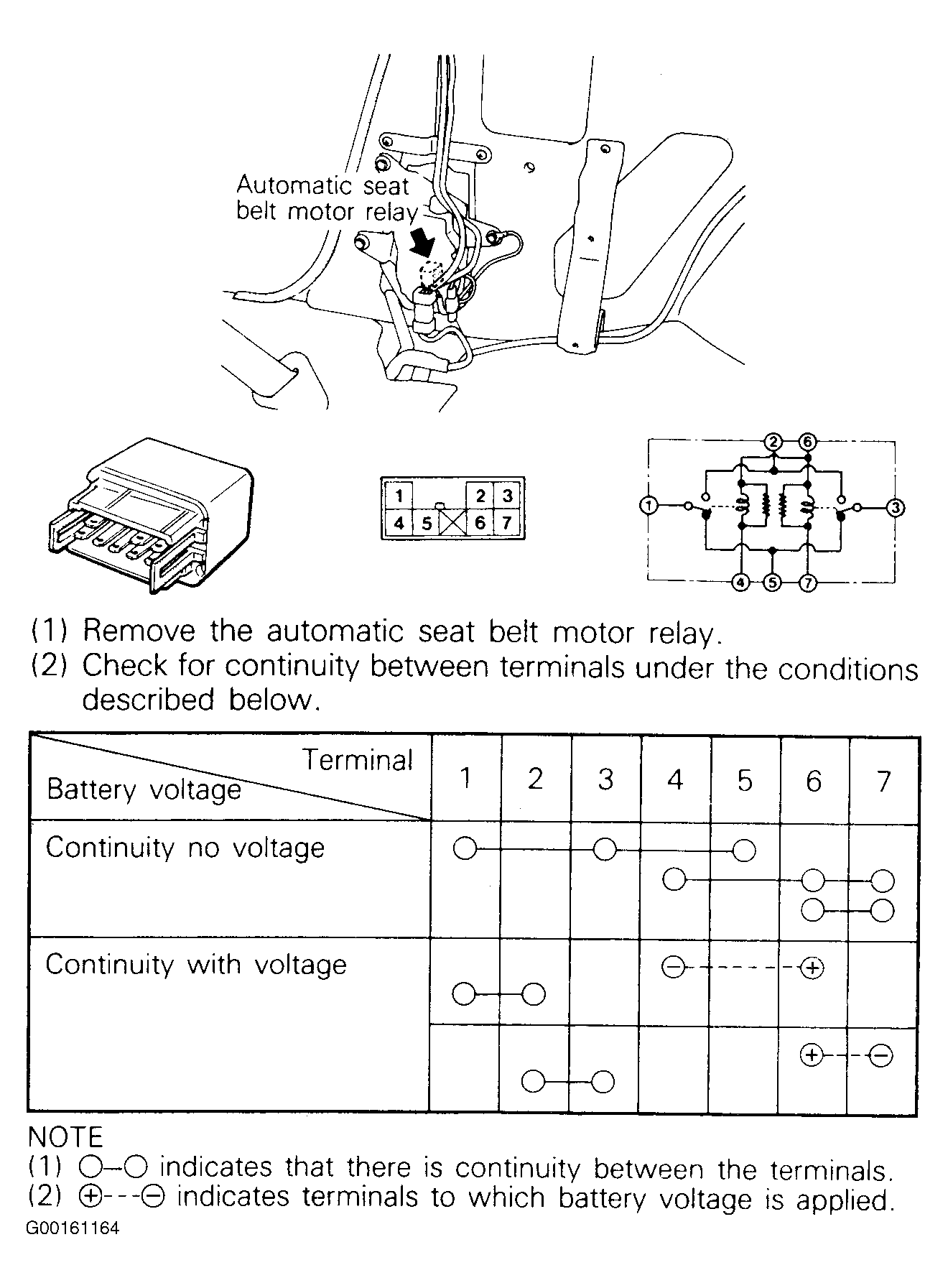

Fig 1: Testing Automatic Seat Belt Motor Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
