Home
>>
Eagle
>>
1990
>>
Summit Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Door Locks
>>
Component Tests
>>
Door Lock Power Relay
Door Lock Power Relay

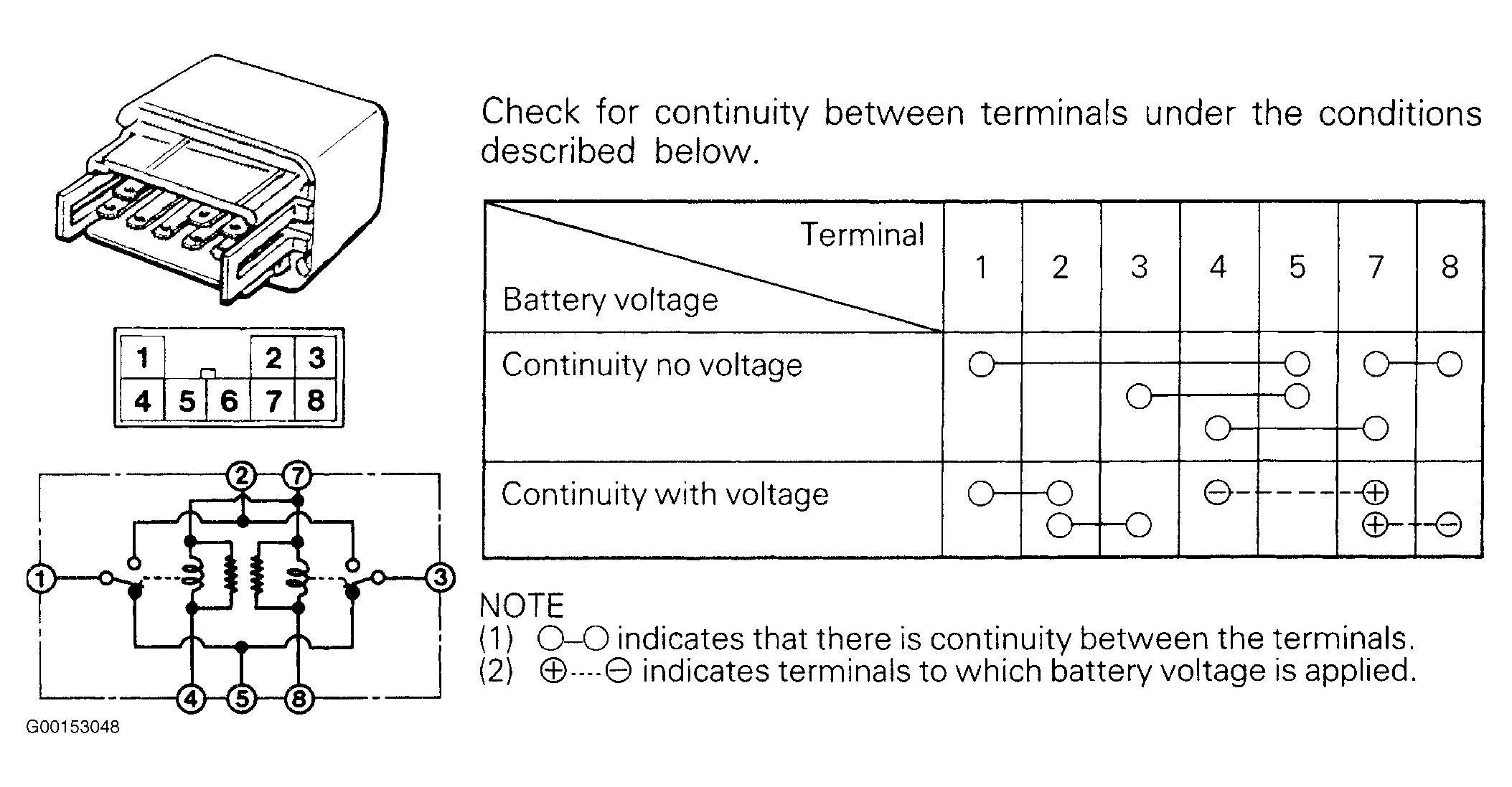

Fig 1: Testing Door Lock Power Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
