Power Window Sub-Switch

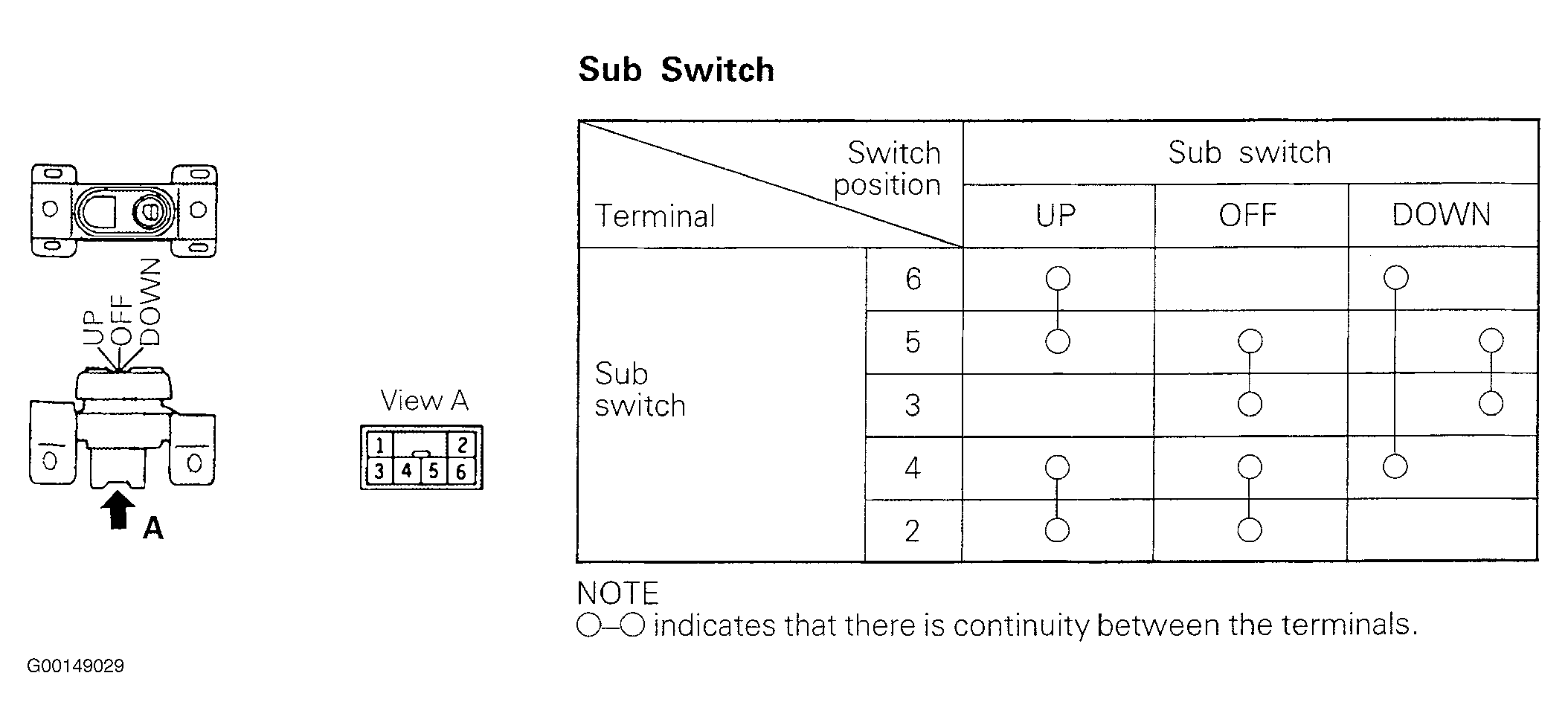

Fig 1: Power Window Sub-Switch Continuity Test

G00149029

Courtesy of DAIMLERCHRYSLER CORPORATION
