Home >> Eagle >> 1990 >> Summit Base, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Power Windows >> Component Tests (Hatchback) >> Power Window Relay

Power Window Relay

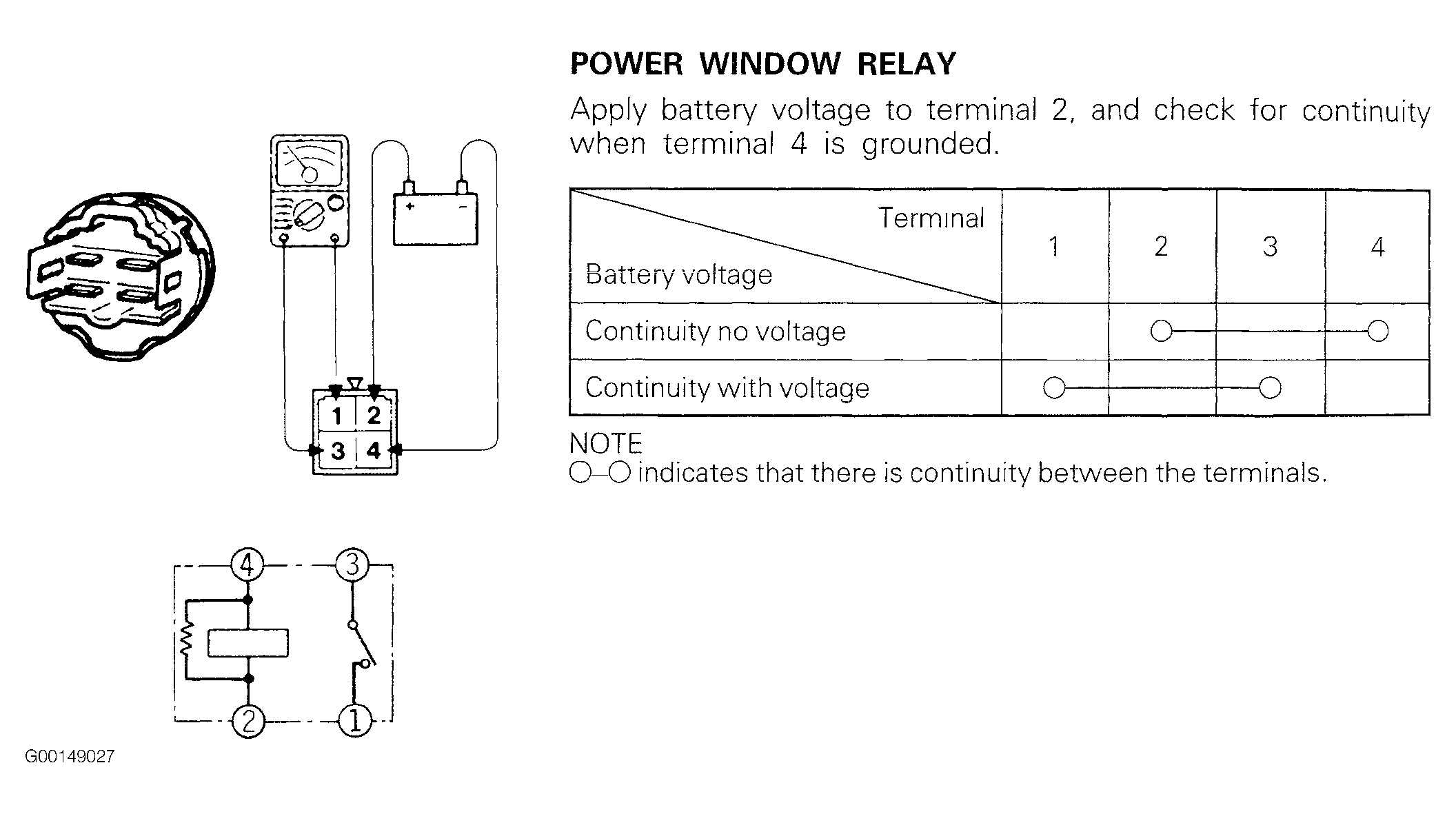

Fig 1: Power Window Relay Test

G00149027

Courtesy of DAIMLERCHRYSLER CORPORATION
