Auto-Cruise Control Switch

  1. Remove the knee protector (or lower panel assembly) and the column cover.
  2. Disconnect the column switch connector and check the continuity between the terminals. See Fig 1 .

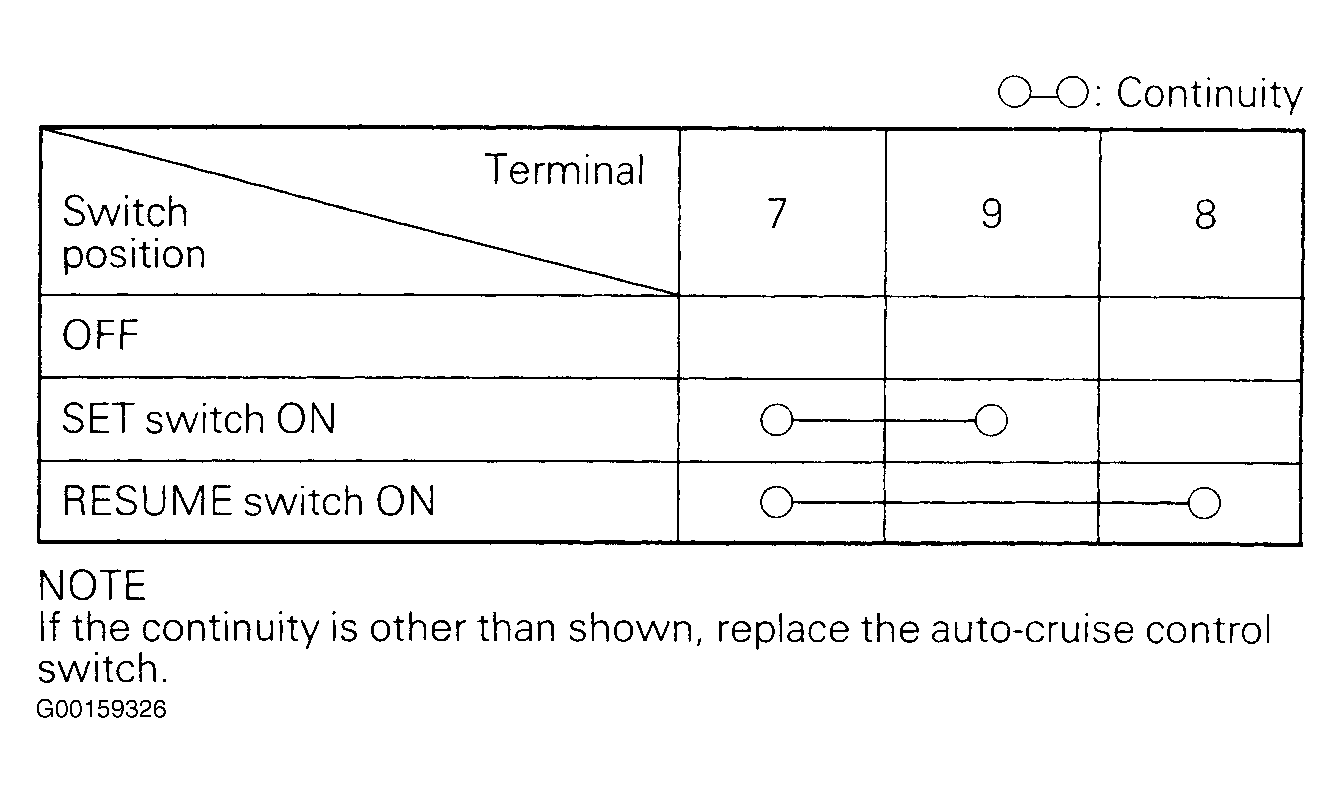

Fig 1: Checking Continuity Between Cruise Control Terminals
G00159326Courtesy of CHRYSLER CORP.
